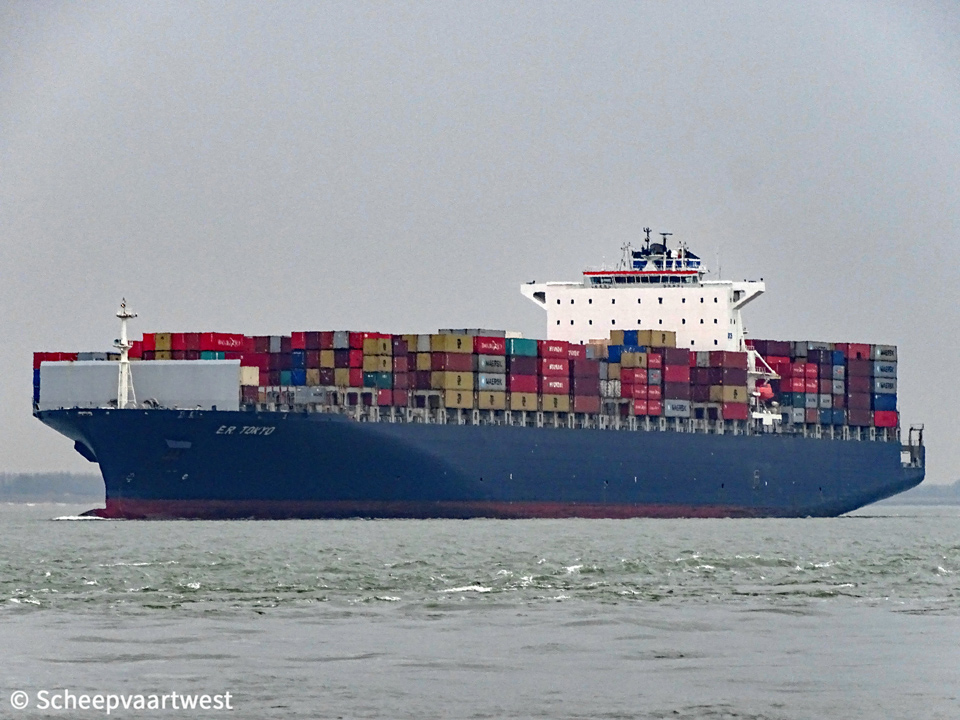

E.R. Tokyo 01

Westerschelde 04 March 2018

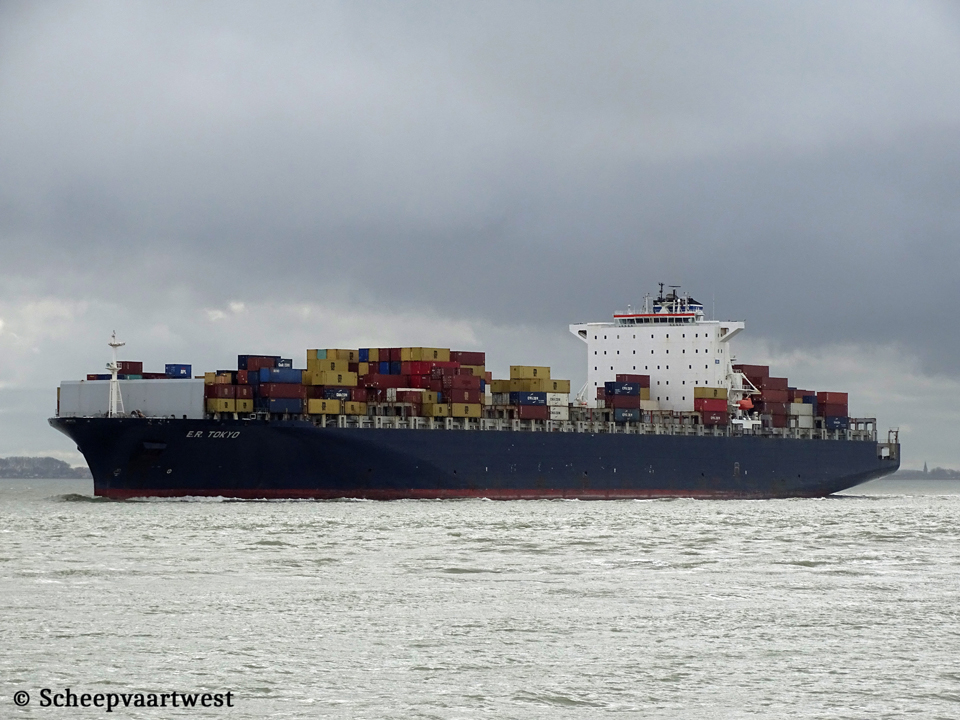

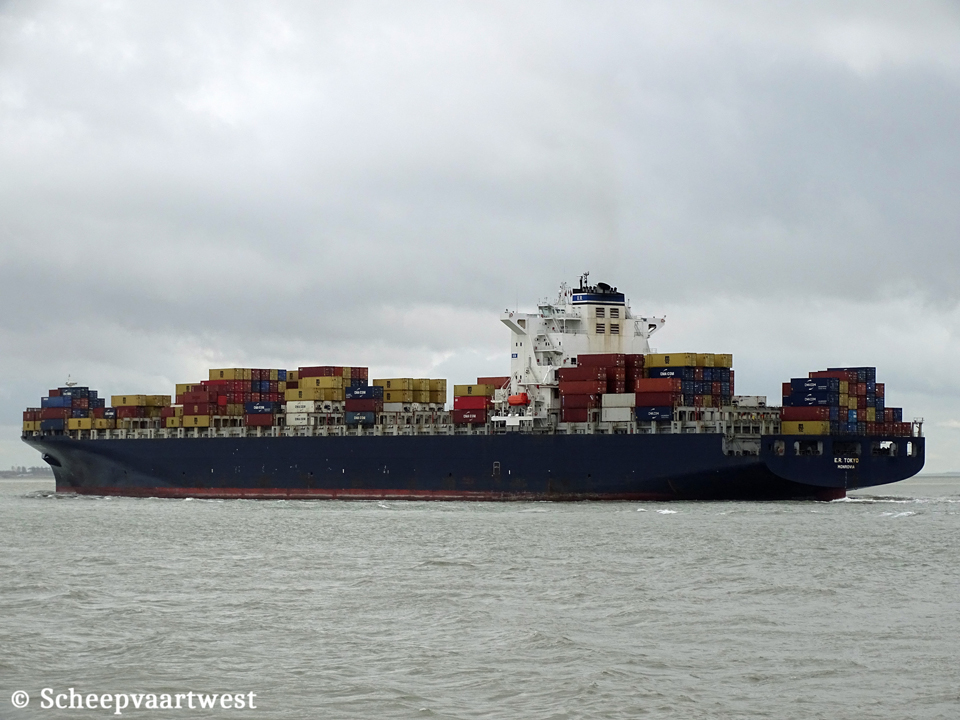

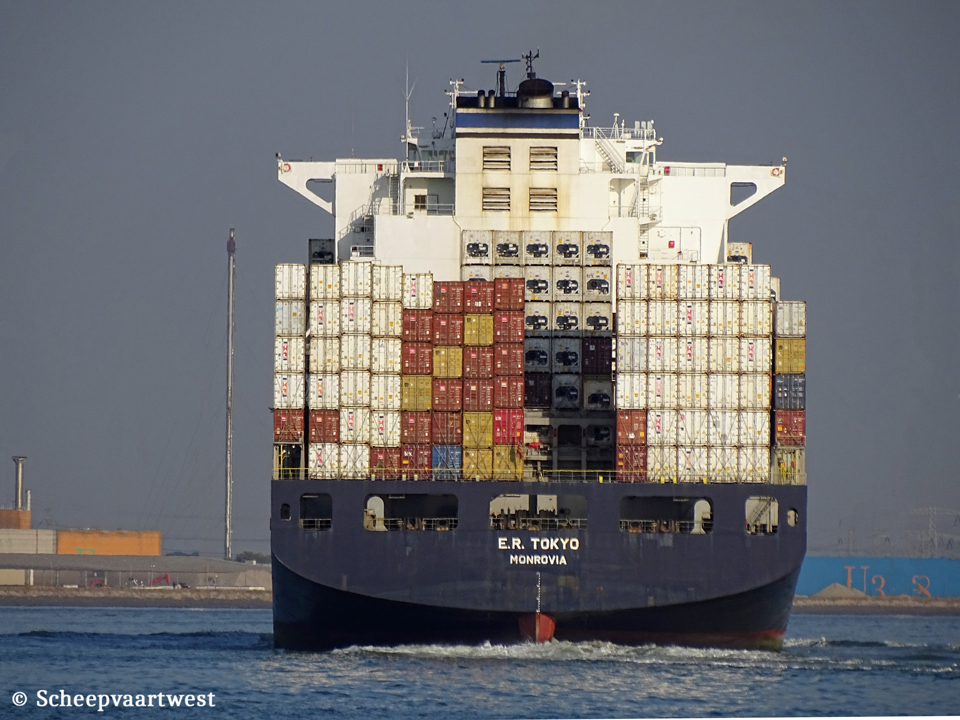

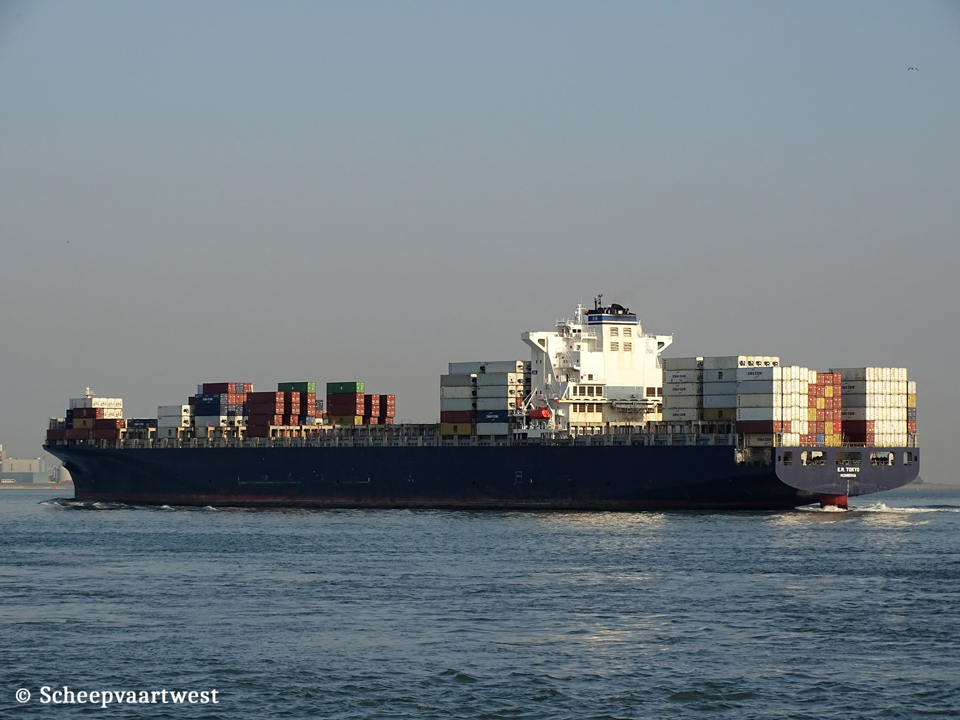

E.R. Tokyo IMO 9318046 02   E.R. Tokyo IMO 9318046 03   E.R. Tokyo IMO 9318046 04   E.R. Tokyo IMO 9318046 05
Westerschelde 11/03/20 Westerschelde 11/03/20   Westerschelde 22/09/20   Westerschelde 22/09/20


Name

E.R. TOKYO

Previous names

2006 - 09/2006 E.R. Tokyo

09/2006 - 06/2016 CMA CGM Carmen

Type

Cellular containership

IMO-number

9318046

Call sign

A8IE8

Flag

Liberia

Port of registry

Monrovia

GT

91.649 t

DWT

Summer: 100.680 t

NT

55.388 t

Number of 20ft containers

8.204

Container capacity 14t

6.090

Reefer capacity

700

Length

334,08 m overall

319,00 m between perpendiculars

320,94 m registered

Breadth

42,80 m extreme

Draught

Max: 14,67 m

Keel to mast end

61,60 m

Bridge

152,47 m

Forecastle

160,47 m

Freeboard

6.000 mm

Depth

20,14 m

Speed

Max: 25,4 knots

Built

2006

Keel laid

17/04/2006

Launch date

30/06/2006

Date of completion

07/09/2006

Builder

Hyundai Samho Heavy Industries Co., Ltd.

1700, Yongdang-ri, Samho-eup

Yeongam-gun, Cheollanam-do 526-701

Republic of Korea

Yard number

S264

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine 69.620 kW at 94,0 rpm

Built: 2006

Builder: Hyundai Heavy Industries Ulsan - South Korea

Propellers

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired

Max. working pressure: 10,0 bar

Heating surface: 42,17 m²

1x Steam boiler, exhaust gas heated

Max. working pressure: 10,0 bar

Heating surface: 677,0 m²

Built: 2006

Manufacturer: Aalborg Industries Ltd.

Electric installations

1x Plant 660 V - 16.287 kVA

1x Plant 450 V - 525 kVA

1x Plant 12 V - 92 Ah

1x Plant 24 V - 600 Ah

Generators

2x MAN-B&W 9L27/38 main diesel generatorsets each - 2.944 kW / 3.744 kVA

3x MAN-B&W 7L27/38 main diesel generatorsets each 2.310 kW / 2.933 kVA

Emergency generator

1x KTA19-D(M) diesel generatorset 525 kVA

Batteries

1x Battery for UPS radio 200 Ah

1x Battery for diesel control 92 Ah

Compressed air receivers

2x Receivers, each 16.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

1x Receiver 2.000 litres - 7,8 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

1x 2.500 kW forward

Tank capacities

Ballast: 25.244,5 m³

Anchor equipment

3x Anchors weight each 18.800 kg

Chain length: 742,50 m

Diameter: 107 mm

Cargo gear

Gearless

Crew

23

Manager

ZEABORN Ship Management GmbH & Cie. KG

Previous managers

2006 - 2008 E.R. Schiffahrt GmbH & Cie. KG

2008 - 2008 MS "E.R. TOKYO" Schiffahrtsges. mbH & Co. KG

2008 E.R. Schiffahrt Gmbh & Cie. KG

Owner

MS "E.R. TOKYO" Schiffahrtsges. mbH & Co. KG

Hohe Bleichen 12

20354 Hamburg

Federal Republic of Germany

Registered owner

E.R. Tokyo Schiffahrts

Previous owners

2006 - 2006 Nordcapital

2006 - 2008 Siebenunddreißigste "Katharinen" Schiffahrtsges. mbH & Co. KG MS "E.R. TOKYO

Renamed

2021 MSC Tokyo

Liberia, Moravia - Calls sign: A8IE8

Reg. owner: Tokyo Shipping and Trading Limited

Manager: MSC Shipmanagement Limited - Cyprus

Latest data adjustment

24 June 2022
