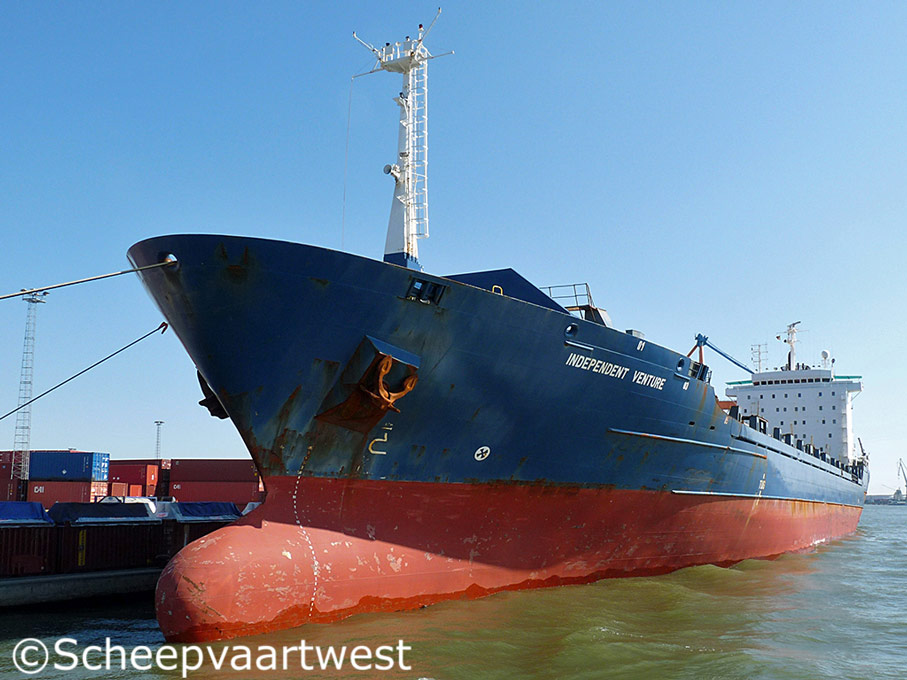

| Antwerpen 06 April 2010 |
|
Name |
INDEPENDENT VENTURE |
|
Previous names |
1993-1998 Nautique 1998-1999 Sea Voyager |
|
Type |
Cellular containership |
|
IMO-number |
9064762 |
|
Call sign |
A8CG2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
14.849 t |
|
DWT |
20.540 t |
|
NT |
7.642 t |
|
Number of 20ft containers |
1.468 |
|
Container capacity 14t |
1.014 |
|
Reefer capacity |
150 |
|
Length |
167,24 m overall 157,85 m registered |
|
Breadth |
25,00 m registered |
|
Draught |
Summer: 9,84 m |
|
Forecastle |
23,80 m |
|
Poop |
13,56 m |
|
Depth |
13,40 m moulded |
|
Speed |
Max.: 18,6 knots |
|
Built |
1993 |
|
Keel laid |
01.02.1993 |
|
Launch date |
11.06.1993 |
|
Date of completion |
27.10.1993 |
|
Builder |
Kvaerner Warnow Werft GmbH |
|
Yard number |
424 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 7 RTA 58 - 2 stroke single acting 7 cylinder 580 x 1.700 mm diesel engine - 11.130 kW at 127 rpm Year of manufacture: 1993 Manufacturer: Dieselmotorenwerk Rostock GmbH |
|
Propeller |
1x Solid propeller (keyless) - aft at 127 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 30,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 198,0 m² Year of manufacture: 1993 Manufacturer: Aalborg Industries A/S |
|
Electric installations |
1x Plant 440/220 V - 1.105 kVA 1x Plant 440/220 V - 1.105 kVA 1x Plant 440/220 V - 1.105 kVA 1x Plant 440 V - 1.250 kVA 1x Plant 440 V - 175 kVA |
|
Shaft generator |
1.000 kW / 1.250 kVA |
|
Generators |
3x MaK 6M20 main diesel generatorsets each 884 kW / 1.105 kW |
|
Emergency generator |
1x Diesel generatorset 175 kVA |
|
Compressed air receivers |
2x Receivers each 6.300 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 100 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 1x Receiver 750 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster ULSTEIN - 750 kW forward |
|
Cargo capacity |
Grain: 26.094 m³ |
|
Anchor Equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Ballast water |
5.533 m³ |
|
Crew size |
30 |
|
Manager |
Herm. Dauelsberg GmbH & Co. KG |
|
Operator |
Independent CL |
|
Owner |
Fünfte Beteiligungs-KG TIM Shipping mbH & Co. |
