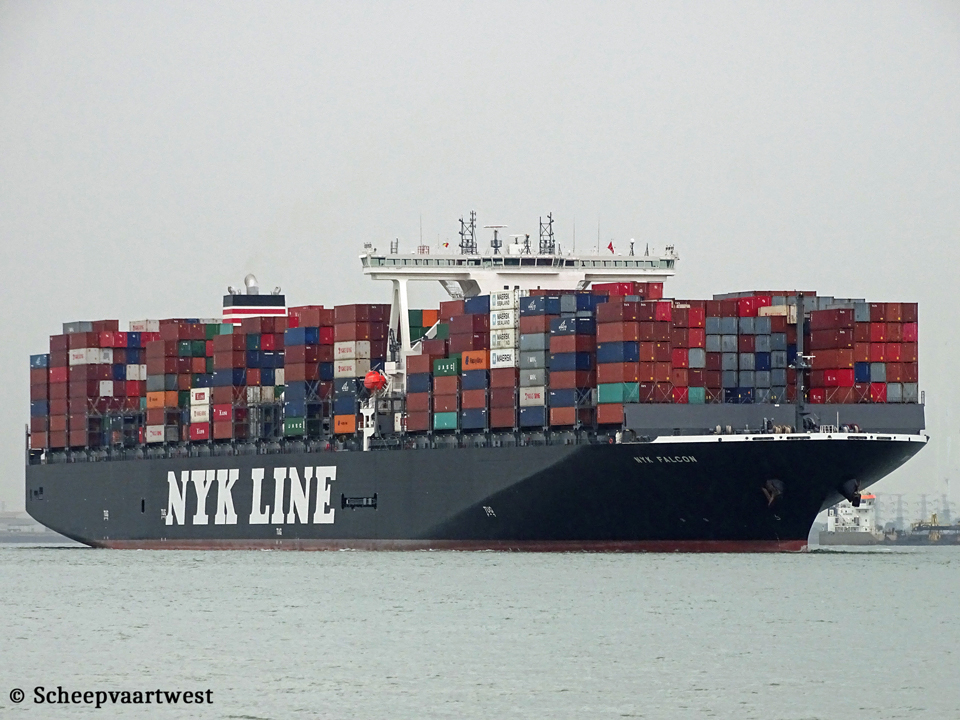

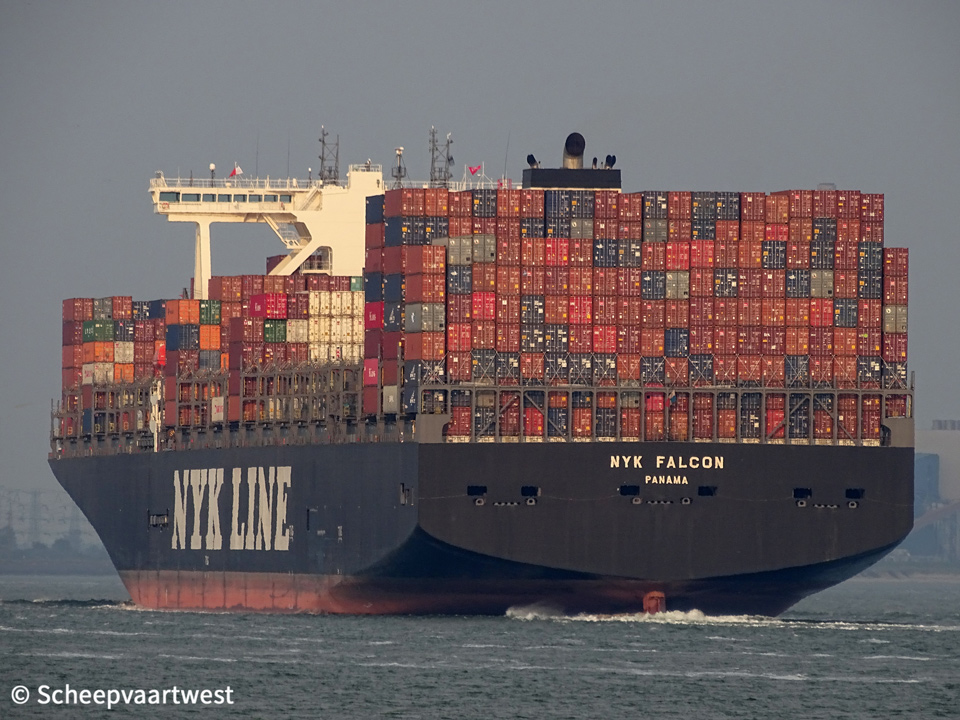

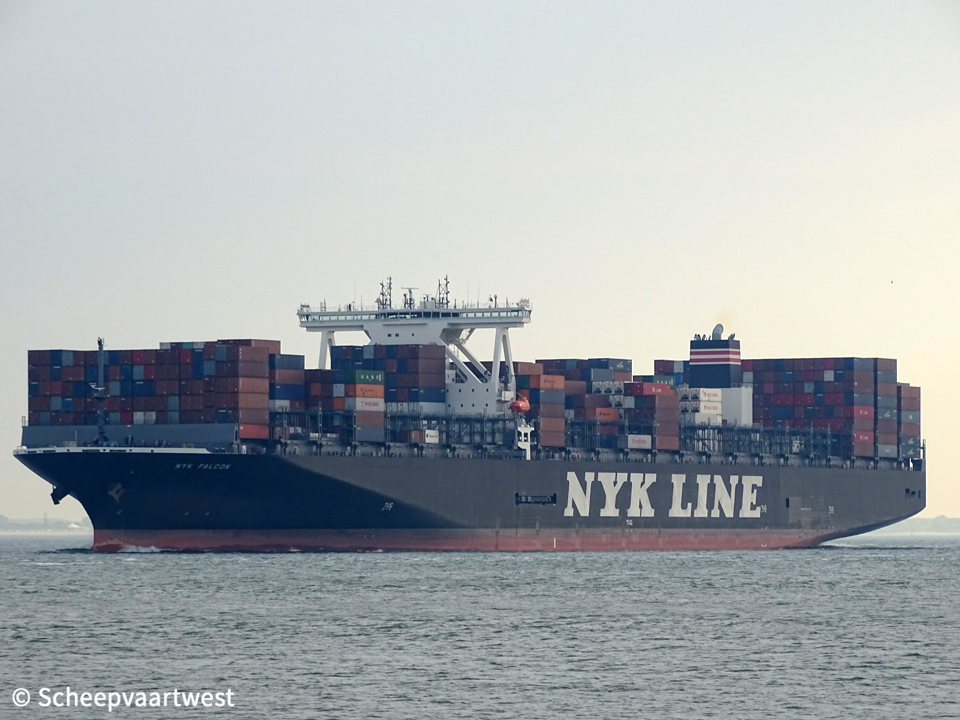

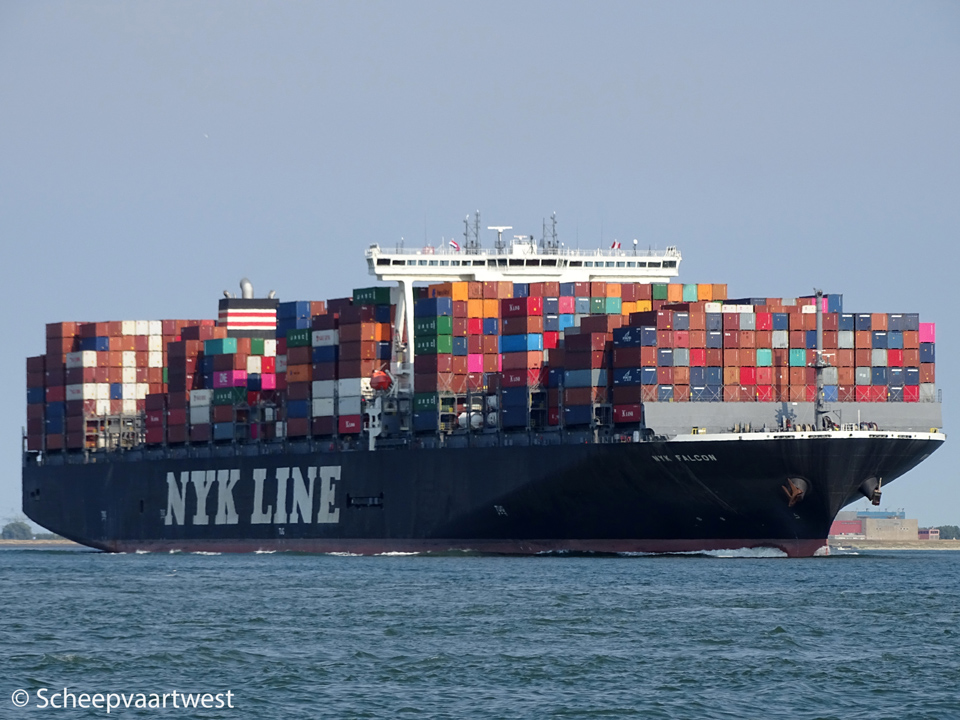

NYK Falcon 01

Westerschelde 01 August 2018



Name

NYK FALCON

Type

Cellular containership

IMO-number

9741425

Call sign

3FFH9

Flag

Republic of Panama

Port of registry

Panama City

GT

144.277 t registered

DWT

139.335 t

NT

82.126 t registered

Number of 20ft containers

14.026

Container capacity 14t

9.150

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m moulded

Draught

Summer: 15,79 m

Moulded L x B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

351,57 x 50,60 x 23,04 m

Freeboard

7.301 mm

Depth

23,04 m moulded

Speed

Max: 24,4 knots

Service: 21,0 knots

Built

2017

Keel laid

09/11/2015

Launch date

17/02/2017

Date of completion

26/06/2017

Builder

JMU - Japan Marine United Corporation, Kure Shipyard

Yard number

5076

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW / 57.348 hp at 74,6 rpm

Manufacturer: Diesel United, Ltd. Aioi Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1x Fixed pitch propeller aft at 74,6 rpm

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 5,70 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Main diesel generatorsets each 3.200 kW

Bow thruster

2x Each 1.800 kW / 2.447 bhp

Tank capacities

Fuel oil: 10.515,83 m³

Fresh water: 599,34 m³

Cargo gear

Gearless

Crew size

24

Manager

Nippon Yusen Kaisha

Operator

NYK Line
Yusen Building, 3-2
Marunouchi 2-chome, Chiyoda-ku
Tokyo, 100-0005
Japan

Registered owner

Quick Ship Holding SA
Panama City
Republic of Panama

Latest data adjustment

17 January 2019
