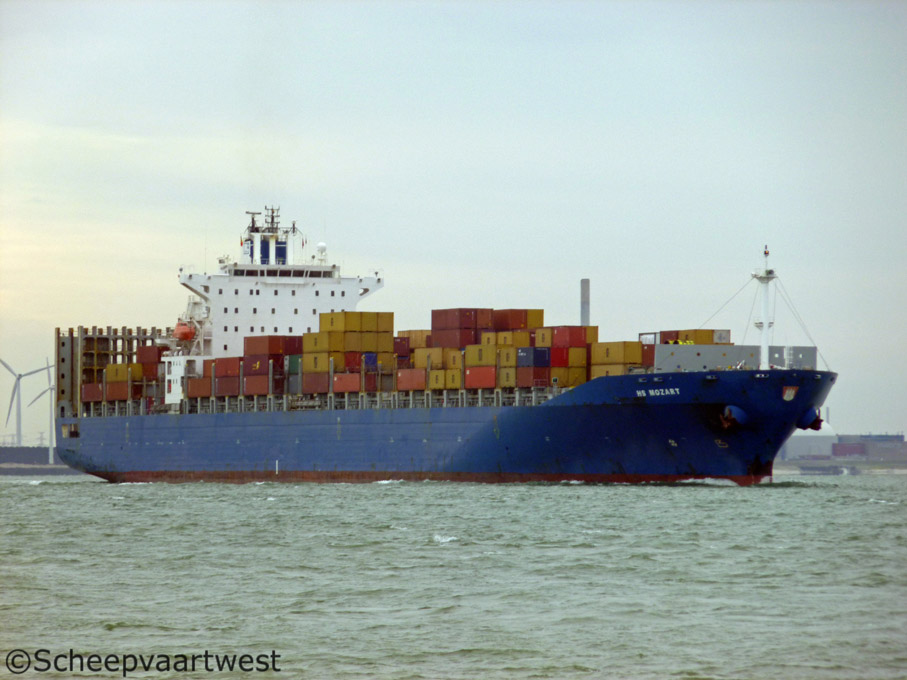

HS Mozart 01
Westerschelde 23 September 2012

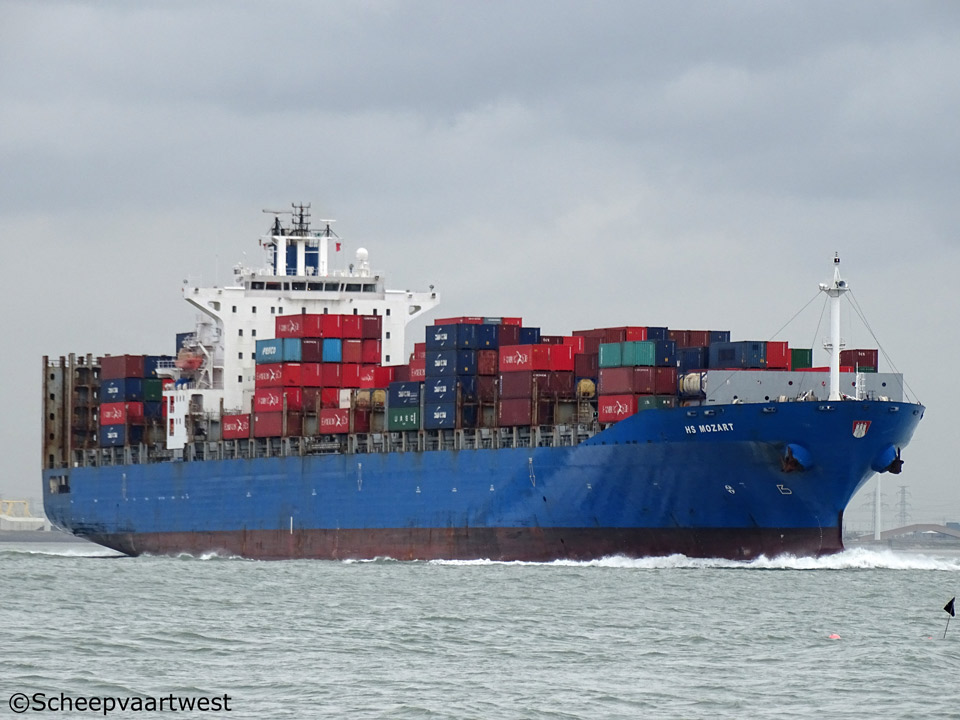

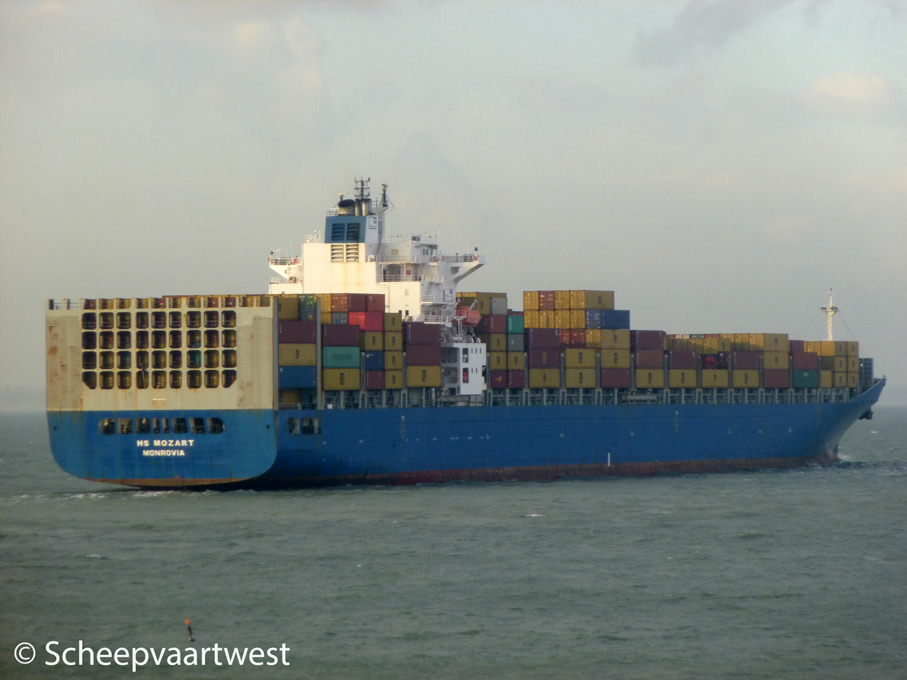

HS Mozart 02   HS Mozart 03
Westerschelde 14/10/12 Westerschelde 22/10/15



Name

HS MOZART

Previous names

2002-11.2002 HS Explorer

2002-11.2004 MSC Lausanne

2004-10.2009 APL Australia

Type

Cellular containership

IMO-number

9252254

Call sign

9HA3189

Flag

Malta

Port of registry

Valletta

Previous port of registry

Liberia, Monrovia - Call sign: A8FS8

GT

50.243 t

DWT

58.486 t

NT

27.530 t

Number of 20ft containers

4.350

Container capacity 14t

3.064

Reefer capacity

500

Length

282,12 m overall

266,42 m registered

Breadth

32,20 m registered

Draught

13,00 m

Freeboard

4.370 mm

Depth

21,50 m moulded

Speed

24,2 knots

Built

2002

Keel laid

22.04.2002

Launch date

27.07.2002

Date of completion

07.10.2002

Builder

Hanjin Heavy Industries Co., Ltd.
29, 5-Ka, Pongnae-dong Yongdo-gu
Busan 606-065
Republic of Korea

Yard number

N-107

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm diesel engine - 41.040 kW at 104,0 rpm

Year of manufacture: 2002

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 50,0 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 727,0 m²

Year of manufacture: 2002

Manufacturer: KangRim Industries Co., Ltd. (2nd Factory)
1515-11, Dadae-dong, Saha-gu
Busan
Republic of Korea

Electric installation

2x Plants each 440/220 V - 2.125 kVA

2x Plants each 440/220 V - 2.488 kVA

1x Plant 440 V - 250 kVA

1x Plant 24 V - 73 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Shaft generator

2x Main diesel generatorsets each 2.488 kVA

2x Main diesel generatorsets each 2.125 kVA

Generators

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 13.500 litres - 32,4 bar

1x Receiver 300 litres - 32,4 bar

4x Receivers each 60 litres - 9,7 bar

1x Receiver 20 litres - 9,7 bar

1x Receiver 200 litres - 7,7 bar

Bow thruster

1x Transverse thruster NAKASHIMA - 1.700 kW, forward

Tank capacities

Fuel: 6.057 m³

Ballast water: 17.106 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Chain length: 687,50 m

Handling gear

Gearless

Crew size

25

Manager

Hansa Shipping GmbH & Co. KG
An der Alster 9
20099 Hamburg
Federal Republic of Germany

Registered owner

Schiffahrts-Gesellschaft "HS MOZART" mbH & Co. KG
Ballindamm 17
20095 Hamburg
Federal Republic of Germany

Previous owner

HS Explorer Shipping Co. Ltd.
Monrovia

Liberia

Scrapped

10.2016

Latest data adjustment

21 July 2017
