Westerschelde 05 August 2018 |
 |
|
| Westerschelde 11/04/17 | |
|
Name |

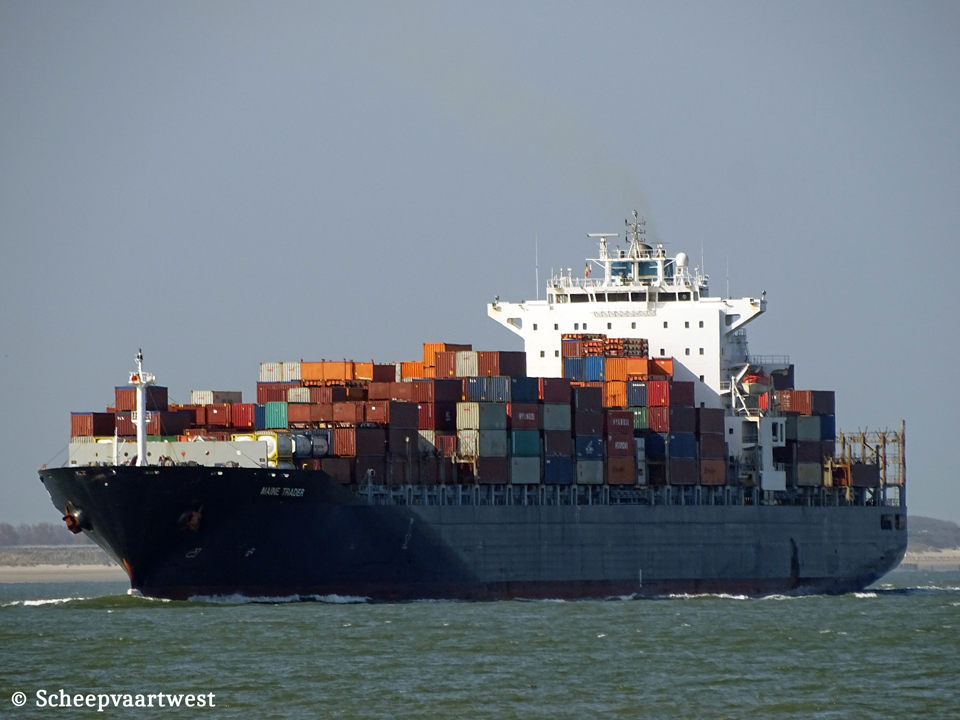

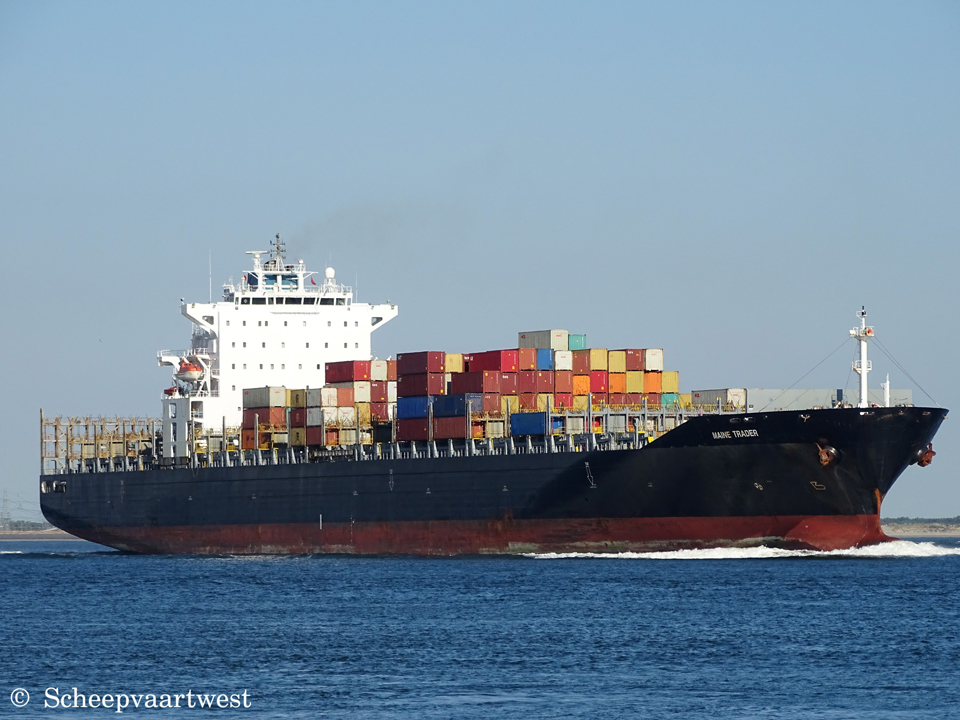

MAINE TRADER |
|
Previous names |
2004 - 07/2009 Maersk Dortmund 07/2009 - 11/2014 HS Humboldt |
|
Type |
Fully cellular container vessel - Gearless |
|
IMO-number |
9292151 |
|
Call sign |
9HZX7 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
54.271 t |
|
DWT |
Summer: 67.679,5 t |
|
NT |
31.250 t |
|
Number of 20ft containers |
On deck: 2.754 In hold: 2.238 Total: 4.992 |
|
Number of 40ft containers |
On deck: 1.341 + 72 TEU In hold: 1.080 + 78 TU Total: 2.421 + 150 TEU |
|
Container capacity 14t |
3.331 |
|
Reefer capacity |
On deck: 300 In hold: 100 Total: 400 |
|
Length |
294,09 m overall 283,00 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,20 m moulded |
|
Draught |
Max: 13,50 m |
|
Depth |
21,60 m |
|
Speed |
Max: 23,8 knots |
|
Built |
2004 |
|
Keel laid |
26/07/2004 |
|
Launch date |
25/09/2004 |
|
Date of completion |
25/11/2004 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Busan South Korea |
|
Yard number |
N-123 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 9K90 MC-C - 9 cylinder combustion engine 41.040 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
4x MAN 9L28/32H main diesel generatorsets each 1.790 kW |
|
Emergency generator |
1x DC12 40 diesel generatorset |
|
Bow thruster |
1x Ulstein TT2400 AUXD controllable pitch thruster 1.900 kW |
|
Tank capacities |
Ballast: 18.568 m³ |
|
Anchor equipment |
Length: 705,00 m Diameter: 90 mm |
|
Cargo gear |
Gearless |
|
Manager |
Columbia Shipmanagement (Deutschland) GmbH Große Elbstraße 275 22767 Hamburg Germany |
|
Registered owner |
MS "Maine Trader" GmbH & Co. KG |
|
Renamed |
2022 Moana Liberia, Monrovia - Call sign: 5LDK2 Owner: Moana Shipping Inc. Manager: Draco Buren Shipping Pte. Ltd. - Republic of Singapore |
|
Latest data adjustment |
06 June 2023 |
