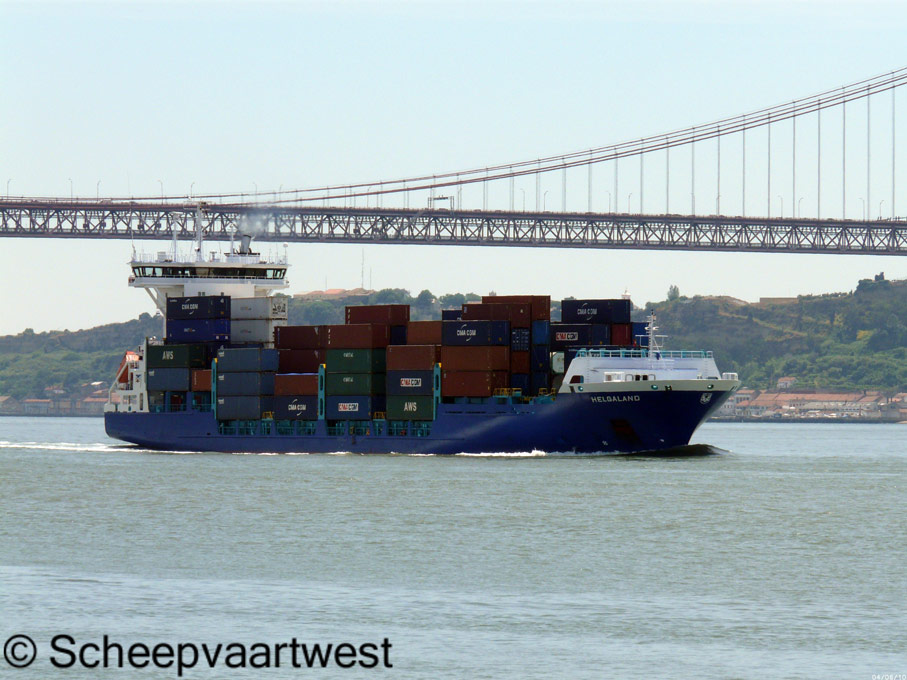

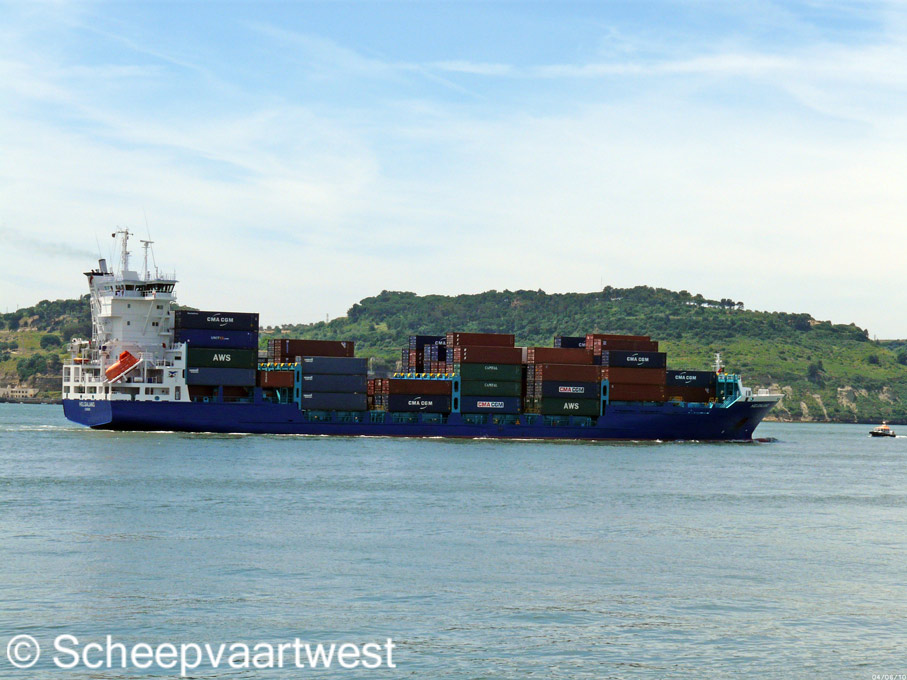

| Lisboa, Portugal 04 June 2010 |
 |
| Lisboa, Portugal 04/06/10 |
|
Name |
HELGALAND |
|
Previous names |
Helga |
|
Type |
Cellular containership |
|
IMO-number |
9277395 |
|
Official number |
20407 |
|
Call sign |
VQTM5 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
7.519 t |
|
DWT |
8.627 t |
|
NT |
3.570 t |
|
Number of 20ft containers |
822 |
|
Container capacity 14t |
507 |
|
Reefer point |
150 (50 under deck) |
|
Length |
137,50 m overall 126,42 m registered |
|
Breadth |
21,30 m registered |
|
Draught |
7,466 m |
|
Forecastle |
37,57 m |
|
Poop |
27,19 m |
|
Depth |
9,36 m moulded |
|
Speed |
Max.: 19,3 knots Service: 18,5 knots |
|
Built |
2003 |
|
Keel laid |
10.06.2002 |
|
Launch date |
27.01.2003 |
|
Date of completion |
22.05.2003 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1160 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 9 M 43 - 4 stroke single acting 9 cylinder 430 x610 mm diesel engine - 7.950 kW at 500 rpm Year of manufacture: 2003 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft at 137 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating Surface: 51,7 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating Surface: 212,0 m² Year of manufacture: 2002 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1x Plant 380/220 V - 1.250 kVA 1x Plant 380 V- 1.625 kVA 1x Plant 380 V - 290 kVA 1x Plant 24 V - 140 Ah 1x Plant 400 V - 16 kVA |
|
Shaft generator |
1x 1.625 kVA/ 1.220 kW |
|
Generators |
2x Caterpillar 3412 main diesel generatorsets each 625 kVA / 500 kW |
|
Emergency generator |
1x Diesel generatorset 290 kVA |
|
Batteries |
2x Batteries for start emergency engine each 140 Ah 1x Battery for start main engine 16 kVA |
|
Compressed air receivers |
2x Receivers each750 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster BRUNVOLL - 750 kW, forward |
|
Tank capacities |
Fuel oil: 778 m³ Water ballast: 3.735 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
H.H. Shipping GmbH & Co. KG |
|
Operator |
MAC Andrews |
|
Owner |
Petra Heinrich KG MS "HELGA" GmbH & Co. |
