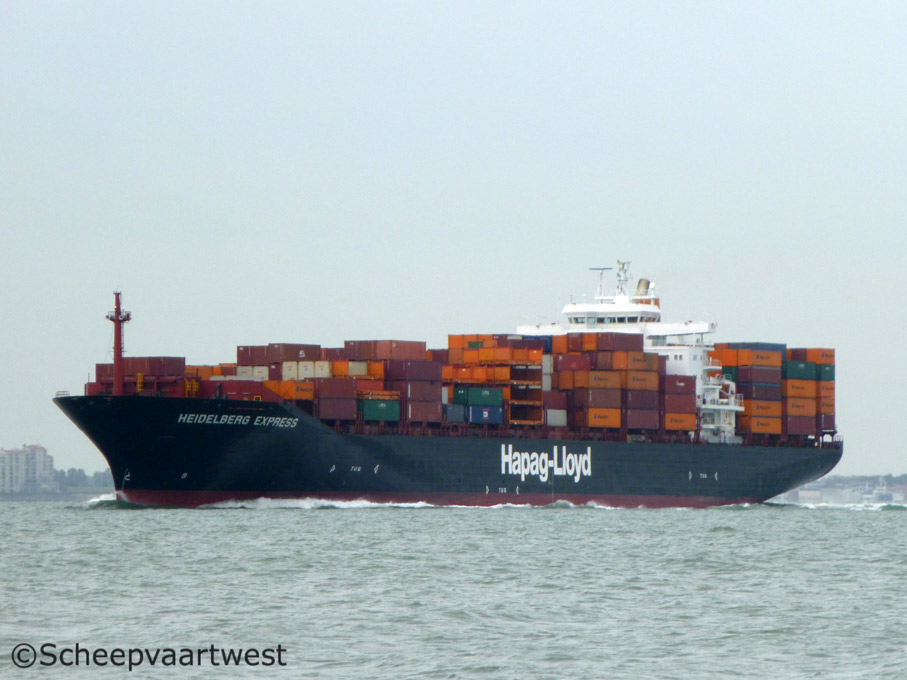

Heidelberg Express - IMO 8711370

Name

HEIDELBERG EXPRESS

Previous names

1989-1991 Ville De Verseau

Type

Cellular containership

IMO-number

8711370

Call sign

ZCEG5

Flag

Bermuda

Port of registry

Hamilton

GT

35.919 t

DWT

45.977 t

NT

15.910 t

Number of 20ft containers

2.803

Reefer capacity

238

Length

235,60 m overall

225,19 m registered

Breadth

32,20 m registered

Draught

12,50 m

Forecastle

15,05 m

Freeboard

3.010 mm

Depth

18,80 m moulded

Speed

21,0 knots

Built

1989

Ship lengthened: 04.1992

Keel laid

19.07.1988

Launch date

18.01.1989

Date of completion

05.1989

Builder

Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Yard number

236

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 8 L 80 MC - 2 stroke 8 cylinder 800 x 2.592 mm diesel engine - 24.800 kW at 90,0 rpm

Year of manufacture: 1994

Manufacturer: Howaldtswerke-Deutsche Werft AG Hamburg und Kiel
24124 Kiel
Federal Republic of Germany

Propellers

1x Solid propeller (keyless) - aft at 82,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 60,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 400,0 m²

Year of manufacture: 1988

Manufacturer: Howaldtswerke-Deutsche Werft GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installation

2x Plants each 450/220 V - 1.625 kVA

1x Plant450/220 V - 2.750 kVA

1x Plant 450 V - 313 kVA

Generators

2x Main diesel generatorsets each 1.625 kVA

1x Main diesel generatorset 2.750 kVA

Emergency generator

1x Diesel generatorset 313 kVA

Compressed air receivers

2x Receivers each 12.000 litres - 30,0 bar

1x Receiver 3.000 litres - 12,0 bar

Bow thruster

1x Fixed pitch propeller LIPS - 1500 kW, forward

Ballast water

15.599 m³

Anchor equipment

3x Anchors weight each 10.500 kg

Chain length: 660,00 m

Gear

Gearless

Manager

Anglo-Eastern Ship Management Ltd.
23rd Floor, CEF Life Tower 248, Queen's Road East
Wanchai
Hong Kong Special Administration Region of P.R. China

Operator

Hapag-Lloyd AG

Registered owner

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Scrapped

06.2015 Aliaga - Turkey

Sister ships

1989 Bonn Express
