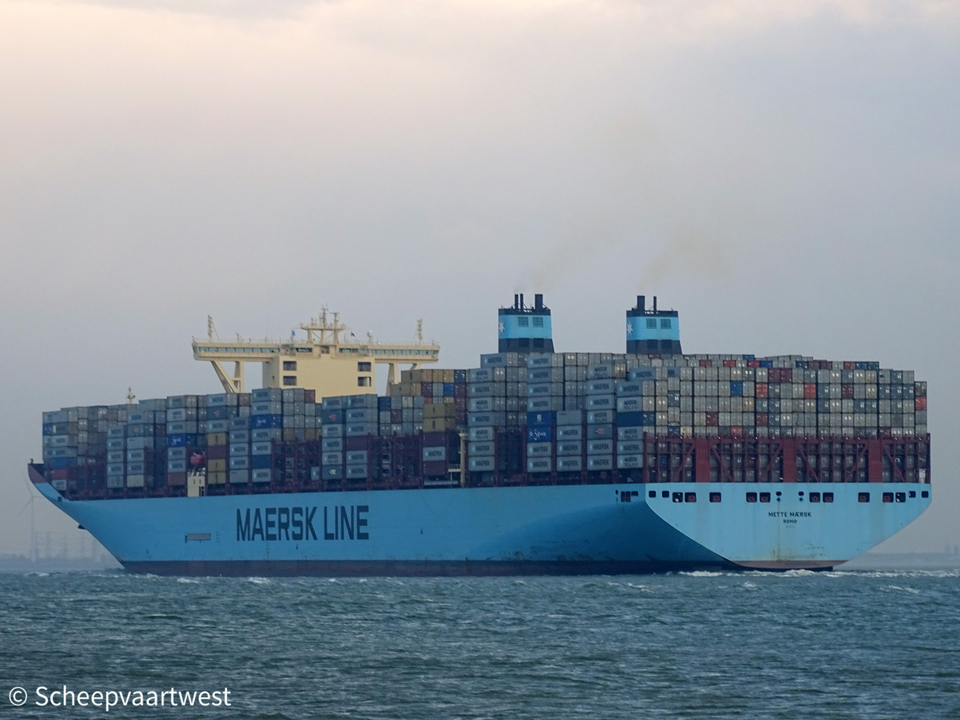

Mette Maersk 01

Westerschelde 28 March 2017



Name

METTE MAERSK

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9632155

Call sign

OWRS2

Flag

Denmark

Port of registry

Rømø

GT

194.849 t registered

Suez: 199.185,85 t

DWT

Summer: 196.000 t

NT

79.120 t registered

Suez: 174.365,66 t

Number of 20ft containers

18.270

Reefer capacity

1.800

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Max: 16,00 m

Freeboard

6.845 mm

Depth

30,30 m moulded

Speed

Max: 23,0 knots

Built

2015

Keel laid

27/06/2014

Launch date

16/01/2015

Delivery date

06/05/2015

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.
Okpo
South Korea

Yard number

4269

Hull material

High strength steel

Watertight bulkheads

16

Main engine

2x DOOSAN/MAN-B&W 7S80ME-C9.4 - 2 stroke 7 cylinder 800 x 3.450 mm combustion engines each 29.300 kW at 77,7 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

2x Fixed pitch propellers - 4 blades diameter 9,8 m

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

2x H.P. exhaust gas economizer Aalborg Mission WX-TG - 14,0 bar

2x L.P. exhaust gas economizer Aalborg Mission WX-TG. - 8,0 bar

2x G/E exhaust gas economizer Aalborg Mission XS TS7A - 12,5 bar

1x Auxiliary boiler - 9,0 bar - Aalborg Mission OS

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x 3.000 kW each

Manufacturer: Siemens AG I AC 222

Generators

2x MAN-B&W 6L32/40 main diesel generatorsets each 2.800 kW

1x MAN-B&W 9L32/40 main diesel generatorsets 4.300 kW

Manufacturer: HHI Electro Electric System

Emergency generator

1x Diesel generatorsets 500 kW

Turbo generator

1x 6.000 kW Brotherhood Combi Steam/Exh,Gas Turnine

Number of holds

11

Hold capacity

384.683 m³

Number of tanks

Ballast: 38

Lubricating oil: 15

Fuel oil: 11

Fresh water: 8

Waste water: 6

Diesel oil: 5

Sludge: 4

Chain: 2

Tank capacities 100%

Diesel Oil: 1.661,4 m³

Freshwater: 1.050,3 m³

Fuel Oil: 13.579,8 m³

Lube Oil: 588,6 m³

Tank Ballast: 63.173,2 m³

Lifting equipment

2x Engine room crane - SWL 10,0 t each

1x Monorail crane - SWL 12,5 t

1x Provision crane port - SWL 2,0 t

1x Provision crane starboard - SWL 5,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Manager

Maersk Line A/S
Esplanaden 50
Dk-1263 Copenhagen K
Denmark

Operator

Maersk Line A/S

Registered owner

Maersk Line A/S

Latest data adjustment

02 December 2018
