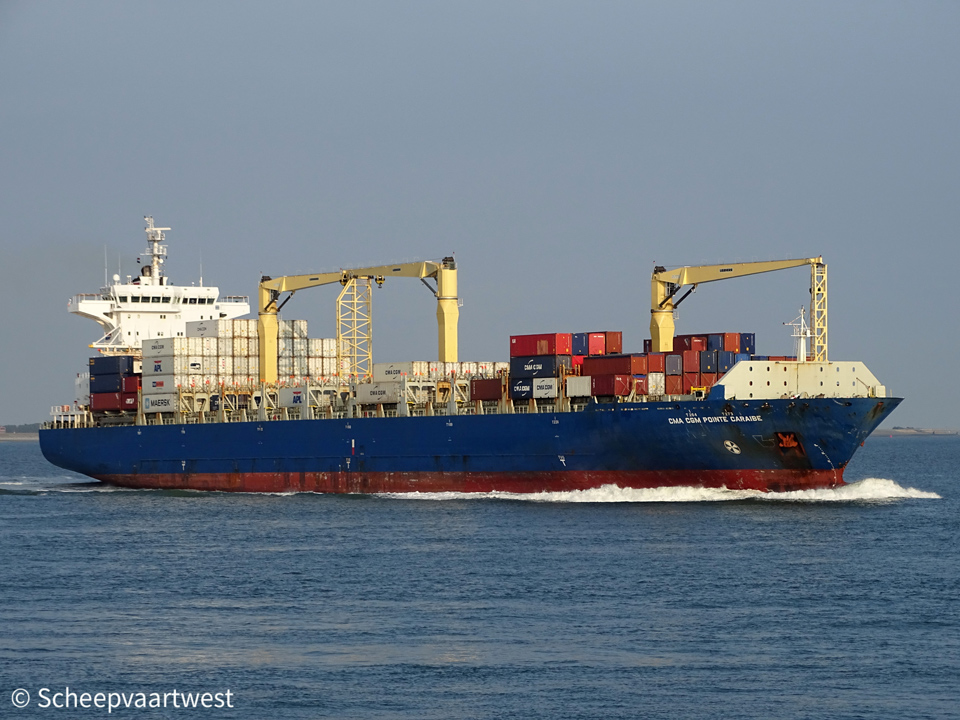

CMA CGM Pointe Caraibe 01

Westerschelde 22 August 2018



Name

CMA CGM POINTE CARAIBE

Previous names

2008 Launch as: Maersk Jambi

07/2008 - 09/2008 Austral

09/2008 - 07/2013 Maersk Jambi

07/2013 - 07/2018 Cap Ricarda

07/2018 - Austral

Type

Cellular containership

IMO-number

9399777

Call sign

A8PX6

Flag

Liberia

Port of registry

Monrovia

GT

32,901 t

DWT

Summer: 35.555,7 t

NT

13.452 t

Number of 20ft containers

2.872

Number of 40ft containers

1.372

Container capacity 14t

746

Length

225,73 m overall

212,50 m between perpendiculars

Breadth

31,23 m extreme

31,00 m moulded

Draught

12,20 m

Depth

19,70 m

Speed

Max.: 21,3 knots

Built

2008

Keel laid

08/05/2006

Launch date

21/05/2008

Date of completion

04/09/2008

Builder

Zhejiang YangFan Shipbuilding Co. Ltd.
China

Yard number

2051

Hull material

Steel

Main engine

1x MAN-B&W 7L70MC-C - 7 cylinder combustion engine 22.890 kW / 31.130 bhp

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, composite

Generators

4x Yanmar 6EY26L main diesel generatorsets each 1.712 kW

Emergency generator

1x Sisu diesel 645 DSBAG diesel generatorset 180 kW

Bow thruster

1x 1.300 kW

Tank capacities

Ballast: 14.26,4 m³

Anchor equipment

Length: 654,60 m

Diameter: 78 mm

Cargo gear

3x Cranes SWL 40,0 t each

Latest data adjustment

20 November 2018
