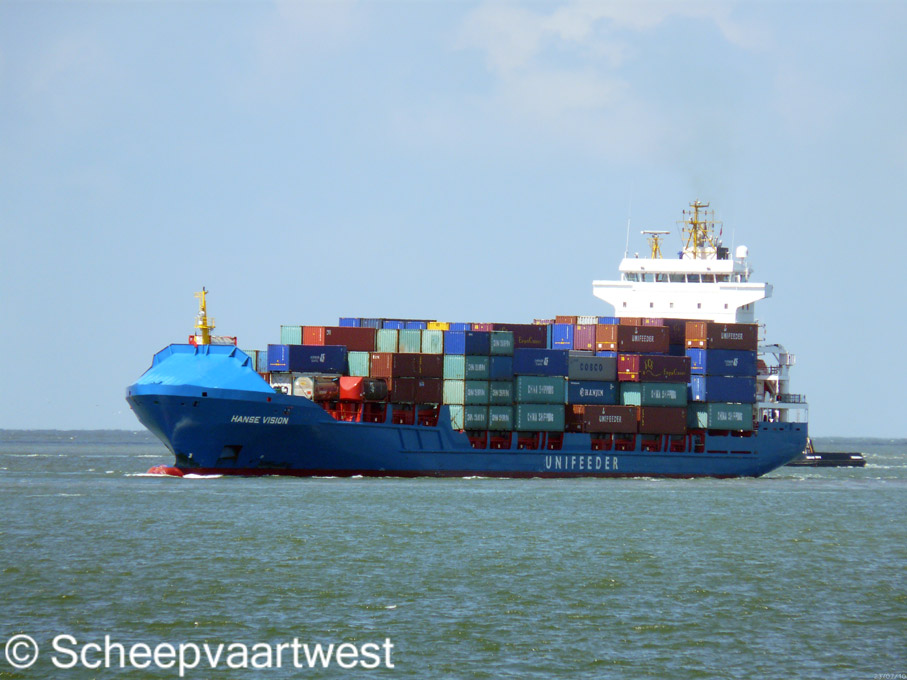

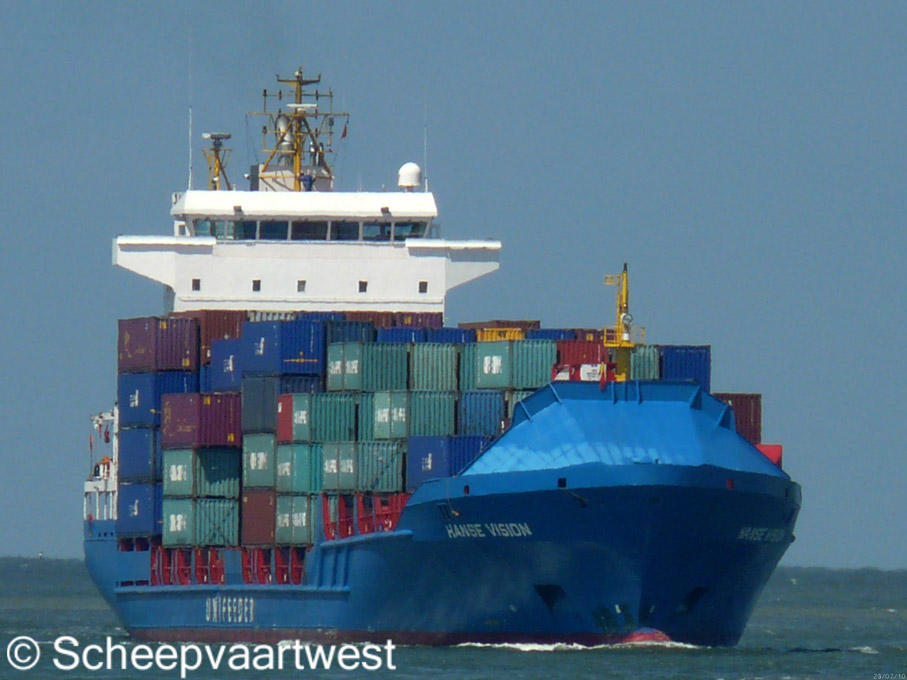

| Zeebrugge 23 July 2010 |
 |
 |
|
| Zeebrugge 23/07/10 | Zeebrugge 09/07/10 |
|
Name |
HANSE VISION |
|
Previous names |
Maasstroom |
|
Type |
Gearless cellular container vessel |
|
IMO-number |
9302243 |
|
Call sign |
C4WN2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
7.713 t |
|
DWT |
9.604 t |
|
NT |
3.785 t |
|
Number of 20ft containers |
On deck: 571 In hold: 238 Total: 809 |
|
Container capacity 14t |
529 |
|
Reefer capacity |
192 |
|
Length |
141,65 m overall 132,42 m registered |
|
Breadth |
20,85 m overall 20,60 m registered |
|
Draught |
Summer: 7,30 m |
|
Forecastle |
41,72 m |
|
Poop |
10,00 m |
|
Depth |
9,50 m moulded |
|
Speed |
19,0 knots |
|
Line |
Unifeeder |
|
Built |
2005 |
|
Keel laid |
12.09.2003 |
|
Launch date |
23.07.2004 |
|
Date of completion |
08.04.2005 |
|
Builder casco |
Aker Tulcea S.A. Yard number: 306 |
|
Builder completion |
HDA Shipbuilding Service BV Yard number: 225 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 8 L46D - 4 stroke single acting 8 cylinder 460 x 580 mm diesel engine - 9.240 kW at 500 rpm Year of manufacture: 2004 Manufacturer: Wärtsilä Finland Oy |
|
Propeller |
1x Controllable pitch propeller - aft at 158 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 90,15 m² Built: 2003 1x Thermal oil heater, oil fired - 10,0 bar Heating Surface: 28,4 m² Built 2004 Builder: Regiomat PSS GmbH |
|
Electric installations |
1x Plant 440/230 V - 1.480 kVA 1x Plant 440 V - 1.600 kVA 1x Plant 440 V - 195 kVA 1x Plant 24 V - 170 Ah 1x Plant 24 V - 215 Ah |
|
Shaft generator |
1.280 kW / 1.600 kVA |
|
Generators |
2x Main diesel generatorsets each 592 kW / 740 kVA |
|
Emergency engine |
1x MHI 6 D24TC diesel generatorset 156 kW / 195 kVA |
|
Batteries |
4x Batteries for UPS radio each 215 Ah 2x Batteries for UPS radio each 170 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 33,0 bar 1x Receiver 400 litres - 11,0 bar 1x Receiver 150 litres - 11,0 bar |
|
Bow thruster |
2x Transverse thruster each 750 kW, forward |
|
Number of holds |
3 |
|
Number of hatches |
3 |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Crew |
12 |
|
Manager |
Johs. Thode GmbH & Co. KG |
|
Operator |
Unifeeder |
|
Owner |
MS "HANSE VISION" Schiffahrtsges. mbH & Co. KG |
