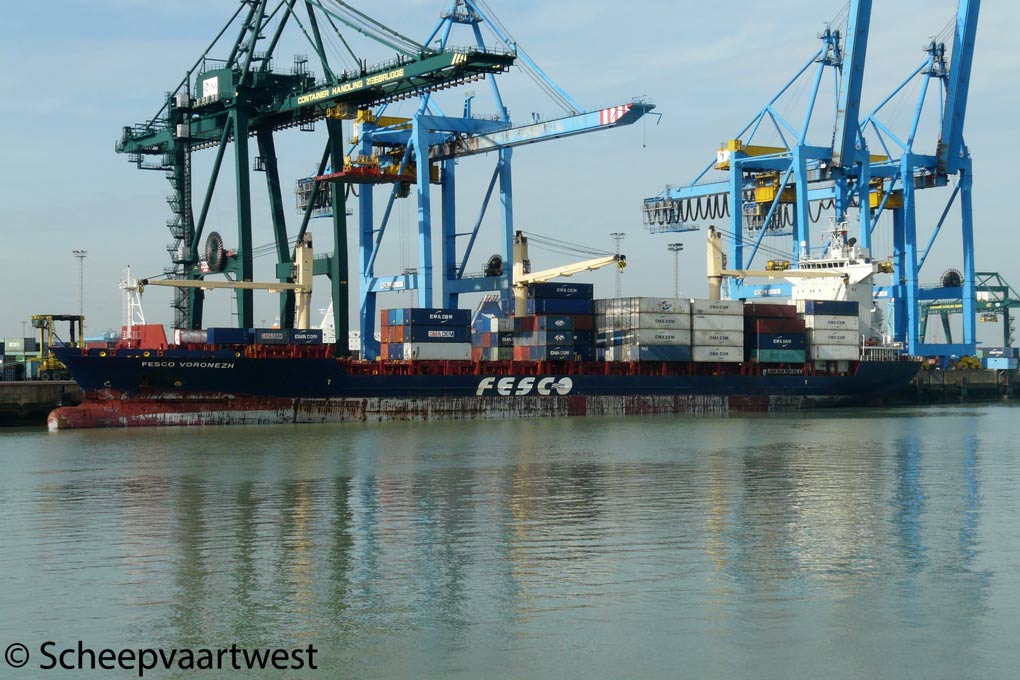

Fesco Voronezh 03
Zeebrugge 06 March 2013



Name

FESCO VORONEZH

Previous names

2008 - 02.2009 Fesco Voronezh

2009 - 10.2011 CMA CGM Neva

Type

Cellular containership

IMO-number

9322011

Call sign

5BNG2

Flag

Cyprus

Port of registry

Limassol

GT

16.803 t

DWT

29.946 t

NT

8.648 t

Displacement

30.800 t

Number of 20ft containers

1.730

Container capacity 14t

1.124

Reefer capacity

200

Length

184,03 m overall

171,94 m between perpendiculars

172,32 m registered

Breadth

25,30 m registered

Draught

Max summer: 9,88 m

Forecastle

36,81 m

Poop

15,08 m

Freeboard

3.633 m

Depth

13,50 m moulded

Speed

19,7 knots

Built

2008

Keel laid

23.04.2008

Launch date

20.09.2008

Date of completion

23.12.2008

Builder

Stocznia Szczecinska Nowa Sp. z o.o.
ul. Hutnicza 1
71-642 Szczecin
Republic of Poland

Yard number

B170-V/2

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x Cegielski-Sulzer 6 RTA 62 U - 2 stroke 6 cylinder 620 x 2.150 mm diesel engine - 13.320 kW at 113,0 rpm

Year of manufacture: 2008

Manufacturer: H. Cegielski-Poznan S.A.
ul. 28 Czerwca 1956 223/229
60-965 Poznan
Republic of Poland

Propellers

1x Solid propeller (keyless) - aft at 113 rpm

5 blades

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 24,0 m²

Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 294 m²

Year of manufacture: 2008

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 440/ 220 V - 1.370 kVA

1x Plant 440 V - 156 kVA

1x Plant 12 V - 50 Ah

1x Plant 24 V - 42 Ah

1x Plant 24 V - 126 Ah

Generators

3x H.Cegielski 8S20H main diesel generatorsets each 1.370 kVA / 1.096 kW

Emergency generator

1x Diesel generatorset 156 kVA

Batteries

1x Battery for automation 126 Ah

2x Batteries for start emergency engine each 50 Ah

1x Battery for UPS radio 42 Ah

Compressed air receivers

2x Receivers each 6.300 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

1x Receiver 40 litres - 30,0 bar

1x Receiver 750 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 750 kW, forward

Number of holds

4

Hold capacity

Hold 1: 5.153 m³

Hold 2: 10.524 m³

Hold 3: 10.883 m³

Hold 4: 3.235 m³

Total: 29.795 m³

Number of hatches

1x 12,50 x 13,00 m

8x 12,00 x 20,60 m

Tank capacities

Fuel oil: 2.230 m³ / 2.423 t

Ballast water: 8.127 t

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Cargo gear

3x Cranes each SWL 45,0 t

Crew size

25

Manager

Fesco Wallem Shipmanagement Ltd.
248, Queen's Road East 3705-08, 37/F
Wanchai
Hong Kong Special Administration Region of P.R. China

Operator

Fesco

Owner

Fesco
Moscow
Russia

Registered owner

Lightview Shipping Co., Ltd.
Fortuna Court Block B, 2nd floor 284 Arch. Makarios, III Ave
3105 Limassol
Republic of Cyprus

Last update

07.03.2013
