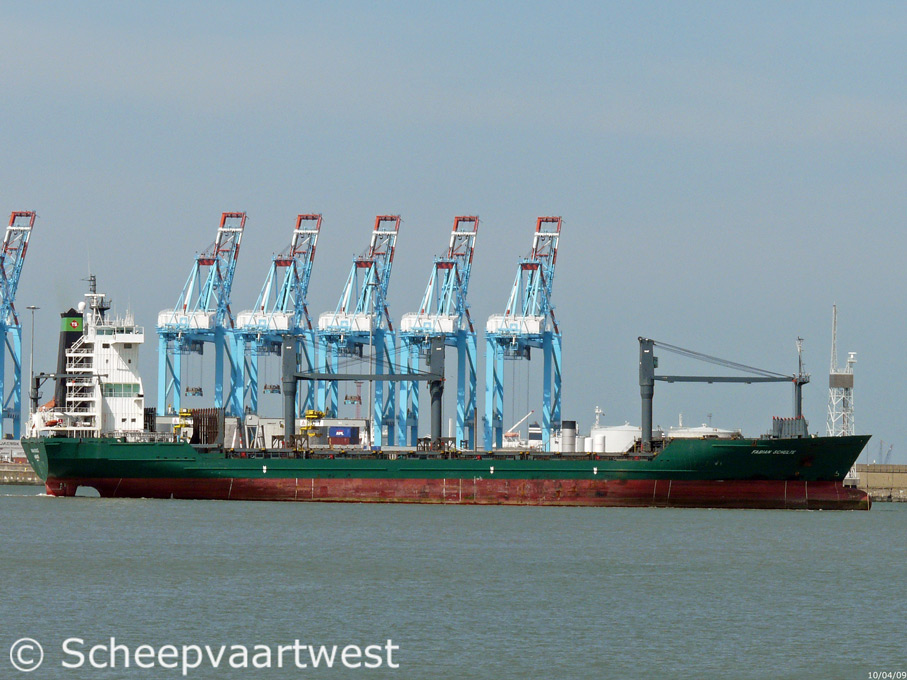

Fabian Schulte 08
Zeebrugge 10 April 2009

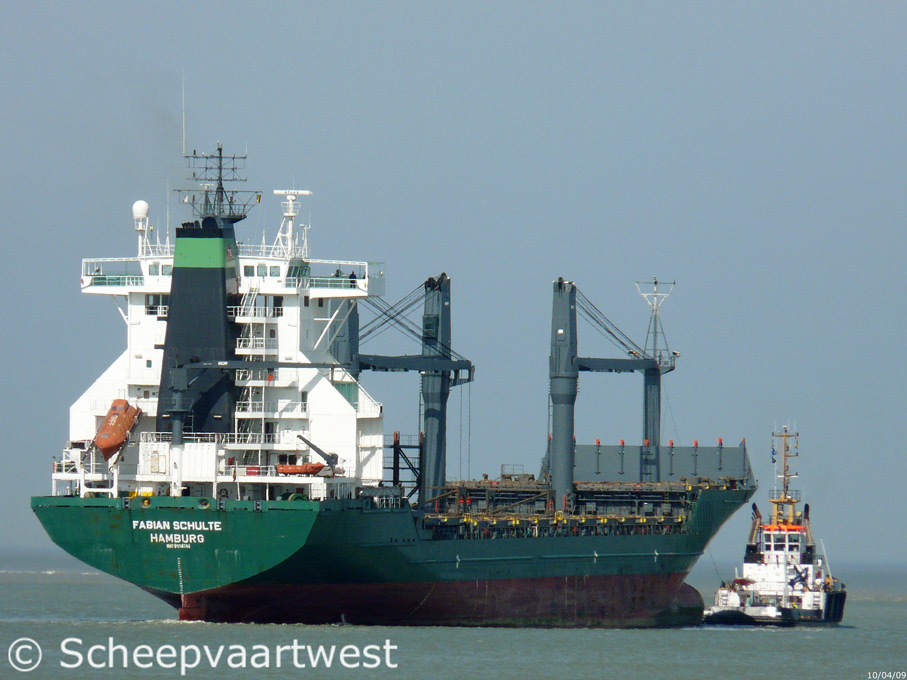

Fabian Schulte 12
Zeebrugge 10/04/09



Name

FABIAN SCHULTE

Previous names

1997 Maersk Cabello

1998 Fabian Schulte

2007 CMA CGM Iroko

2009 Fabian Schulte

Type

Cellular containership

IMO-number

9138264

Call sign

DHFF

Flag

Germany

Port of registry

Hamburg

GT

15.929 t

DWT

22.009 t

NT

9.227 t

Number of 20ft containers

1.608

Container capaciti 14TH

1.086

Reefer Point

200

Length

167,84 m overall

156,00 m between perpendiculars

156,92 m registered

Breadth

26,70 m

Draught

Summer: 10,81 m

Forecastle

31,38 m

Poop

13,20 m

Depth

14,40 m moulded

Speed

20,0 knots

Built

1997

Keel laid

04.04.1997

Launch date

23.05.1997

Date of completion

09.1997

Builder

MTW Schiffswerft GmbH
Wendorfer Weg 5
23966 Wismar
Federal Republic of Germany

Yard number

302

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

3

Main engine

1x Sulzer 7RTA62U - 2 stroke single acting 7 cylinder 620 x 2.150 mm diesel engine - 15.540 kW

Year of manufacture: 1997

Manufacturer: Dieselmotorenwerk Rostock GmbH

Propeller

1x Solid propeller (keyless) - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 65,0 m²
Year of manufacture: 1997
Manufacturer: PWT Prozesswärmeträgertechnik GmbH

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 202,0 m²
Year of manufacture: 1997
Manufacturer: PWT Prozesswärmeträgertechnik GmbH

Electric installations

1x 440/220 V - 3.300 kVA

1x 440 V - 1.800 kVA

1x 440 V - 118 kVA

Shaft generator

1800 kVA / 1.440 kW

Generators

3x MaK 6M20 main diesel generatorsets each 1.100 kVA / 880 kW

Emergency generator

1x Diesel generatorset 118 kVA / 94,4 kW

Compressed air receivers

1x Receiver 7.000 litres - 30,0 bar

1x Receiver 6.000 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster BRUNVOLL - 800 kW, forward

Tank capacities

Ballast water: 5.690 m³

Fuel: 1.703 m³

Largest hatch

Length: 12,43 m
Breadth: 22,86 m

Cargo Gear

3x Cranes - each SWL 45 t each

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Crew

23

Manager

Ocean Shipmanagement GmbH
Domstr. 17 Zürich Haus
20095 Hamburg
Federal Republic of Germany

Shipping company

Thomas Schulte GmbH & Co. KG
Domstraße 17
20095 Hamburg
Germany

Owner

Fabian Schulte Shipping GmbH & Co. KG
Parkstr. 29
22605 Hamburg
Federal Republic of Germany
