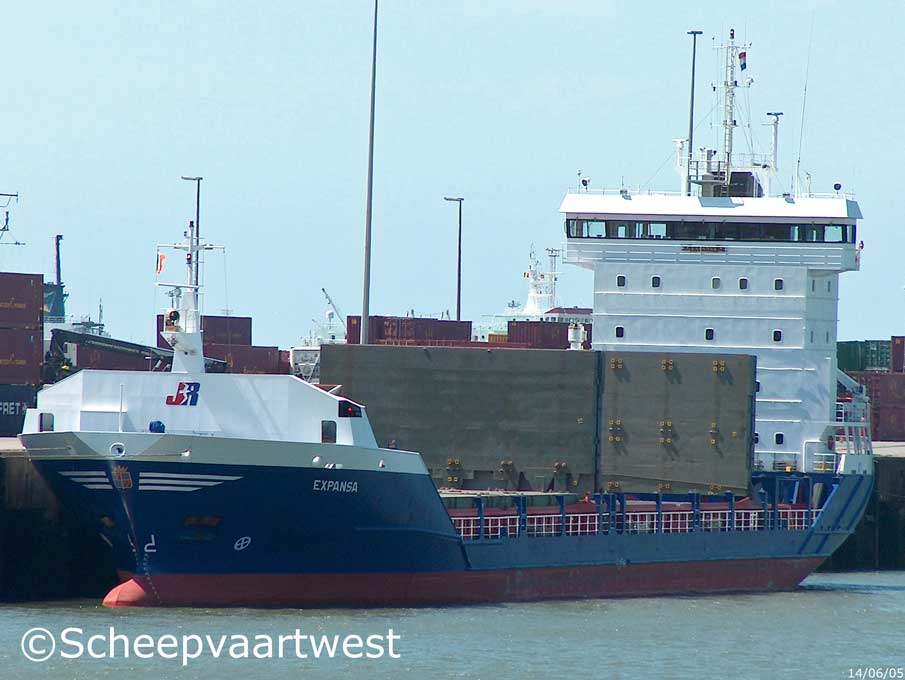

| Zeebrugge 14 June 2005 |
|
Name |
EXPANSA |
|
Type |
Cellular Containership |
|
IMO-number |
9234422 |
|
Call sign |
PBBZ |
|
Flag |
The Netherlands |
|
GT |
2.936 t |
|
DWT |
Summer: 3.820 t |
|
NT |
1.444 t |
|
Number of 20ft containers |
340 |
|
Reefer points |
On deck: 70 In hold: 30 Total: 100 |
|
Length |
93,05 m over all |
|
Breadth |
15,85 m overall |
|
Draught |
Summer: 4,87 m |
|
Freeboard |
1.300 mm |
|
Depth |
6,175 m |
|
Speed |
14,5 knots |
|
Built |
2001 |
|
Launch date |
03.05.2001 |
|
Date of completion |
02.06.2001 |
|
Builder |
Bijlsma Scheepswerf BV |
|
Yard number |
703 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Continuous deck |
1 |
|
Main engine |
1x Wärtsilä Diesel 8R32 - 4 stroke 8 cylinder 320 x 250 mm internal combustion diesel engine - 3.280 kW / 4.457 hp at 750 rpm Built: 2001 Builder: Wärtsilä NSD Corporation, Vaasa - Finland |
|
Electrical propulsion gen. |
1x 504 kW - 400 V |
|
Number of screws |
1x Screw propeller controllable pitch at 220 rpm |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
750 kW |
|
Diesel generators |
2x Main diesel generatorsets each 324 kVA - 259 kW - 374 hp |
|
Emergency generators |
1x Diesel generatorset 80 kVA - 64 kW - 95 hp |
|
Bow thruster |
500 kW |
|
Cargo holds |
1 |
|
Tank capacities |
Water ballast: 2.137 m³ Bunker: 269 t |
|
Manager |
J.R. Shipping BV |
|
Owner |
Expansa Scheepvaartbedrijf C.V. Friesland |
|
Renamed |
2008 Vento Di Ponente |
