Henneke Rambow - IMO 9354430

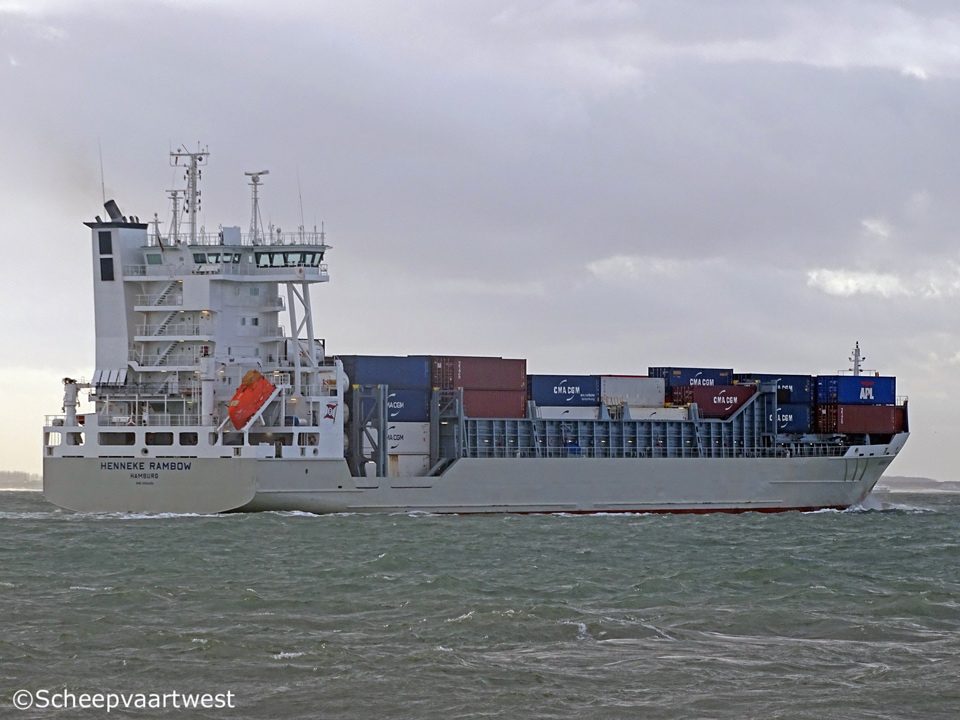

Westerschelde 14 December 2017

Name

HENNEKE RAMBOW

Type

Containership

IMO-number

9354430

Call sign

DDVQ2

Flag

Germany

Port of registry

Hamburg

GT

9.981 t

DWT

Summer: 11.274 t

NT

6.006 t

Number of 20ft containers

868

Number of 40ft containers

392

Container capacity 14t

516

Reefer capacity

150 - 380Volt - 50 Hz

Length

134,44 m overall

124,41 m between perpendiculars

Breadth

22,74 m extreme

22,50 m moulded

Draught

8,71 m

Depth

11,30 m

Speed

Max: 18,5 knots

Built

2007

Keel laid

02/12/2004

Launch date

15/12/2006

Date of completion

11/01/2007

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Hamburg
Germany

Yard number

1242

Hull material

Shipbuilding steel (standard)

Hull type

Single hull, double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder combustion engine 8.400 kW at 500 rpm

Reduced power: 7.950 kW

Propellers

1x Controllable pitch propeller

Boilers

1 x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 221,5 m²

1 x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 517,0 m²

Electric installations

1 x Plant 400 V - 1.155 kVA
1 x Plant 400 V - 1.390 kVA
1 x Plant 400 V - 1.860 kVA
1 x Plant 400 V - 400 kVA
1 x Plant 24 V - 140 Ah

Shaft generator

1x SAM type S E 500 - 1.488 kW / 1.860 kVA

Generators

1x Caterpillar 3508 B DITA diesel generatorset 924 kW / 924 kVA

1x Caterpillar 3512 B DITA diesel generatorset 1.112 kW / 1.390 kVA

Emergency generator

1x Caterpillar 3406 DITA diesel generatorset 400 kVA

Batteries

2x Batteries for start emergency engine each 140 Ah

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Thruster

1x Brunvoll 750 kW, forward

1x Brunvoll 450 kW, aft

Number of holds

4

Cargo hold capacity

Grain: 4.730 m³

Number of hatches

4

Tank capacities

Fuel oil: 861 t
Fresh water: 128 t
Gas oil: 113 t
Water ballast: 4.030 t

Anchor equipment

3 x Anchors weight each 5.250 kg

Length: 577,50m

Diameter: 56 mm

Crew size

19

Manager

Rambow Bereederungs GmbH & Co. KG
Schoolpadd 17

21706 Drochtersen / Assel

Germany

Registered owner

Reederei Rambow GmbH & Co. KG MS "HENNEKE RAMBOW"

Latest data adjustment

14 June 2018
