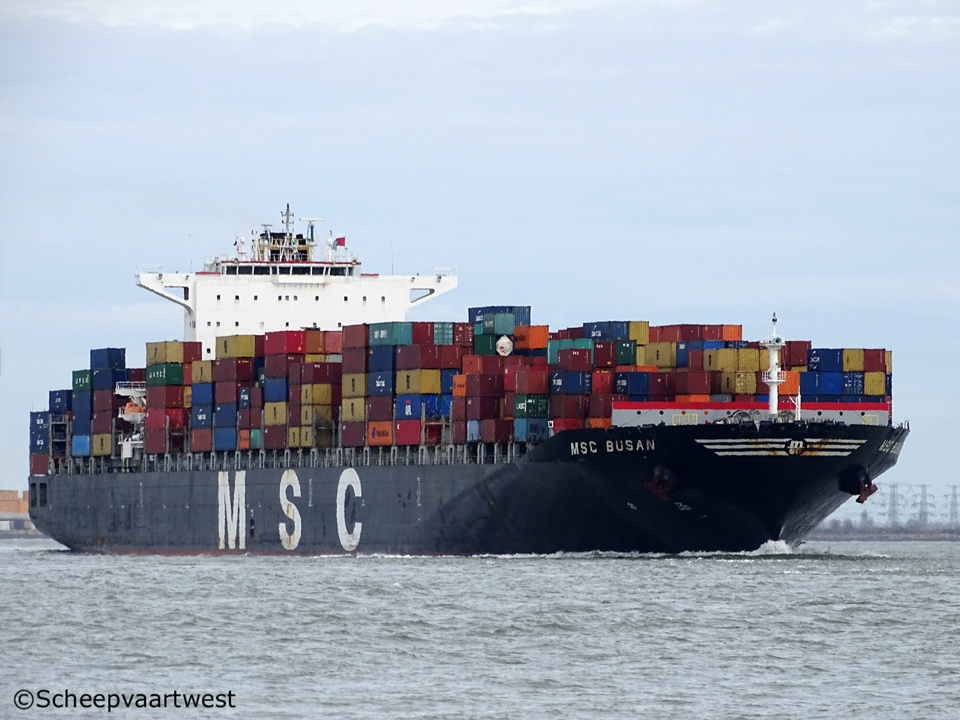

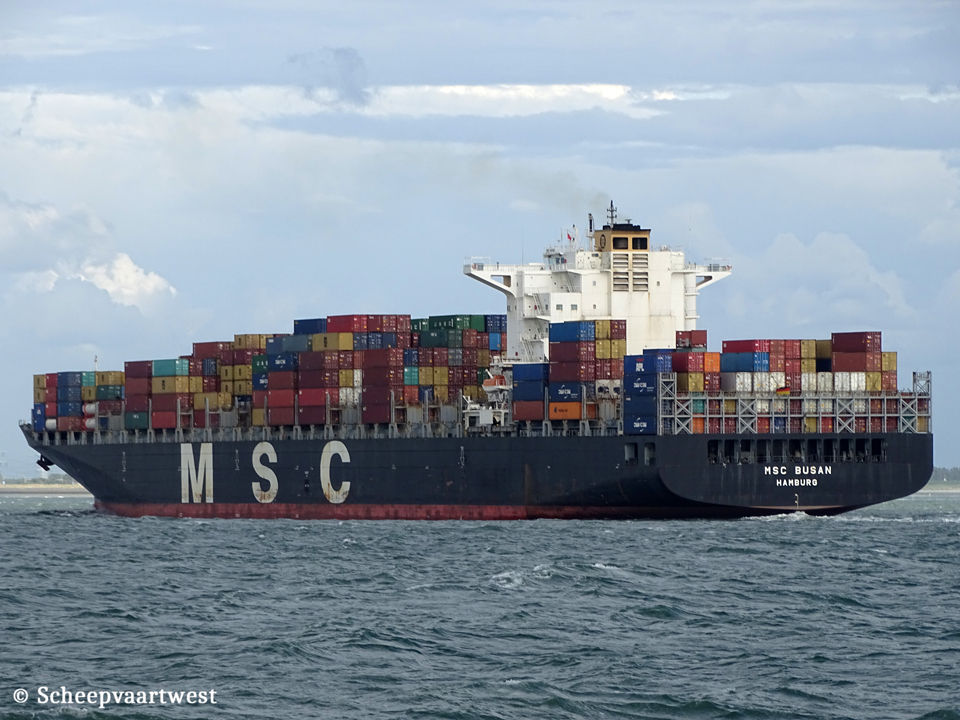

MSC Busan 01

Westerschelde 02 April 2018



Name

MSC BUSAN

Type

Cellular containership

IMO-number

9289087

Call sign

DFDD2

Flag

Germany

Port of registry

Hamburg

Previous flags

2005 - 2013 Liberia, Monrovia - call sign: A8HR5

2013 - 2016 Malta, Valletta - call sign: 9HA3488

GT

89.954 t

DWT

Summer: 104.904,1 t

NT

54.268 t

Number of 20ft containers

8.034

Container capacity 14t

6.275

Reefer capacity

620

Length

324,86 m overall

309,20 m between perpendiculars

Breadth

42,80 m extreme

Draught

14,50 m

Depth

24,60 m

Speed

Max: 25,4 knots

Built

2005

Keel laid

19/04/2005

Launch date

09/07/2005

Date of completion

22/09/2005

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
Busan
South Korea

Yard number

N-131

Hull material

Steel

Hull type

Single hull

Main engine

1x Sulzer/HSD 12RTA96C-B - 2 stroke 12 cylinder combustion engine 68.640 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, oil/gas fired Mission OM

1x Auxiliary boiler, exhaust gas heated AQ-2

Generators

4x MAN 8L27/38 main diesel generatorsets each 2.250 kW / 2.812 kVA

Emergency generator

1x Cummins VTA 28-D(M) diesel generatorset 250 kVA
Builder: Cummins Engine Company, Inc.

Bow thruster

2.600 kW

Tank capacities

Ballast: 26.164 m┬│

Anchor equipment

Length: 748,70 m

Diameter: 107 mm

Cargo gear

Gearless

Manager

CPO Containerschiffreederei (GmbH & Co.) KG

Bleichenbr├╝cke 10
20354 Hamburg
Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Kommanditgesellschaft MS "SANTA LARISSA" Offen Reederei GmbH & Co.

Germany

Latest data adjustment

27 May 2018
