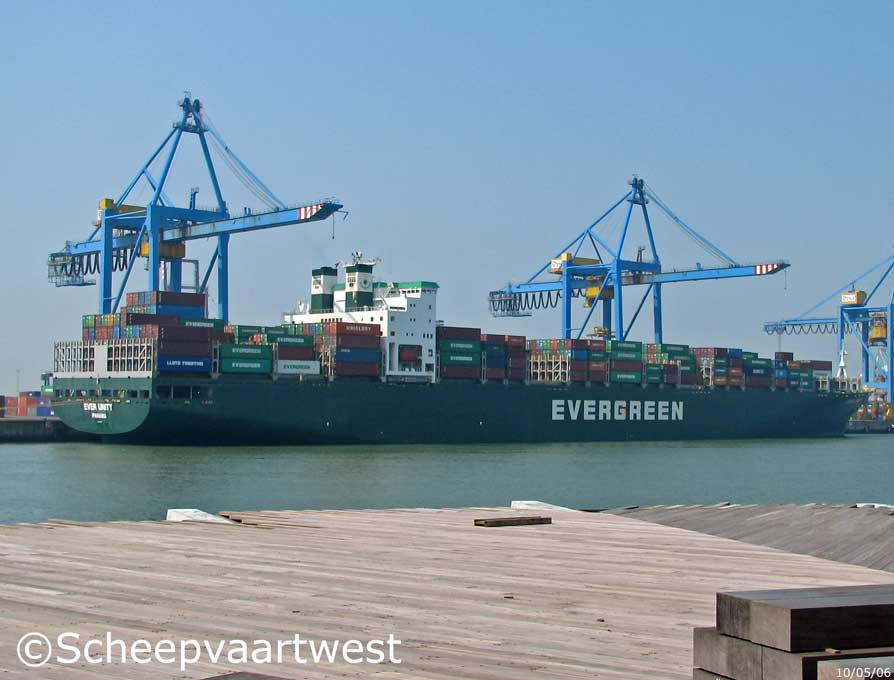

| Zeebrugge 10 May 2006 |
 |

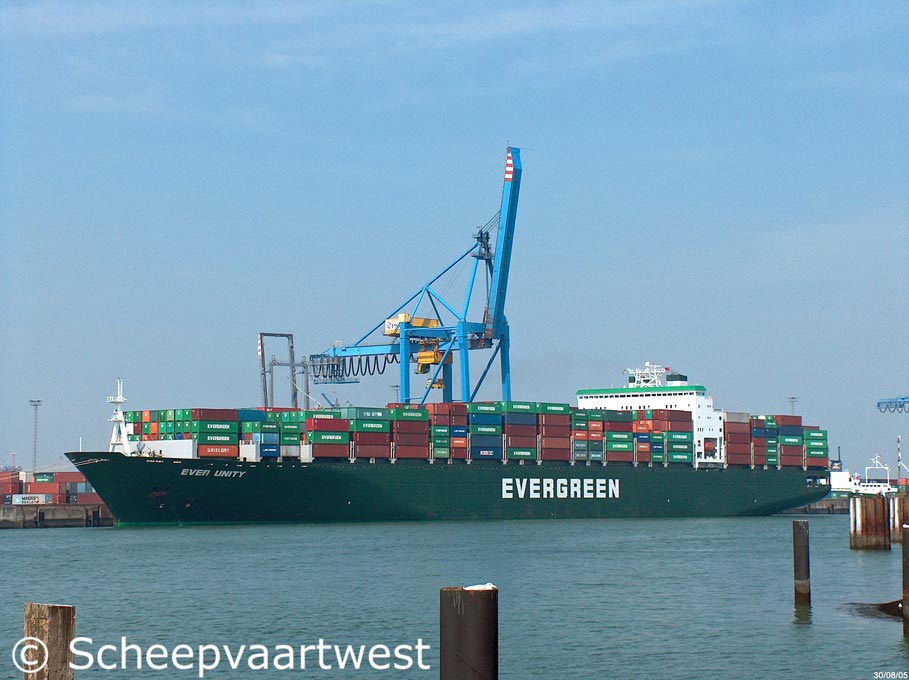

| 30/08/05 |
|
Name |
EVER UNITY |
|
Previous names |
01.01.2000 Ever unity 08.05.2004 LT Unity |
|
Type |
Cellular Containership |
|
IMO-number |
9169158 |
|
Call sign |
3FCD9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
69.246 t registered Suez: 70.983 t |
|
DWT |
Summer: 63.216 t |
|
NT |
30.235 t registered Suez: 62.008 t |
|
Number of 20ft containers |
5.652 |
|
Container capacity at 14t |
4.520 |
|
Reefer capacity |
570 |
|
Length |
285,00 m overall |
|
Breadth |
40,00 m overall |
|
Draught |
Summer: 12,70 m |
|
Freeboard |
11.500 mm |
|
Depth |
24,20 m moulded |
|
Speed |
25,0 knots |
|
Built |
1999 |
|
Keel laid |
15.12.1998 |
|
Launch date |
21.07.1999 |
|
Delivery date |
05.08.1999 |
|
Builder |
Mitsubishi Heavy Industries Ltd. Place of built: Nagasaki |
|
Yard number |
2141 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Single hull |
|
Bulkheads |
Water tight: 11 |
|
Main engine |
1x Sulzer 12RTA84C-UG - 12 cylinder 840 x 2.400 mm engine - 49.325,52 kW maximum continuous rating Builder:Mitsubishi Heavy Industries Ltd., Kobe - Japan |
|
Number of screws |
1 |
|
Steam piping system |
1x Auxiliary water tube boiler 1x Waste heat boiler |
|
Shaft generator |
2.000 kW |
|
Generators |
4x Main diesel generatorsets each 1.770 kW |
|
Number of tanks |
Ballast: 24 Fuel oil: 17 Lubricating oil: 10 Slop: 4 Diesel oil: 4 Fresh water: 3 Potable water: 1 Sludge: 1 Waste water: 1 |
|
Tank capacities |
Ballast: 24.037 t Bunker: 9.124 t Freshwater: 384,16 t / 392 m³ Fuel oil: 8.836 t / 9.400 m³ |
|
Lifting equipment |
1x Lifting device - SWL 7,0 t |
|
Manager |
Evergreen Marine |
|
Operator |
Evergreen |
|
Owner |
Evergreen Marine Cooperation |
|
Registered owner |
Greencompass Marine S.A. |
