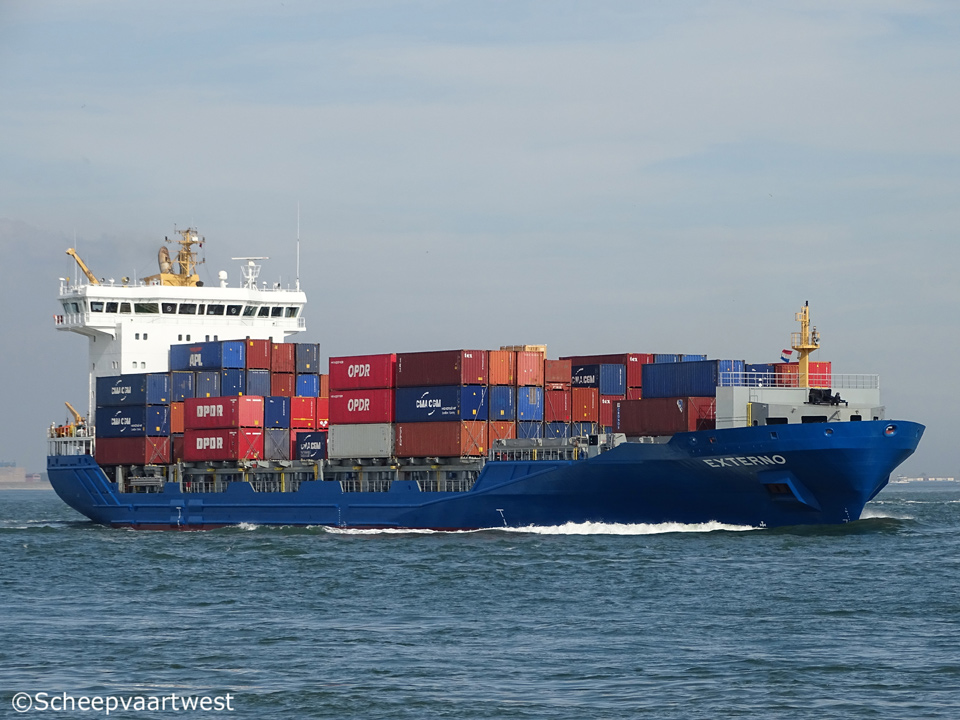

Externo 01

Westerschelde 07 July 2017

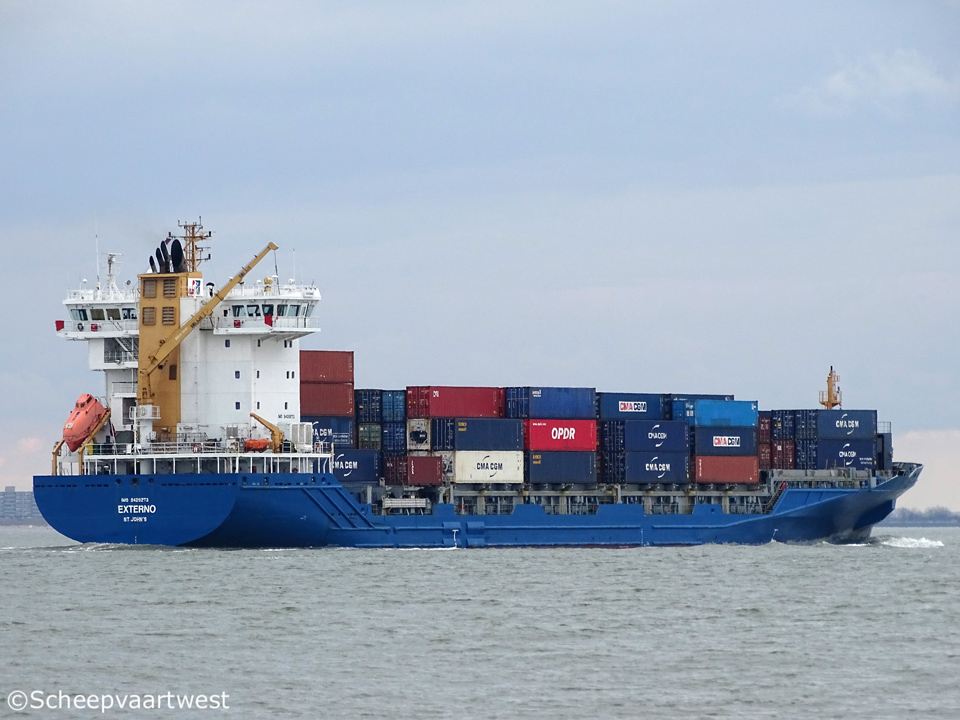

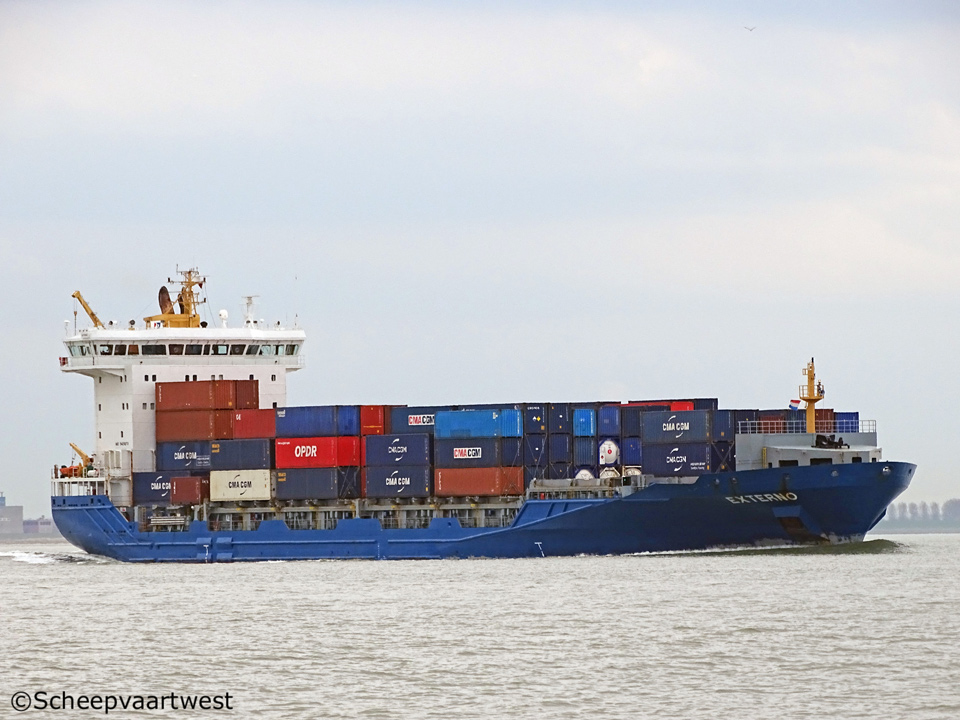

Externo 02   Externo 03
Westerschelde 31/03/18 Westerschelde 31/03/18



Name

EXTERNO

Previous names

RBD Holsatia

Sylt

Type

Containership - Feeder

IMO-number

9429273

Call sign

CQAS9

Flag

Portugal

Port of registry

Madeira

Previous flags

2012 - 2019 Antigua & Barbuda, St. John’s - Call sign: V2QJ8

GT

9.983 t

DWT

Summer: 11.000 t

NT

5.198 t

Number of 20ft containers

877

Container capacity 14t

610

Reefer capacity

231

Length

140,66 m overall

130,57 m between perpendiculars

Breadth

23,54 m extreme

23,20 m moulded

Draught

8,70 m

Bridge

27,62 m

Forecastle

9,81 m

Poop

10,00 m

Depth

11,50 m

Speed

18,3 knots

Built

2012

Keel laid

06/09/2008

Launch date

20/04/2012

Date of completion

21/06/2012

Builder

Fujian Mawei Shipbuilding Ltd.

Fuzhou

China

Yard number

VMW431-10

Hull material

Steel

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 9.000 kW at 500 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Controllable pitch propeller - aft at 113,0 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 37,0 m²

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH

1x Thermal oil heater, exhaust heated - 10, bar

Heating surface: 183,0 m²

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Shaft generator

1x 1.440 kW / 1.800 kVA

Generators

2x ZJMD -MAN B&W 7L28/32H main diesel generatorsets each 1.370 kW / 1.712,5 kVA

Emergency generator

1x Cummins VTA 28-D(M) diesel generatorset 687,5 kVA

Batteries

2x Batteries for start emergency engine each: 210 Ah

2x Batteries for UPS radio each 135 Ah

2x Batteries for automation each 102 Ah

2x Batteries for UPS navigation each 85 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver: 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster: 900 kW, forward

Number of holds

3

Number of hatches

3

Tank capacities

Ballast: 4.929 m³

Anchor equipment

3x Anchors weight each 5.250 kg

Length: 577,50 m

Diameter: 56 mm

Crew size

17

Manager

JR Ship Management B.V.

Korte Lijnbaan 25

8861 NS Harlingen

The Netherlands

Registered owner

Externo Shipping III B.V.

Sister ships

Bakkafoss - IMO 9429211

Carat - IMO 9429209

Morsum - IMO 9429261

Renamed

2021 Elbsea

Portugal, Madeira - Call sign: CQAS9

Owner: MS "Elbsea" GmbH & Co. KG

Manager: USC Barnkrug GmbH & Co. KG

Latest data adjustment

04 May 2021
