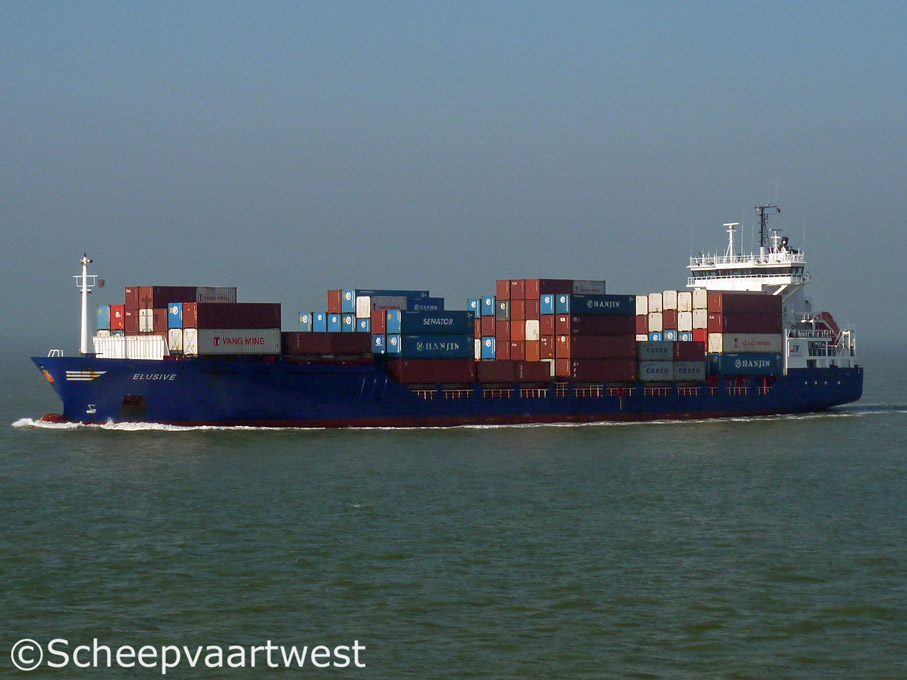

Elusive 02
Westerschelde 28 September 2011



Name

ELUSIVE

Previous names

Arctic Ocean
Norasia Arabia

Type

Containership

IMO-number

9123805

Official number

50880

Call sign

PHKY

Flag

The Netherlands

Port of registry

Harlingen

GT

6.326 t

DWT

8.001 t

NT

3.251 t

Number of 20ft containers

660

Container capacity 14t

405

Reefer capacity

100

Length

132,85 m overall

125,30 m between perpendiculars

123,68 m registered

Breadth

18,94 m overall

18,70 m registered

Draught

7,275 m

Forecastle

35,70 m

Poop

12,60 m

Depth

9,30 m moulded

Speed

18,0 knots

Built

1995

Keel laid

10.06.1994

Launch date

08.11.1995

Date of completion

12.1995

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1110

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 6M601C - 4 Stroke 6 cylinder 580 x 600 mm diesel engine - 6.600 kW at 425 rpm

Year of manufacture: 1995

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 145 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 40,1 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 149,3 m²

Year of manufacture: 1995

Manufacturer: HTI Hoch-Temperatur Industrieanlagen GmbH
Hagenbeckstr. 11
22527 Hamburg
Federal Republic of Germany

Electric installations

1x Plant 380/220 V - 410 kVA

1x Plant 380/220 V - 410 kVA

1x Plant 380 V - 1525 kVA

1x Plant 380 V - 50 kVA

Shaft generator

1x 1525 kVA /1.200 kW

Generators

2x Main diesel generatorsets each 410 kVA

Emergency generator

1x Diesel generatorset 50 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 600 kW, forward

Cargo capacity

Grain: 10.845 m³

Bales: 9.607 m³

Largest hatch

25,10 x 15,70 m

Tank capacities

Fuel oil: 745 m³ / 680 t

Gas oil: 165 t

Fresh water: 100 t

Ballast water: 3.590 m³ / 3.680 t

Anchor equipment

3x Anchors weight each 4.050 kg

Chain length: 522,50 m

Cargo gear

Gearless

Manager

JR Ship Management B.V.
Korte Lijnbaan 25
8861 NS Harlingen
The Netherlands

Operator

JR Shipping

Owner

Elusive Shipping B.V.
Korte Lijnbaan 25
8861 NS Harlingen
The Netherlands
