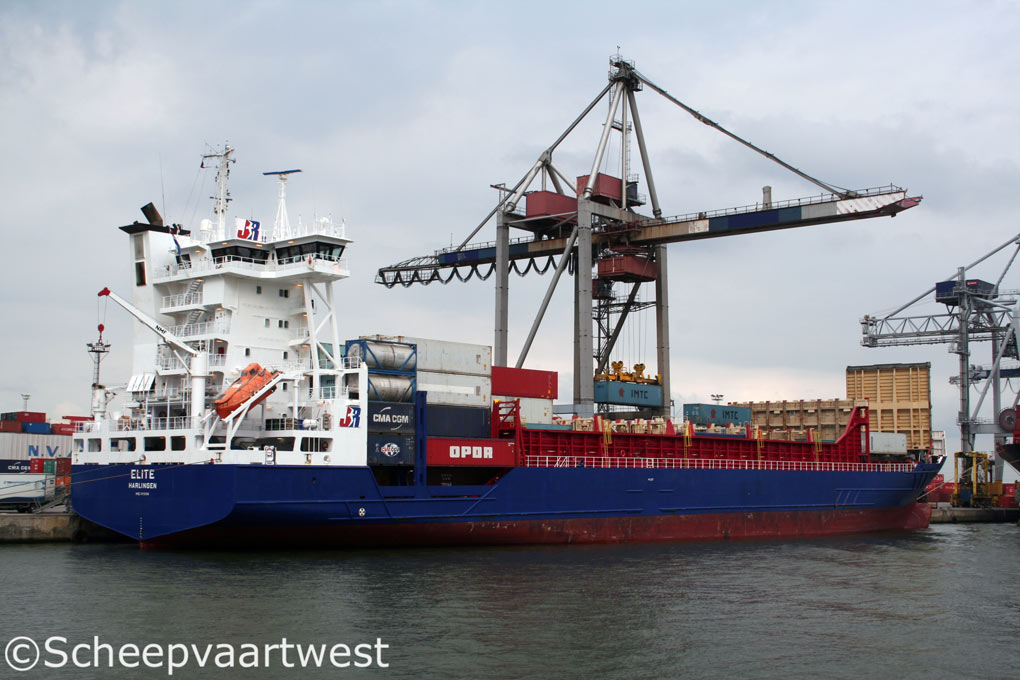

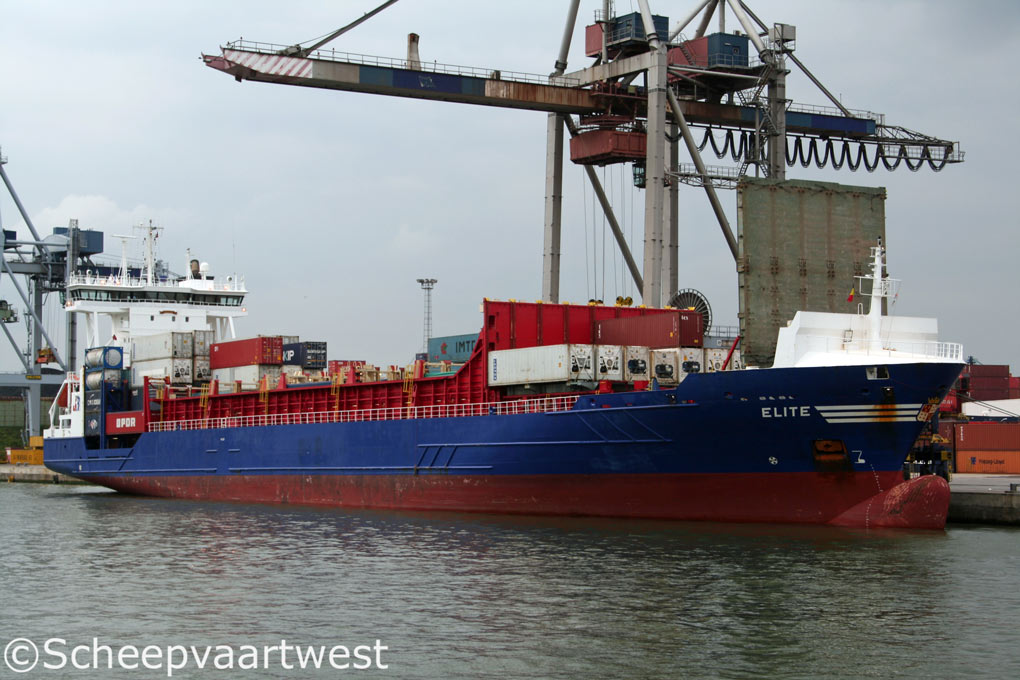

| Antwerpen 31 August 2011 |
 |
| Antwerpen 31/08/11 |
|
Name |
ELITE |
|
Previous names |
2005 Launch as: Elite 06/2005 - 01/2006 Holland Maas Batave 01/2006 - 2007 MSC Batave |
|
Type |
Cellular containership |
|
IMO-number |
9315018 |
|
Call sign |
PHDA |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
GT |
11.662 t |
|
DWT |
13.682 t |
|
NT |
7.284 t |
|
Number of 20ft container |
1.008 |
|
Container capacity 14t |
585 |
|
Reefer capacity |
150 |
|
Length |
149,14 m overall 139,11 m between perpendiculars 139,79 m registered |
|
Breadth |
22,50 m |
|
Draught |
8,70 m |
|
Forecastle |
91,39 m |
|
Poop |
9,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m |
|
Speed |
Service: 18,2 knots Max.: 18,5 knots |
|
Built |
2005 Ship lengthened: 12.2007 |
|
Keel laid |
29/03/2004 |
|
Launch date |
27/03/2005 |
|
Date of completion |
12/07/2005 |
|
Builder casco |
Daewoo Mangalia Heavy Industries Mangalia Romania |
|
Builder completion |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg-Neuenfeld Federal Republic of Germany |
|
Yard number |
1245 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43 - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.415 bhp at 500 rpm Year of manufacture: 2005 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 128 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface : 52,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface : 208,0 m Year of manufacture: 2005 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH Justus-von-Liebig-Ring 4-6 25451 Quickborn Federal Republic of Germany |
|
Electric installations |
1x Plant 400/230 V - 625 kVA 1x Plant 400/230 V - 625 kVA 1x Plant 400 V - 1.625 kVA 1x Plant 400 V - 290 kVA 1x Plant 24 V - 280 Ah 1x Plant 400 V - 192 Ah |
|
Shaft alternator |
1x 1.300 kW / 1625 kVA |
|
Generators |
2x Main diesel generatorsets each 534 kW / 625 kVA |
|
Emergency generator |
1x Diesel generatorset 290 kVA |
|
Batteries |
4x Batteries for Start emergency engine each 280 Ah |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar |
|
Thrusters |
Bow: 1x Controllable pitch transverse thruster 750 kW, forward 1x Controllable pitch transverse thruster 450 kW, aft |
|
Tank capacities |
Fuel oil: 695 t Fresh water: 128 t Gas oil: 113 t Water ballast: 4.950 t |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
JR Shipping BV Korte Lijnbaan 25 8861 NS Harlingen The Netherlands |
|
Registered owner |
Elite Bewaarder BV Care of JR Ship Management BV Korte Lijnbaan 25 8861 NS Harlingen The Netherlands |
|
Previous owners |
2005 - 2008 ms Elite Scheepvaartbedrijf C.V., Harlingen - The Netherlands2008 - 2009 Elite Shipping B.V., Harlingen - The Netherlands |
|
Sister ships |
2005 OOCL St. Petersburg 2007 Ida Rambow |
|
Renamed |
07/2021 WEC De Hoogh Cyprus, Limassol - Call sign: 5BVT5 Manager: MSC Shipmanagement Ltd., Limassol - Cyprus Owner: Holland Maas Beheer X B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
24 August 2021 |
