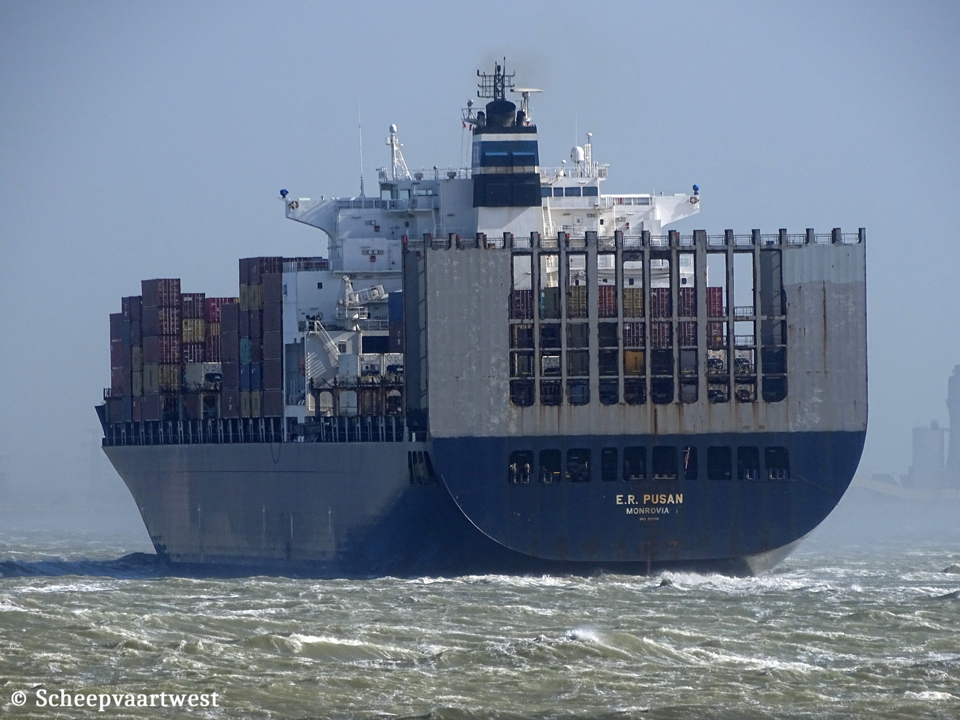

Westerschelde 03 October 2017 |
 |
 |
 |
 |
 |
 |
|||||

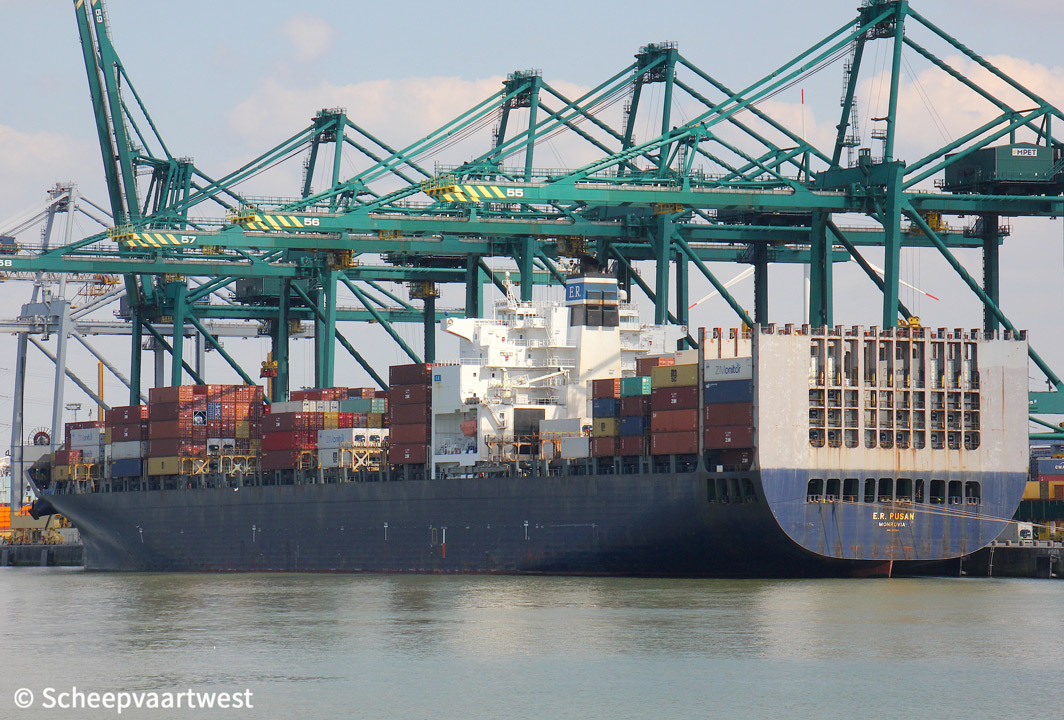

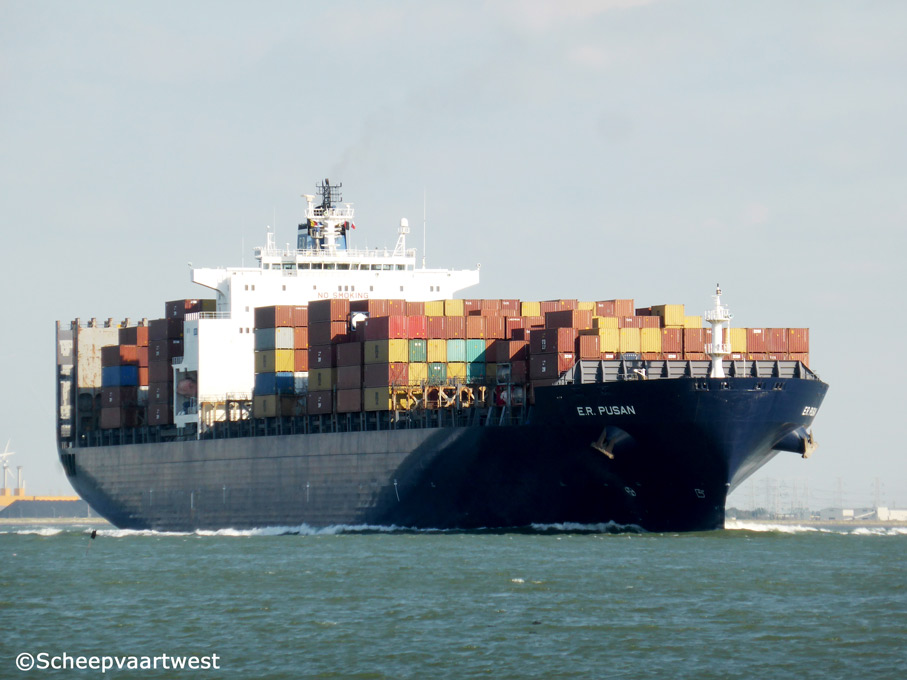

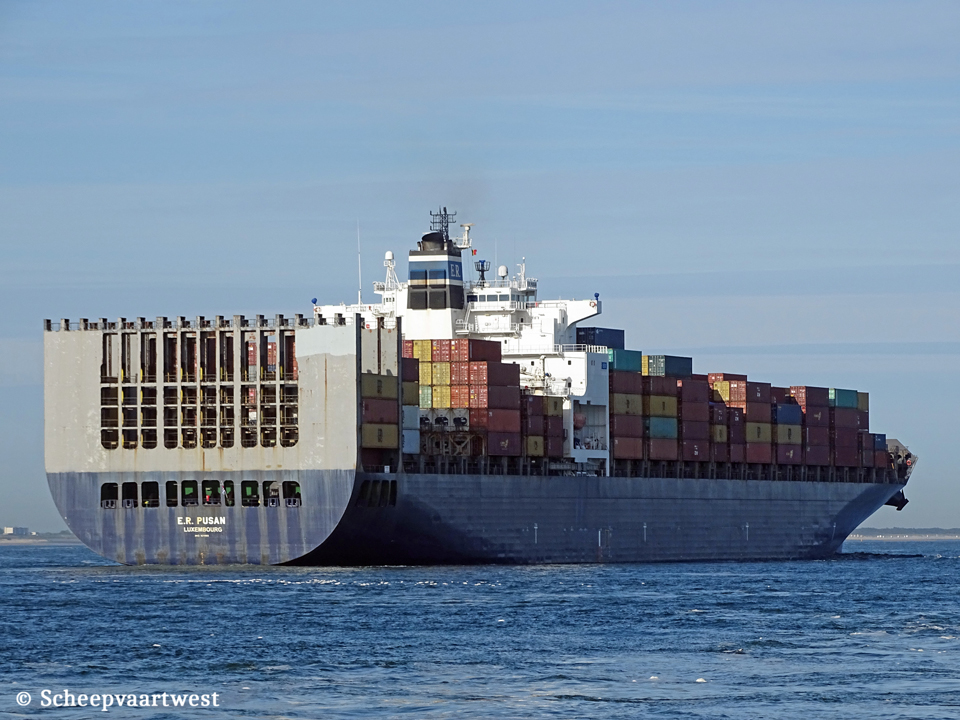

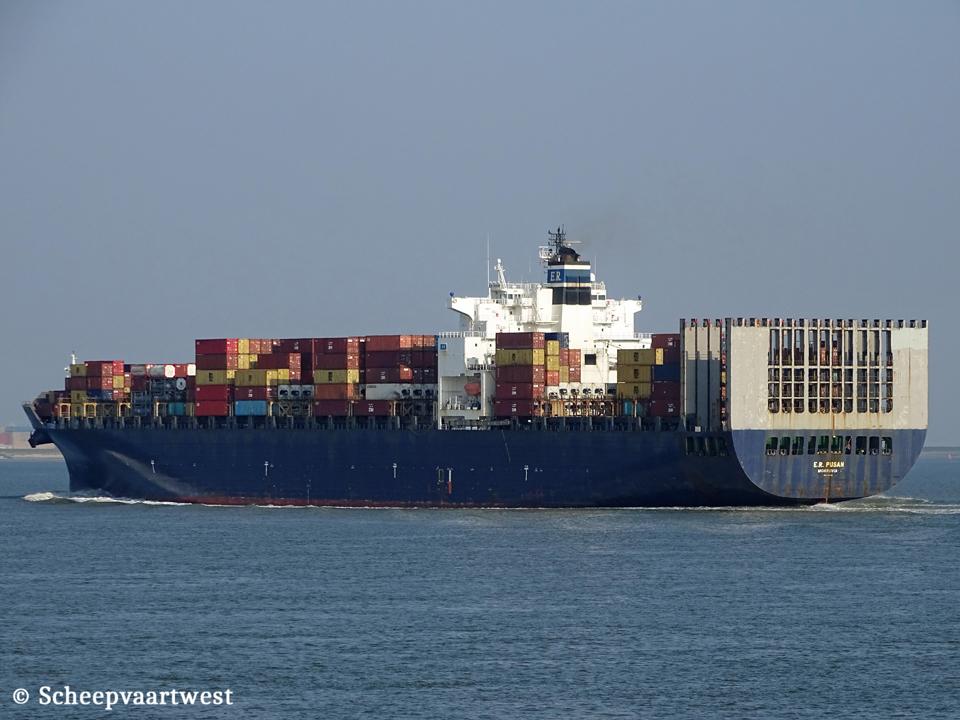

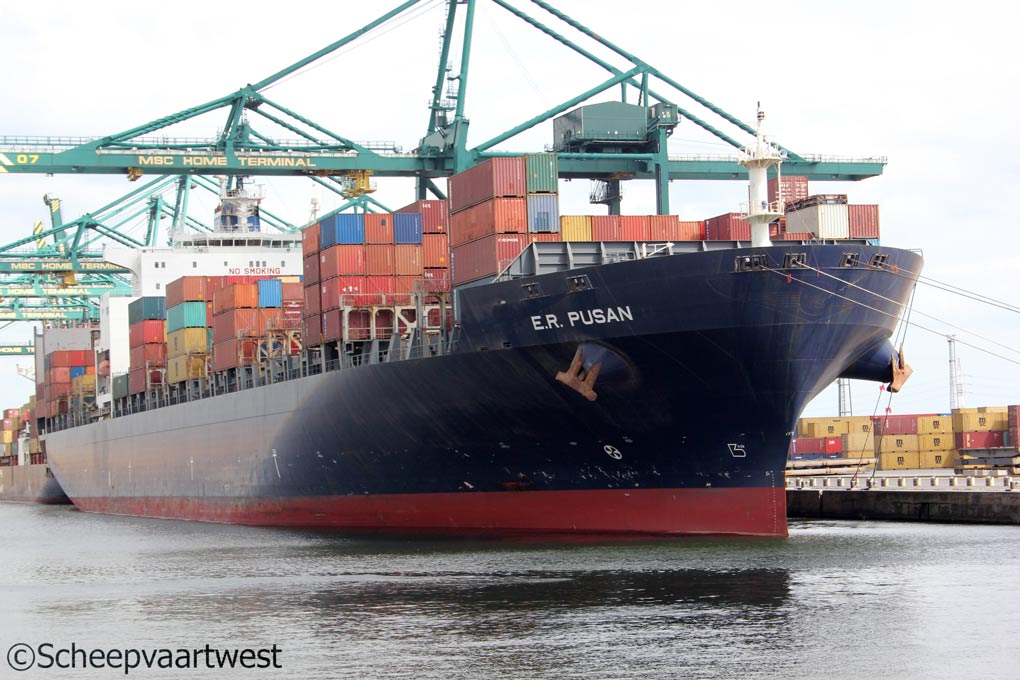

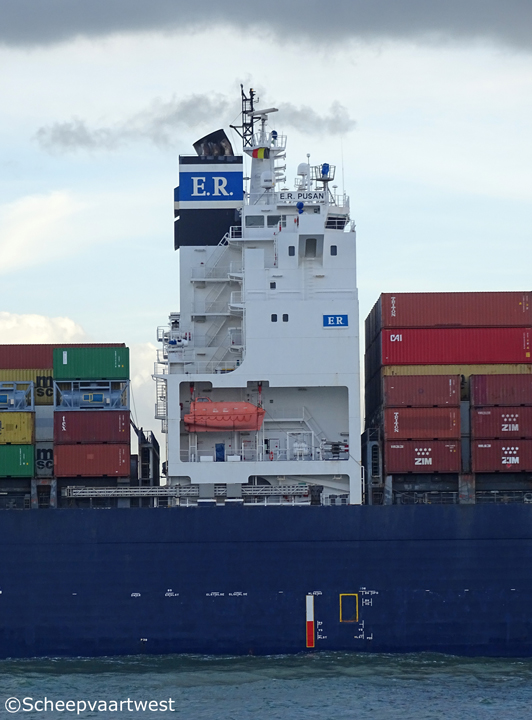

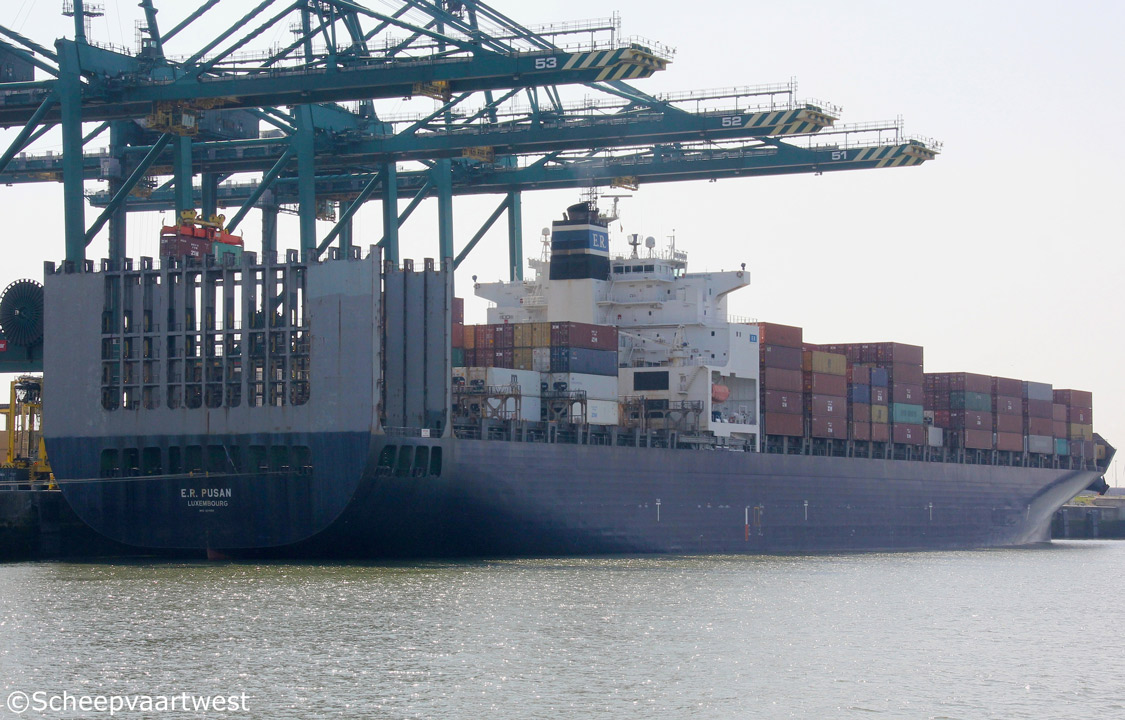

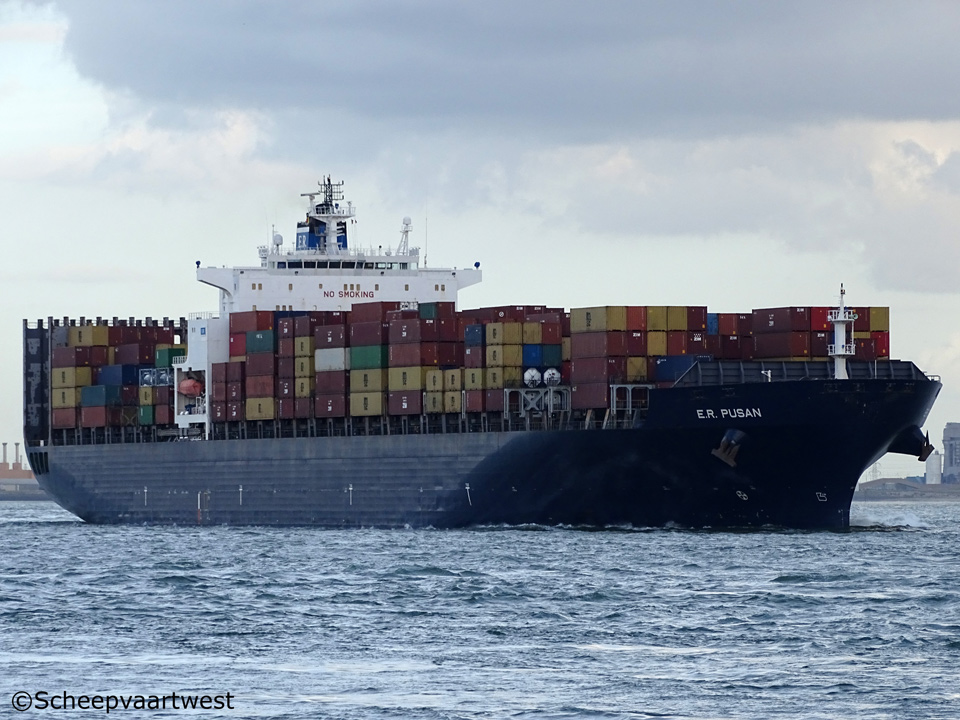

| WS 03/10/17 | Westerschelde 29/09/15 | Westerschelde 29/09/15 | Antwerpen 16/08/12 | Doel, Belgium 29/08/17 | Westerschelde 10/07/18 | |||||
 |
 |
 |
 |
 |
||||

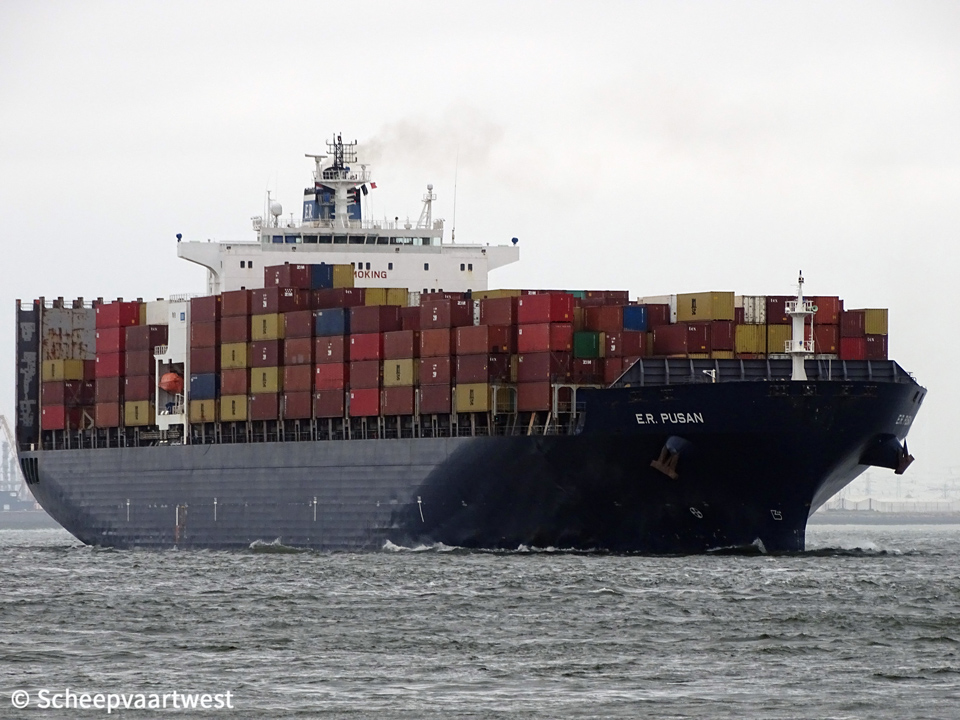

| Antwerpen 29/04/19 | Westerschelde 24/06/19 | Westerschelde 15/04/19 | Westerschelde 10/03/19 | Westerschelde 15/05/17 | ||||
|
Name |
E.R. PUSAN |
|
Previous names |
Launch as: 2000 E.R. Pusan 2000 - 2009 OOCL Los Angeles |
|
Type |
Cellular containership - Post-Panamax |
|
IMO-number |
9211169 |
|
Call sign |
D5OQ8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
2000 - 2004 Liberia, Monrovia 2004 - 2013 Germany,Hamburg - Call sign: DBUQ 2013 - 2017 G.D. Luxembourg, Luxembourg City - Call sign: LXEP |
|
GT |
66.289 |
|
DWT |
67.737 |
|
NT |
33.235 t |
|
Number of 20ft containers |
On deck: 3.406 In hold: 2.602 Total: 6.008 |
|
Container capacity 14t |
4.210 |
|
Reefer capacity |
On deck: 600 In hold: 200 Total: 800 |
|
Length |
277,23 m overall 263,15 m registered |
|
Breadth |
40,35 m extreme 40,00 m registered |
|
Draught |
14,03 m |
|
Forecastle |
255,25 m |
|
Poop |
7,90 m |
|
Freeboard |
3.639 mm |
|
Depth |
20,23 m |
|
Speed |
Max: 24,9 knots |
|
Built |
2000 |
|
Keel laid |
18/10/1999 |
|
Launch date |
03/02/2000 |
|
Delivery date |
28/04/2000 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard 530, Jangpyeong-ri, Sinhyeon-eup Geoje ,656-710 Kyongsang-namdo Republic of Korea |
|
Yard number |
1302 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12 K 90 MC - 2 stroke single acting 12 cylinder 900 x 2.550 mm combustion engine Mcr 55.700 kW/ 75.730 hp at 94,0 rpm Year of manufacture: 1999 Manufacturer: Samsung Heavy Industries Co., Ltd. 493, Banweol-dong Hwasung-si , Kyunggi-do 445-330 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 40,1 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 1.160,0 m² Year of manufacture: 1999 Manufacturer: Aalborg Boilers A/S 9100 Aalborg Kingdom of Denmark |
|
Electric installation |
3x Plants each 440/220 V - 3.625 kVA 1x Plant 440 V - 2.600 kVA 1x Plant 440 V - 188 kVA 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 2.100 kW / 2.600 kVA |
|
Generators |
3x MAN-B&W 7L32/40 - 4 stroke 7 cylinder 320 x 400 mm diesel engines each Mcr 3.100 kW connected with generators each 3.088 kW |
|
Emergency generator |
1x Diesel generatorset 188 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 16.500 litres - 25,0 bar 2x Receivers each 150 litres - 25,0 bar 1x Receiver 100 litres - 25,0 bar |
|
Bow thruster |
1x Transverse controllable pitch thruster - 2.000 kW / 2.219 hp forward |
|
Tank capacities |
Fuel oil: 8.737 m³ Ballast water: 15.057 m³ |
|
Anchor equipment |
3x Anchors weight each 15.400 kg Chain length: 742,50 m |
|
Handling gear |
Gearless |
|
Crew size |
22 |
|
Manager |
ZEABORN Ship Management GmbH & Cie. KG Ludwig-Erhard-Straße 22 20459 Hamburg Germany |
|
Previous manager |
E.R. Schiffahrt GmbH & Cie. KG Hohe Bleichen 12 20354 Hamburg Federal Republic of Germany |
|
Registered owner |
Fortyseventh Phoenix Shipping Inc. |
|
Scrapped |
26/06/20 Beached at Alang - India as: Pusan Liberia, Monrovia - Call sign: D5OQ8 |
|
Latest data adjustment |
18 February 2022 |
