| Zeebrugge 25 March 2010 |
 |
 |
|
| Zeebrugge 125/03/10 | Zeebrugge 118/03/10 |
|
Name |

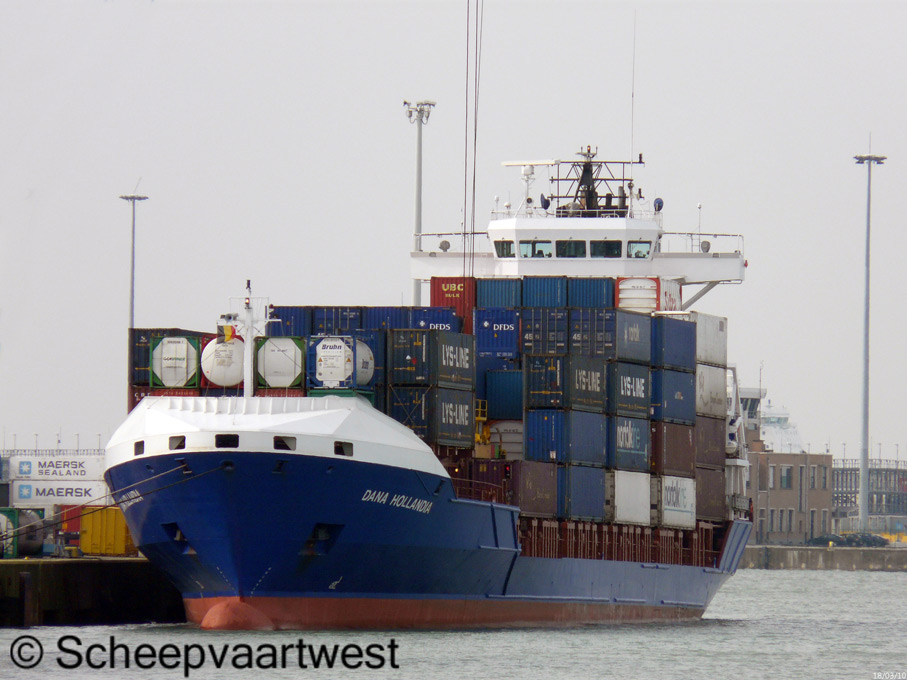

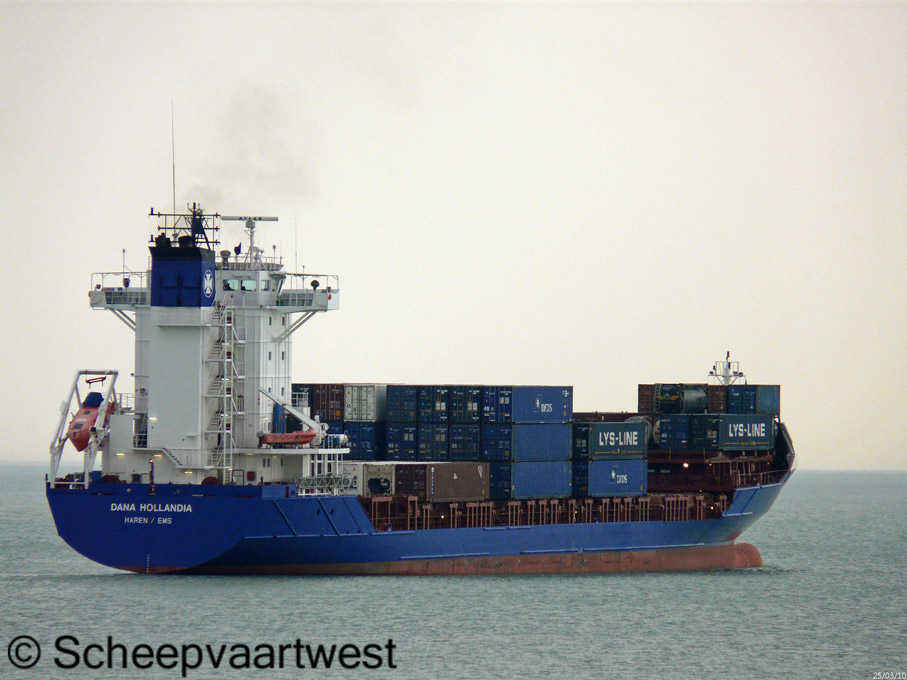

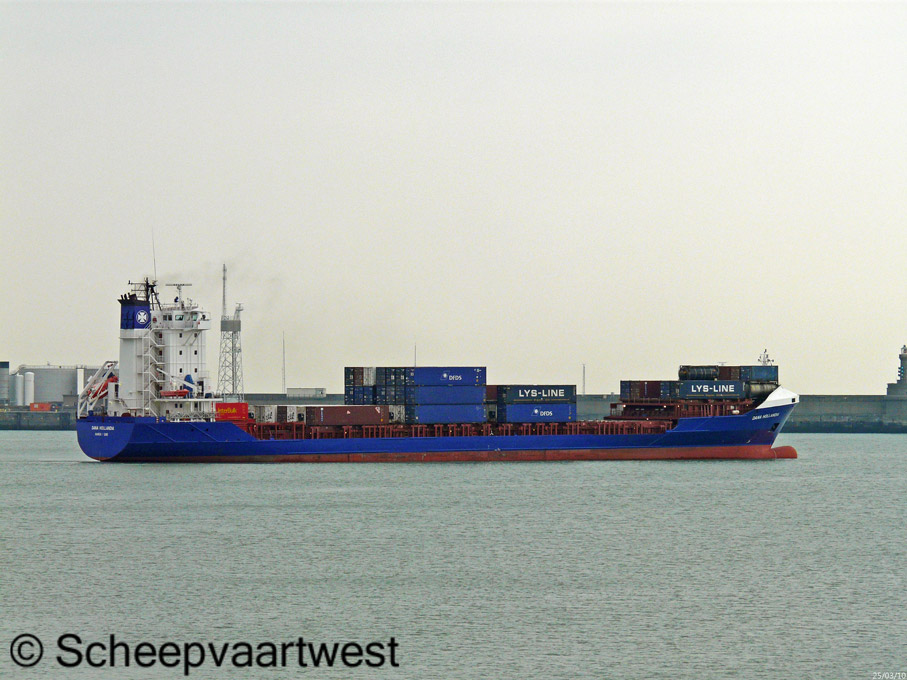

DANA HOLLANDIA |
|
Previous names |
Launch as: Cetus J 13.12.2002 Maersk Waterford 2003 Cetus J 2006 Maersk Waterford 05.10.2006 Dana Hollandia |
|
Type |
Cellular containership |
|
IMO-number |
9262883 |
|
Call sign |
DCEE2 |
|
Previous call sign |
V2BC2 |
|
Flag |
Germany |
|
Previous flag |
Antigua & Barbuda |
|
Port of registry |
Haren/Ems |
|
Previous port of registry |
St. John's |
|
GT |
6.370 t |
|
DWT |
8.372 t |
|
NT |
3.100 t |
|
Number of 20ft containers |
630 Deck: 440 Hold: 190 |
|
Container capacity at 14t |
406 |
|
Reefer capacity |
100 |
|
Length |
134,06 m overall 126,80 m between perpendiculars 127,40 m registered |
|
Breadth |
19,40 m registered |
|
Draught |
7,30 m |
|
Forecastle |
25,48 m |
|
Poop |
13,50 m |
|
Depth |
9,45 m moulded |
|
Speed |
Max.: 18,4 knots |
|
Built |
2002 |
|
Keel laid |
04.04.2002 |
|
Launch date |
20.09.2002 |
|
Date of completion |
08.12.2002 |
|
Builder |
Detlef Hegemann Rolandwerft GmbH & Co. KG |
|
Yard number |
200 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8 M 43 - 4 stroke single acting 8 cylinder 430 x 610 mm diesel engine - 7.200 kW / 9.655 bhp at 500 rpm Year of manufacture: 2002 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft at 171 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 14,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 148,0 m² Year of manufacture: 2002 Manufacturer: Aalborg Industries A/S Division Boiler Production |
|
Electric installations |
1x Plant 440/220 V - 1076 kVA 1x Plant 440 V - 1250 kVA 1x Plant 440 V - 500 kVA 1x Plant 24 V - 135 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 360 Ah |
|
Shaft alternator |
1.000 kW / 1.250 kVA |
|
Generators |
2x Main diesel generatorsets each 538 kVA / 430,4 kW |
|
Emergency generator |
1x Diesel generatorset 500 kVA |
|
Batteries |
2x Batteries for start emergency engine each 360 Ah 1x Battery for automation - 135 Ah |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar |
|
Bow thruster |
1x SCHOTTEL - 1.000 kW, forward |
|
Hatches |
3 Hatch 1: 14,95 x 13,25 m Hatch 2 & 3: 32,50 x 15,85 m |
|
Tank capacities |
Fuel oil:665 m³ Diesel oil: 95 m³ Fresh water: 45 m³ Water ballast: 3.729 m³ |
|
Anchor Equipment |
3x Anchors weight each 4.320 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Crew |
13 |
|
Crew size |
19 |
|
Manager |
Jüngerhans Maritime Services GmbH & Co. KG |
|
Operator |
D.F.D.S |
|
Owner |
Mare Schiffahrtsges. mbH & Co. KG MS "CETUS J" |
