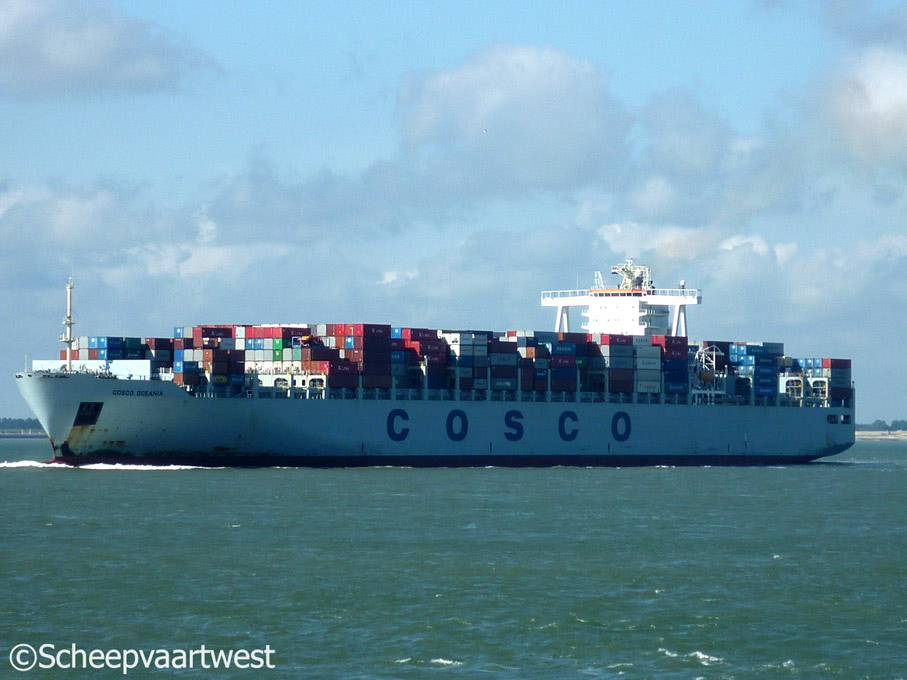

COSCO Oceania 03
Westerschelde 07 Jumly 2012



Name

COSCO OCEANIA

Type

Cellular containership

IMO-number

9334923

Call sign

VRDQ5

Flag

Hong Kong Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

GT

115.776 t registered

Suez: 119.031,05 t

DWT

111.385 t

NT

54.911 t registered

Suez: 105.547,97 t

Number of 20ft containers

10.020

Container capacity 14t

7.500

Reefer capacity

800

Length

348,50 m over all

330,50 m between perpendiculars

Breadth

45,60 m moulded

Draught

14,50 m

Freeboard

5.802 mm

Depth

27,20 m moulded

Speed

24,9 knots

Built

2008

Keel laid

10.09.2007

Launch date

24.12.2007

Date of completion

03.04.2008

Builder

Nantong Cosco KHI Ship Engineering Co., Ltd.

Nantong
China

Yard number

048

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

Water tight: 25

Main engine

1x MAN-B&W 12K98MC MK6 - 12 cylinder 980 x 2.660 mm diesel engine - 68.640 kW at 94,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1

Manufacturer: Nakashima Propeller Co.,Ltd.

Steam piping system

Oil fired boiler Mission OM 6L - 6,0 bar

Heating surface: 73,1 m²

Manufacturer: Aalborg Industries K.K.

Unfired exhaust gas boiler

Generators

4x Dathatsu 8DK36 main diesel engines with Taiyo HEW 75C-10 generators each 4.266 kW

Manufacturer: Taiyo Electric Co., Ltd.

Bow thruster

1x 3.100 kW

Hold capacity

247.608 m³

Number of tanks

Ballast: 29

Fuel oil: 17

Lubricating oil: 7

Diesel oil: 3

Chain: 2

Sludge: 2

Waste water: 1

Fresh water: 1

Sea water: 1

Potable water: 1

Tank capacities 100%

Diesel oil: 786 m³ / 707,4 t

Fresh water: 704,1 m³

Fuel oil: 11.962,5 m³ / 11.723,25 t

Lube oil: 876 m³ / 788,4 t

Ballast: 31.478 m³ / 32.264,95 t

Handling gear

Gearless

Manager

Cosco Shanghai Shipmanagement
Shanghai
China

Operator

COSCO - China Ocean Shipping Company

Owner

Shanghai Ocean Shipping Company
NO. 1551 - 1555 Chang Yang Road
Shanghai
China

Registered owner

Cosco Oceania Shipping Limited
