| Zeebrugge 05 July 2022 |
 |
 |
 |
 |
 |
||||

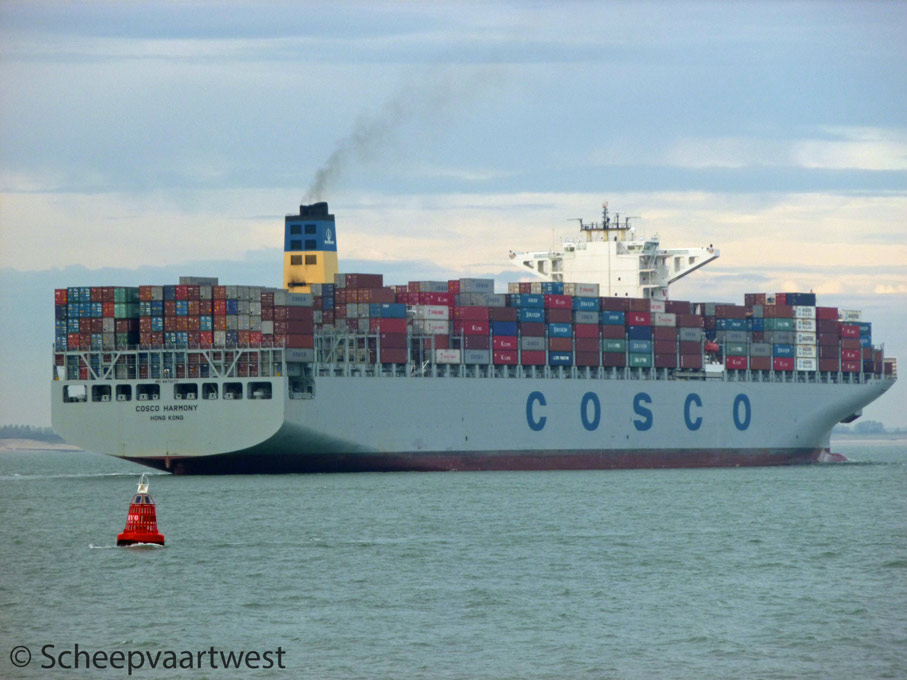

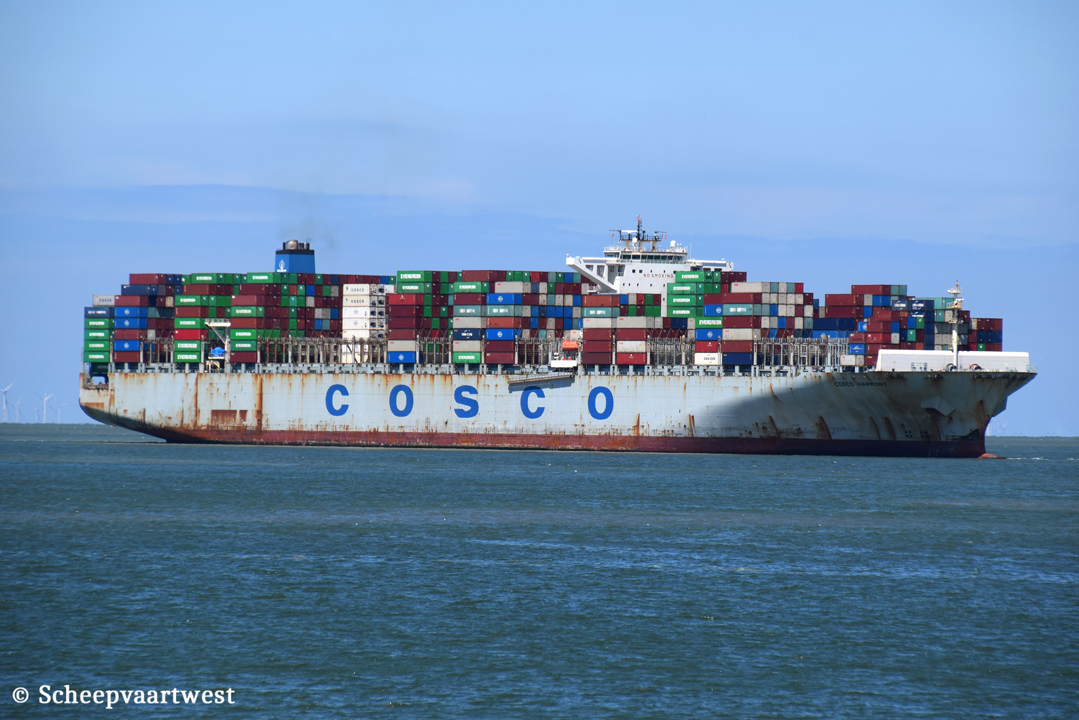

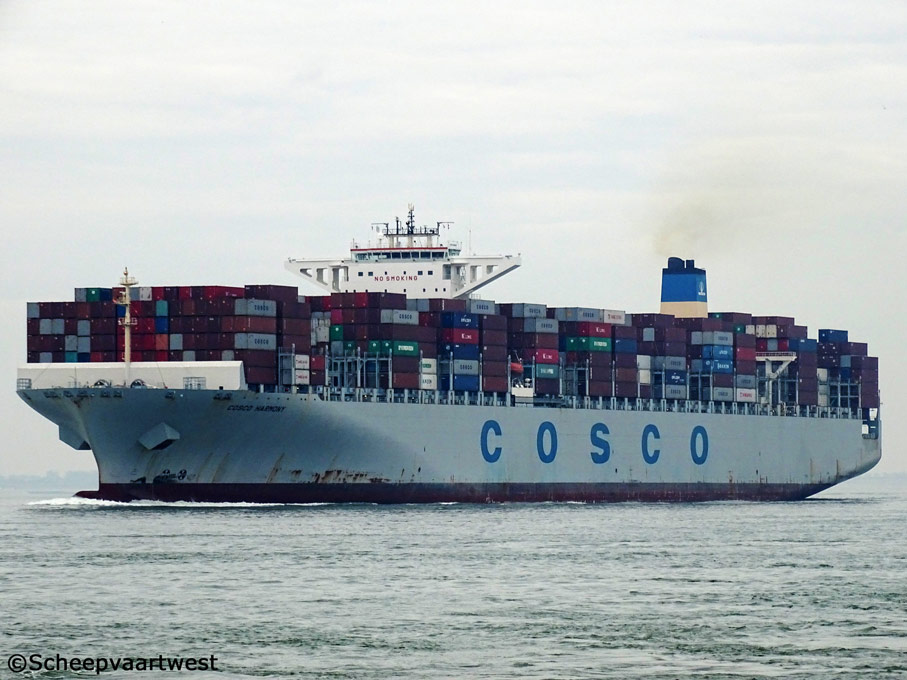

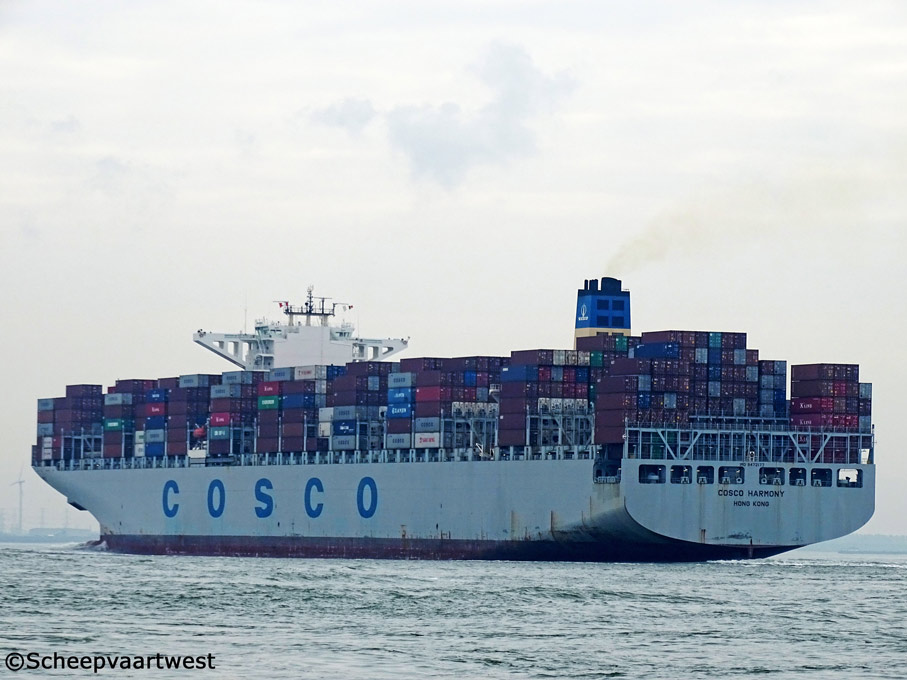

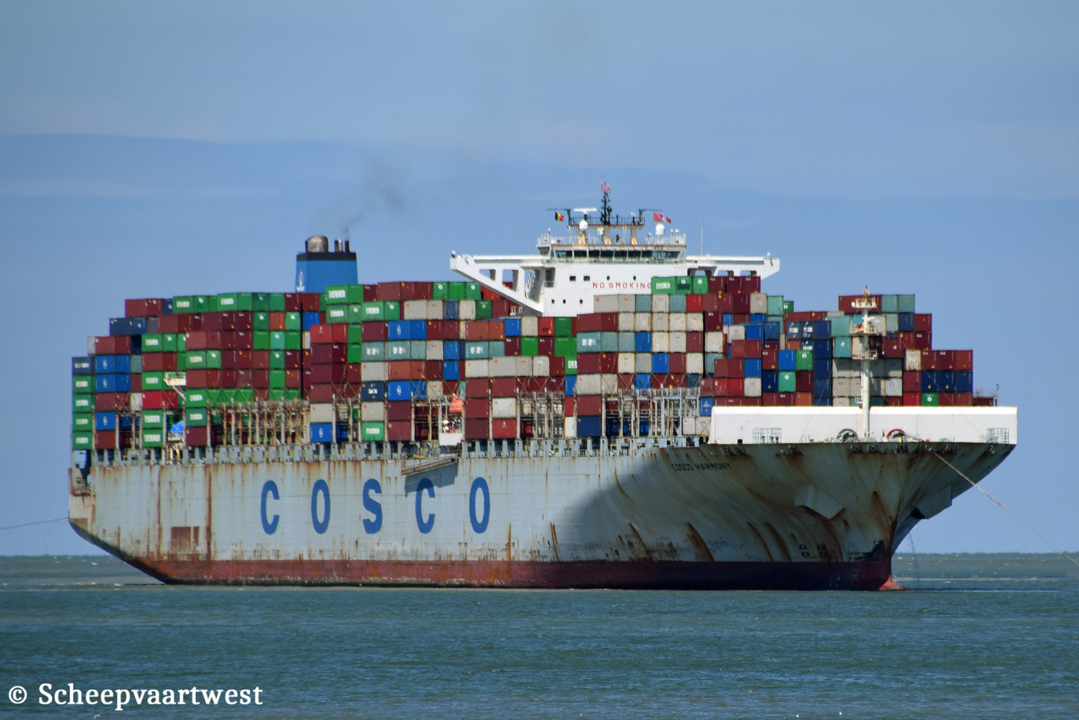

| Zeebrugge 05/07/22 | Zeebrugge 05/07/22 | Westerschelde 19/10/15 | Westerschelde 19/10/15 | Westerschelde 05/10/12 |
|
Name |
COSCO HARMONY |
|
Type |
Cellular containership |
|
IMO-number |
9472177 |
|
Call sign |
VRJA4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
141.823 t |
|
DWT |
Summer: 140.453 t |
|
NT |
61.164 t |
|
Displacement |
184.788 t |
|
Number of 20ft containers |
13.114 |
|
Container capacity 14t |
9.000 |
|
Reefer capacity |
1.000 |
|
Length |
366,00 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
4.959 mm |
|
Depth |
29,85 m |
|
Speed |
24,6 knots |
|
Built |
2011 |
|
Keel laid |
11/04/2011 |
|
Delivery date |
19/08/2011 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. 93 Daebul-Ro Samho-Eup, Yeongam-Gun, 58462 South Korea |
|
Yard number |
S453 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 12K98ME - 2 stroke 12 cylinder 980 x 2.400 combustion engine 68.840 kW / 98.246 hp at 104,0 rpm |
|
Propellers |
1x Fixed pitch propulsion system |
|
Boilers |
1x Exhaust gas boiler 1x Oil Fired boiler |
|
Generators |
4x Main diesel generatorsets each 3.000 kW |
|
Bow thrusters |
2x 1.800 kW each |
|
Number of holds |
10 |
|
Tank capacities |
Diesel oil: 1.038,70 m³ Fresh water: 500,40 m³ Lube oil: 737,30 m³ Fuel oil:: 13.145,80 m³ |
|
Lifting equipment |
2x Engine room crane - SWL 15,0 t each 1x Monorail crane - SWL 15,0 t 1x Provision crane port - SWL 4,0 t 1x Provision crane starboard - SWL 4,0 t |
|
Cargo gear |
Gearless |
|
Crew |
25 |
|
Commerical manager |
COSCO Shipping Lines Co Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
ISM manager |
Seaspan Shipmanagement Ltd. Suite 2600, 200, Granville Street Vancouver BC V6C 1S4 Canada |
|
Operator |
COSCO - China Ocean Container Line |
|
Registered owner |
Seaspan Corporation Unit 2, 16th Floor, W668 Building, 668, Cheung Sha Wan Road, Kowloon Hong Kong China |
|
Latest data adjustment |
16 July 2022 |
