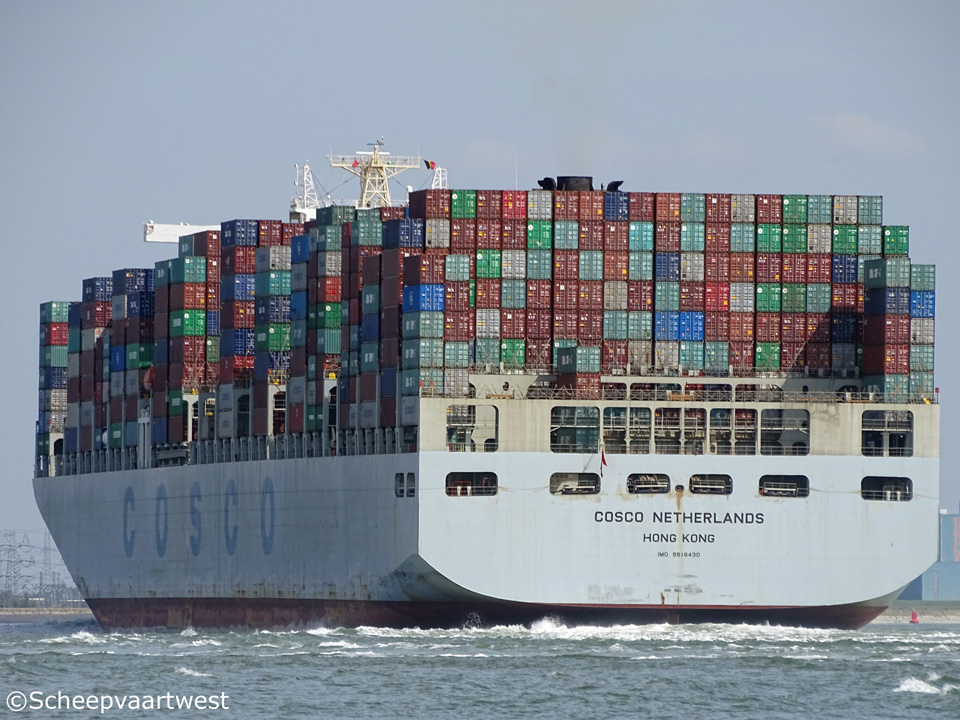

COSCO Netherlands 01

Westerschelde 07 August 2017



Name

COSCO NETHERLANDS

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9516430

Call sign

VRMR5

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

153.666 t registered

Suez: 159.758,81 t

DWT

Summer: 157.000 t

NT

65.592 t registered

Suez: 144.606,03 t

Number of 20ft containers

13.386

Container capacity 14t

9.000

Length

365,90 m overall

348,00 m between perpendiculars

Breadth

51,20 m moulded

Draught

15,50 m

Freeboard

7.493 mm

Depth

29,85 m moulded

Speed

Max.: 23,0 knots

Built

2013

Keel laid

18.10.2011

Launch date

21.08.2013

Delivery date

18.11.23

Builder

Nantong COSCO Khi Ship Engineering Co., Ltd.

Nantong
China

Yard number

NE114

Hull material

High strength steel

Forged steel

Watertight bulkheads

13

Main engine

1x HHI MAN B&W 12K98ME7 - 12 cylinder 980 x 2.660 mm combustion engine 72.240 kW at 92,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch solid keyless

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Unfired exhaust gas boiler - 10,0 bar

1x Fired boiler - 8,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

2x Main diesel generatorsets each 3.000 kW

3x Main diesel generatorsets each 2.500 kW

Manufacturer: HHI Electro Electric System

Number of holds

10

Hold capacity

325.414,3 m³

Number of tanks

Ballast: 22

Sea water: 14

Fuel oil: 10

Lubricating oil: 9

Diesel oil: 3

Fresh water: 3

Chain: 2

Waste water: 2

Hydraulic oil: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 739,8 m³ / 665,82 t

Freshwater: 700,2 m³

Fuel Oil: 12.070,1 m³ / 11.819,03 t

Hydraulic Oil: 19,4 m³

Lube Oil: 819,6 m³ / 731,76 t

Tank Ballast: 28.167,2 m³/ 28.871,38 t

Lifting equipment

1x Mono-rail crane - SWL 13,0 t

Manufacture: Nantong Sekigahara Machinery Manufacturing Co., Ltd.

1x Provision crane - SWL 1,5 t

1x Provision crane - SWL 4,0 t

Manufacture: South China Marine Machinery Limited Corporation

Cargo gear

Gearless

Manager

COSCO Container Lines
NO. 378 Dong Da Ming Road
Shanghai
China

Operator

COSCO - China Ocean Shipping Company

Registered owner

COSCO Netherlands Shipping Limited

Latest data adjustment

02 September 2017
