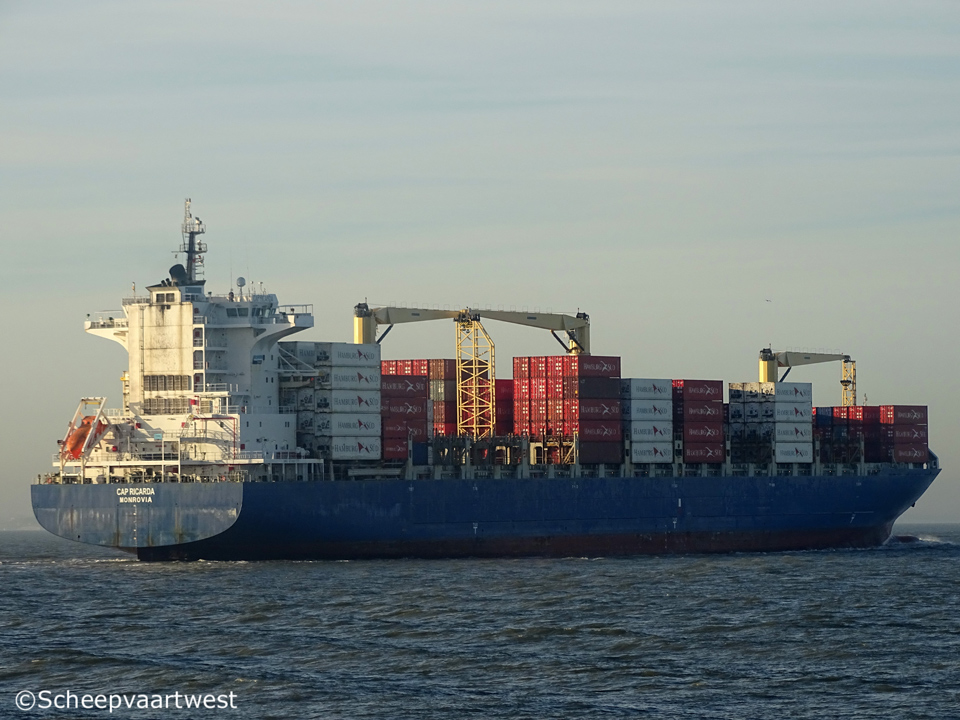

Cap Ricarda 03

Westerschelde 19 December 2017

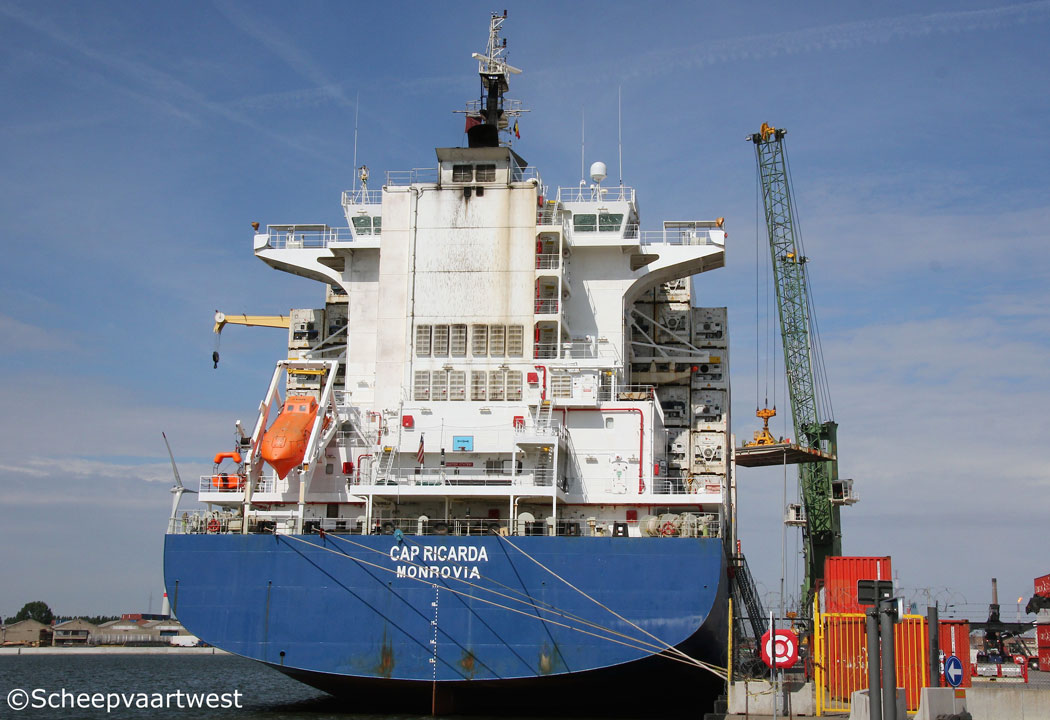

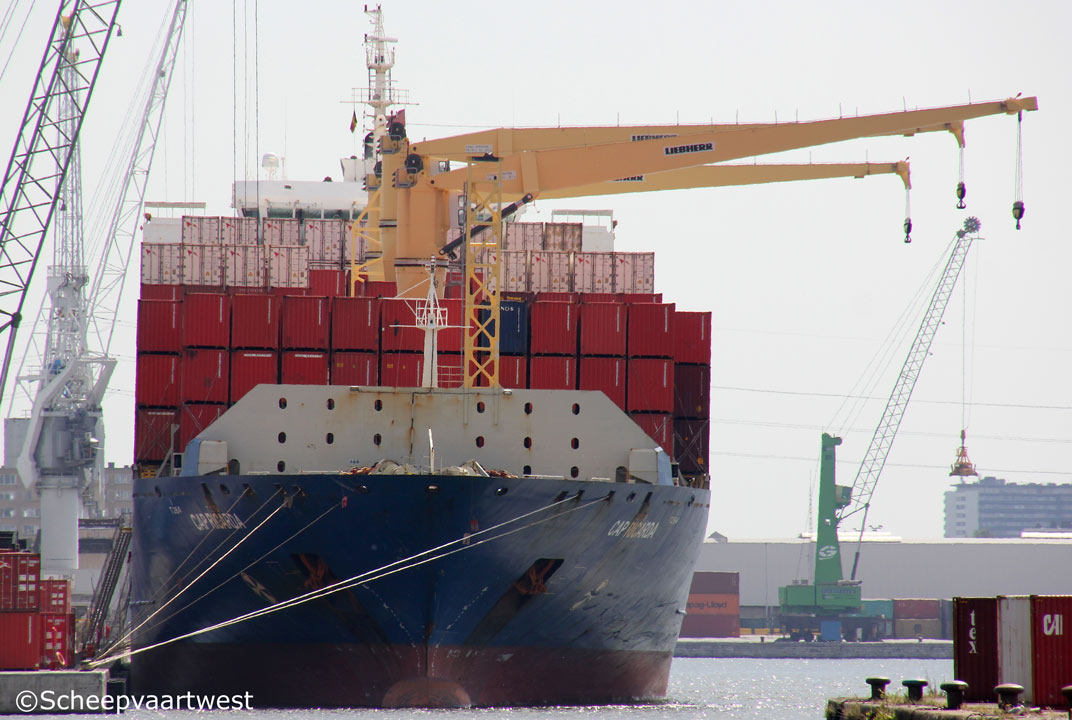

Cap Ricarda 02   Cap Ricarda 01
Antwerpen 03/07/17 Antwerpen 03/07/17


Name

CAP RICARDA

Previous names

2008 - 2013 Maersk Jambi

2013 - 2016 Austral

Type

Cellular Containership - Feedermax

IMO-number

9399777

Call sign

A8PX6

Flag

Liberia

Port of registry

Monrovia

GT

32.984 t

DWT

Summer: 35.555,7 t

NT

13.452 t

Number of 20ft containers

In hold: 1.298

On deck: 1.499

Total: 2.797

Number of 40ft containers

1.372

Container capacity 14t

2.116

Reefer capacity

638

Length

225,73 m overall

212,50 m between perpendiculars

Breadth

31,23 m extreme

31,00 m moulded

Draught

12,20 m

Keel to mast end

56,00 m

Depth

19,70 m

Speed

Service: 22,2 knots

Built

2008

Keel laid

08/05/2006

Launch date

21/05/2008

Date of completion

04/09/2008

Builder

Zhejiang YangFan Shipbuilding Co. Ltd.

Zhoushan ZJ Yard

China

Yard number

2051

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 7L70MC-C - 2 stroke single acting 7 cylinder 700 x 2.360 mm combustion engine Mcr 22.890 kW / 31.130 bhp at 108,0 rpm

Builder: Dalian Marine Diesel Works - China

Propellers

1x Fixed pitch propeller - aft at 108,0 rpm

Boilers

1x Auxiliary boiler, composite

Generators

4x Yanmar 6EY26L - 4 stroke 6 cylinder 260 x 385 mm diesel engines each Mcr 1.8140 connected with generators each 1.712 kW

Emergency generator

1x Sisu diesel 645 DSBAG diesel generatorset 180 kW

Bow thruster

1x Tunnel thruster 1.300 kW / 1.767 bhp, forward

Tank capacities

Ballast: 14.26,4 m³

Anchor equipment

Length: 654,60 m

Diameter: 78 mm

Cargo gear

3x Cranes - SWL 45,0 t each

Manager

NSC Shipping GmbH & Cie. KG

Van-der-Smissen-Str. 9

22767 Hamburg

Germany

Registered owner

FS Austral Limited

Renamed

2018 CMA CGM Pointe Caraibe

Liberia, Monrovia – Call sign: A8PX6

Latest data adjustment

21 January 2023
