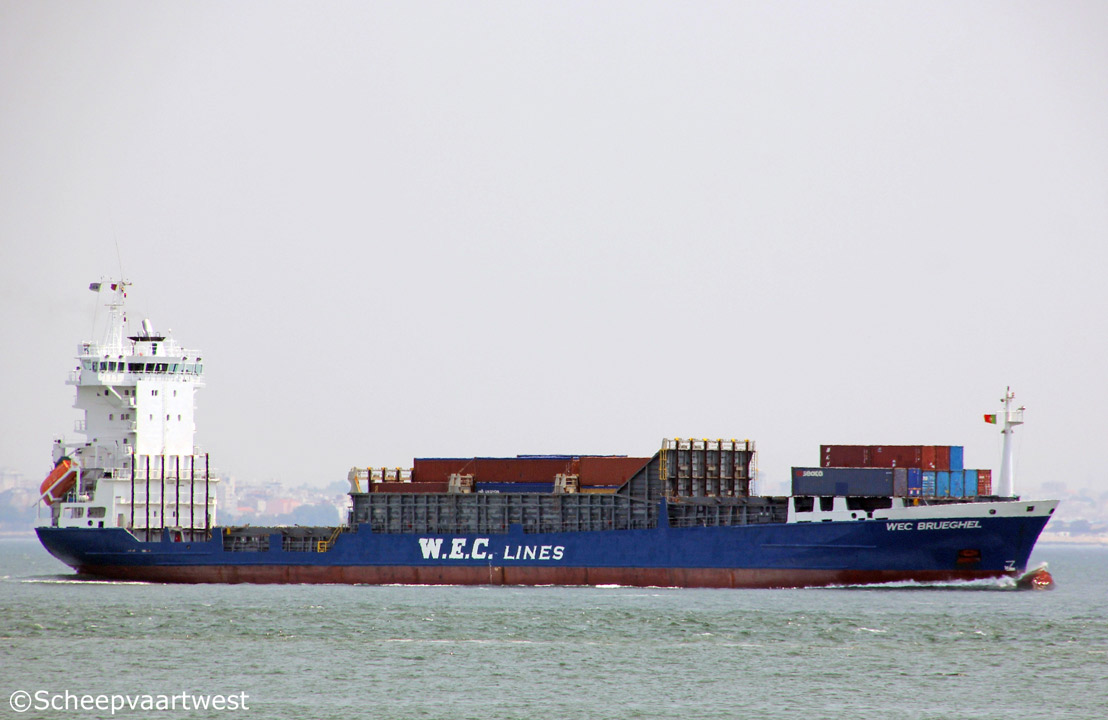

WEC Brueghel 01

Lisboa, Portugal 18 June 2017



Name

WEC BRUEGHEL

Previous names

1998 - 12.2003 Alk

12.2003 - 04.2004 K Ocean

04.2004 - 05.2008 City Of Oporto

05.2008 - 05.2010 K Ocean

Type

Cellular containership

IMO-number

9143972

Call sign

MCXD5

Flag

United Kingdom

Port of registry

London

Previous flags

1998 - 2003 Germany

GT

6.362 t

DWT

Summer: 7.224 t

NT

3.998 t

Number of 20ft containers

In closed holds: 108

Open holds: 252 + 36 FEU

On deck: 268

Total: 628 + 36 FEU

Container capacity 14t

380

Reefer plugs

100 reefer plugs on deck 380V / 50 Hz / 3 phases

Length

121,35 m overall

114,90 m between perpendiculars

Breadth

18,20 m extreme

Draught

6,69 m

Depth

8,30 m

Speed

Max.: 16,4 knots

Built

1998

Keel laid

07.12.1995

Launch date

22.06.1998

Delivery date

15.08.1998

Builder

JJ Sietas Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1148

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull partly double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 8L40/54 - 4 stroke 8 cylinder diesel engine 5.300 kW at 514 rpm

Reduced power: 3.380 kW

Propellers

1x Controllable pitch propeller - aft at 188 rpm

Electric installations

1x Plant 380/220 V - 380 kVA
1x Plant 380/220 V - 380 kVA
1x Plant 380 V - 1.100 kVA
1x Plant 380 V - 100 kVA

Shaft generator

1x 880 kW / 1.100 kVA

Generators

2x Caterpillar 3408 DITA diesel generatorsets each 304 kW / 380 kVA

Emergency generator

1x 3304 DIT diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 550 kW, forward

Number of holds

4

Cargo hold capacity

Grain: 13.852 m³

Bale: 12.536 m³

Number of hatches

3

Hatches type

Hydraulic operated folding steel hatch covers

Tank capacities

Ballast: 2.134,54 m³

Fuel oil: 625 m³

Anchor equipment

3x Anchors weight each 4.050 kg

Length: 522,50 m

Diameter: 50

Lifting equipment

1x Crane - SWL 1,0 t

Cargo gear

Gearless

Crew size

19

Manager

K&K Schiffahrts GmbH & Co. KG
Ballindamm 17
20095 Hamburg
Germany

Operator

W.E.C. Lines

Registered owner

MS "K-OCEAN" Maritime GmbH & Co. KG

Latest data adjustment

30 July 2017
