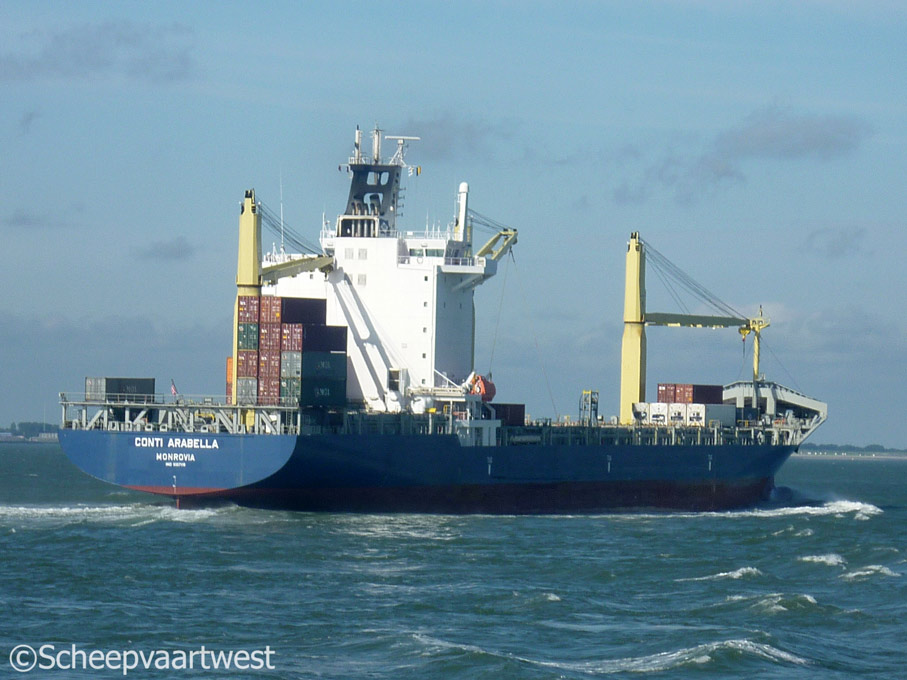

Conti Arabella 01
Westerschelde 07 July 2012



Name

CONTI ARABELLA

Previous names

Launch as: Conti Arabella

2007-04.1021 CMA CGM Fortuna

Type

Containership

IMO-number

9357119

Call sign

A8OF7

Flag

Liberia

Port of registry

Monrovia

GT

22.801 t

DWT

30.562 t

NT

11.010 t

Number of 20ft containers

2.127

Number of 40ft containers

1.027

Container capacity 14t

1.524

Reefer capacity

In hold: 180

On hatch: 220

Total: 400

Length

204,44 m overall

195,30 m registered

Breadth

28,00 m registered

Draught

11,00 m

Depth

15,20 m moulded

Speed

22,3 knots

Built

2007

Keel laid

03.08.2007

Launch date

07.11.2007

Date of completion

20.12.2007

Builder

Aker MTW Werft GmbH
Wendorfer Weg 5
23966 Wismar
Federal Republic of Germany

Yard number

144

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

2x Wärtsilä 9 L46 D - 4 stroke 9 cylinder diesel engine - each 10.395 kW total 20.790 kW at 500 rpm

Year of manufacture: 2007

Manufacturer: Wärtsilä Finland Oy
Staalarminkatu 45
20810 Turku
Finland

Propellers

1x Controllable pitch propeller - aft at 105,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 150,0 m²

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 15,22 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao ,266300 Shandong
People's Republic of China

Electric installation

3x Plants each 450 V - 2.000 kVA

1x Plant 450 V - 1.625 kVA

1x Plant 450 V - 220 kVA

1x Plant 24 V - 120 Ah

1x Plant 24 V - 140 Ah

1x Plant 24 V - 140 Ah

Shaft generator

1x 1.625 kVA / 1.300 kW

Generators

3x Wärtsilä 9L20D main diesel generatorsets each 2.000 kVA / 1.600 kW

Emergency generator

1x Diesel generatorset 220 kVA

Batteries

1x Battery for automation 140 Ah

2x Batteries for UPS radio each 140 Ah

1x Battery for start emergency engine 120 Ah

Compressed air receivers

2x Receivers each 2.000 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

1x Receiver 250 litres - 8,0 bar

Bow thruster

1x Transverse thruster - 1.000 kW, forward

Anchor equipment

3x Anchors weight each 8.700 kg

Chain length: 632,50 m

Lifting devices

1x Crane - SWL 45,0 / 40,0 / 25,0 t

2x Cranes each SWL 45,0 / 40,0 / 36,0 / 25,0 t

Crew size

26

Manager

NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG
Harburger Str. 47-51
21614 Buxtehude
Federal Republic of Germany

Registered owner

Conti 56. Container Schifffahrts-GmbH & Co. KG MS "CONTI ARABELLA"
Paul-Wassermann-Str. 5
81829 München
Federal Republic of Germany
