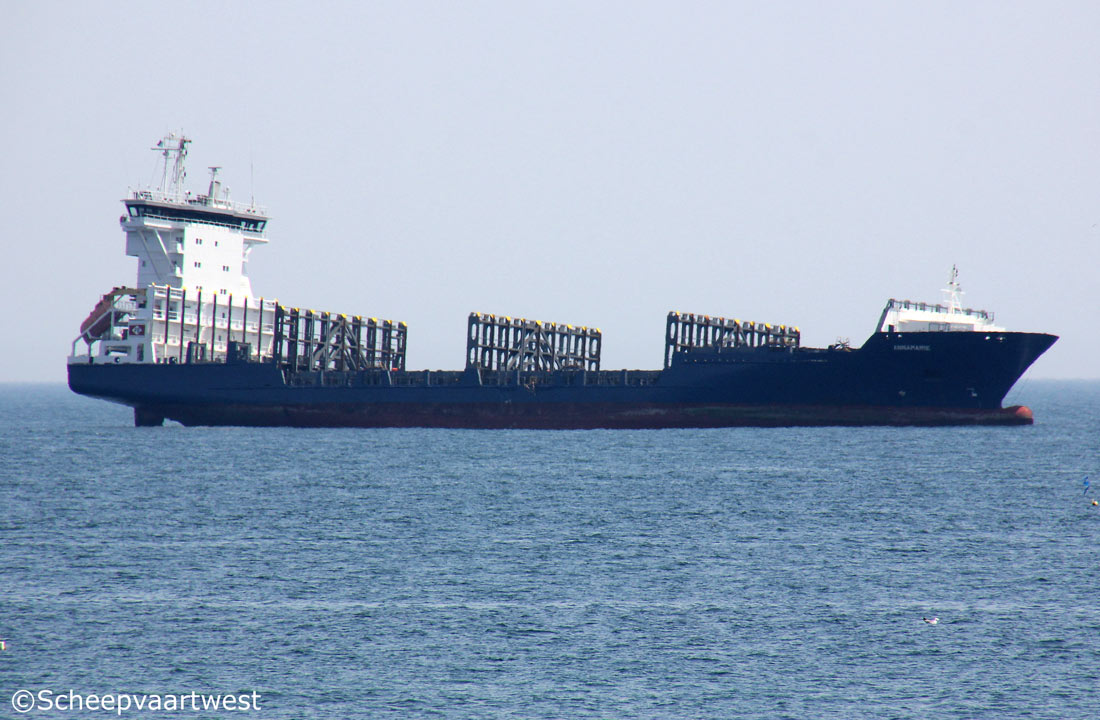

Annamarie 01

Cascais, Portugal 19 June 2017



Name

ANNAMARIE

Previous names

2003 Launch as: Avilia

09.2003 - 09.2008 Maersk Falsterbo

Type

Cellular containership

IMO-number

9287687

Call sign

CQFZ

Flag

Portugal

Port of registry

Madeira

Previous flags

2003 - 2011 United Kingdom

2011 - 2016 Antigua & Barbuda, St. John's

GT

7.519 t

DWT

8.645 t

NT

3.570 t

Number of 20ft containers

In hold: 226

On hatches: 596 - 4 FEU

Total: 822 + 4 FEU

Container capacity 14t

516

Reefer plugs

150 Reefer plugs on deck 400V/50 Hz/3 phases

Length

137,50 t overall

126,00 m between perpendiculars

Breadth

21,55 m extreme

21,30 m moulded

Draught

7,46 m

Depth

9,36 m

Speed

Max.: 19,4 knots

Built

2003

Keel laid

17.06.2002

Launch date

30.04.2003

Date of completion

04.09.2003

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88
Hamburg
Germany

Yard number

1215

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 9M43 - 4 stroke single acting 9 cylinder diesel engine 7.950 kW at 500 rpm

Propellers

1x Controllable pitch propeller - aft at 137 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 51,7 m²

1x Thermal oil heater, exhaust heated - 10,0 bar

Heating surface: 212,0 m²

Electric installations

1x Plant 380/220 V - 1.250 kVA
1x Plant 380 V - 1.625 kVA
1x Plant 380 V - 290 kVA
1x Plant 24 V - 140 Ah
1x Plant 400 V - 16 kVA

Shaft generator

1x 1.625 kVA / 1.220 kW

Generators

2x Caterpillar 3412 DITA main diesel generatorsets each 625 kVA / 500 KW

Emergency generator

1x Caterpillar 3406 DITA main diesel generatorset 290 kVA

Batteries

2x Batteries for start emergency engine each 140 Ah
1x Battery for start main engine 16 kVA

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

Bow thruster

1x Transverse thruster BRUNVOLL - 750 kW, forward

Number of holds

4x Box holds, steel floored

Hold 1: 12,60 x13,05 m
Hold 2: 12,70 x18,26 m
Hold 3-4: 25,40 x18,26 m each

Cargo hold capacity

Grain: 11.600 m³

Hold ventilation

Mechanical 6 air-change/h

Number of hatches

4

Hatch 1: 12,60 x13,05 m
Hatch 2: 12,70 x18,26 m
Hatch 3-4: 25,40 x18,26 m each

Hatch type

Hydraulic operated folding steel hatch covers

Tank capacities

Fuel oil: 778 m³

Fresh water: 85 t

Ballast: 3.736,3 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Length: 554,00 m

Diameter: 54 mm

Cargo gear

Gearless

Crew size

19

Manager

Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg
Germany

Registered owner

MS "ANNAMARIE" Schiffahrts GmbH & Co. KG

Latest data adjustment

29 July 2017
