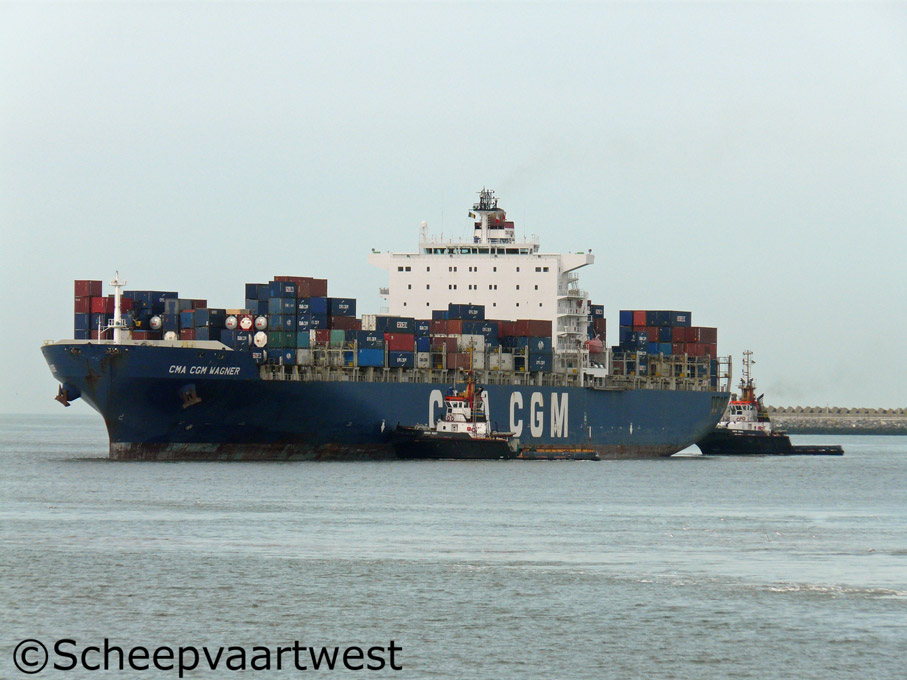

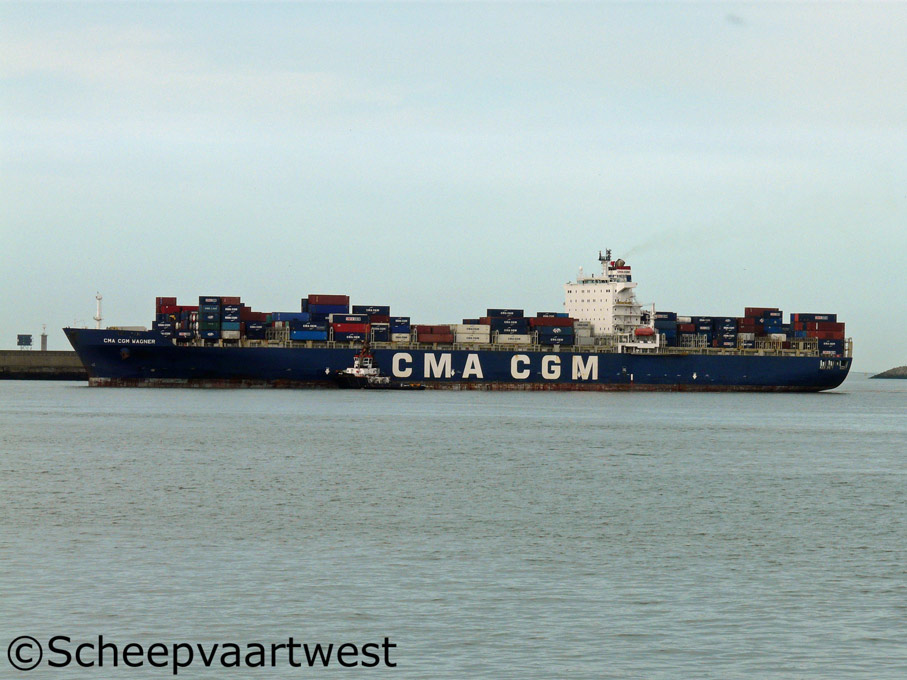

| Zeebrugge 14 February 2011 |
 |
 |
|

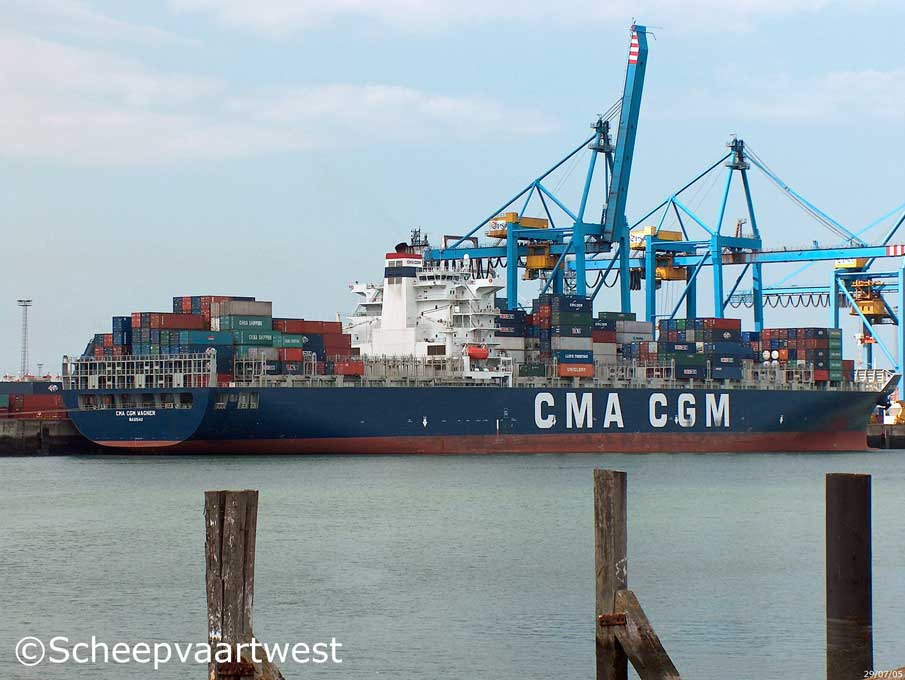

| Zeebrugge 14/02/11 | Zeebrugge 29/06/05 |
|
Name |
CMA CGM WAGNER |
|
Type |
Cellular containership |
|
IMO-number |
9280665 |
|
MMSI-number |
235068274 |
|
Call sign |
2BPT9 |
|
Previous call sign |
C6TH8 |
|
Flag |
United kingdom |
|
Previous flag |
09.12.2008 Bahamas |
|
Port of registry |
London |
|
Previous port of registry |
Nassau |
|
GT |
65.247 t Suez: 67.792 t |
|
DWT |
Summer: 73.234 t |
|
NT |
37.549 t Suez: 56.516 t |
|
Number of 20ft containers |
5.782 |
|
Container capacity 14t |
4.390 |
|
Reefer points |
500 |
|
Length |
277,28 m overall |
|
Breadth |
40,00 m overall |
|
Draught |
Summer: 14,50 m |
|
Freeboard |
Summer: 6.662 mm |
|
Depth |
24,30 m |
|
Speed |
24,5 knots |
|
Built |
2004 |
|
Date of order |
01.01.2002 |
|
Date of completion |
28.10.2004 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Goeje Shipyard South Korea |
|
Yard number |
1464 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
12 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm internal combustion diesel engine - 57.114 kW / 77.600 hp at 104,0 rpm Built: 2004 Builder: Hyundai Heavy Industries Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Number of screws |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO Aalborg 41,40 m² - 9,0 bar |
|
Electrical installation |
Power voltage:440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 2.100 kW |
|
Generators |
3x Main diesel generatorsets 3.375 kVA - 2.700 kW - 3.861 hp |
|
Emergency Generator |
1x Diesel generatorset 188 kVA - 150 kW - 270 hp |
|
Bow thruster |
Yes |
|
Cargo holds |
8 |
|
Hatchways |
8 1x 12,60 x 15,50 m 1x 12,60 x 30,60 m 6x 12,60 x 35,00 m |
|
Fuel oil capacity |
9.092 m³ |
|
Lifting equipment |
2x Cranes - SWL 12,5 t each |
|
Cargo gear |
Gearless |
|
Crew |
20 |
|
Manager |
CMA CGMMarseille |
|
Operator |
CMA CGM |
|
Owner |
A&L CF September (3) Limited |
|
Renamed |
09.2016 Hammonia Francia |
