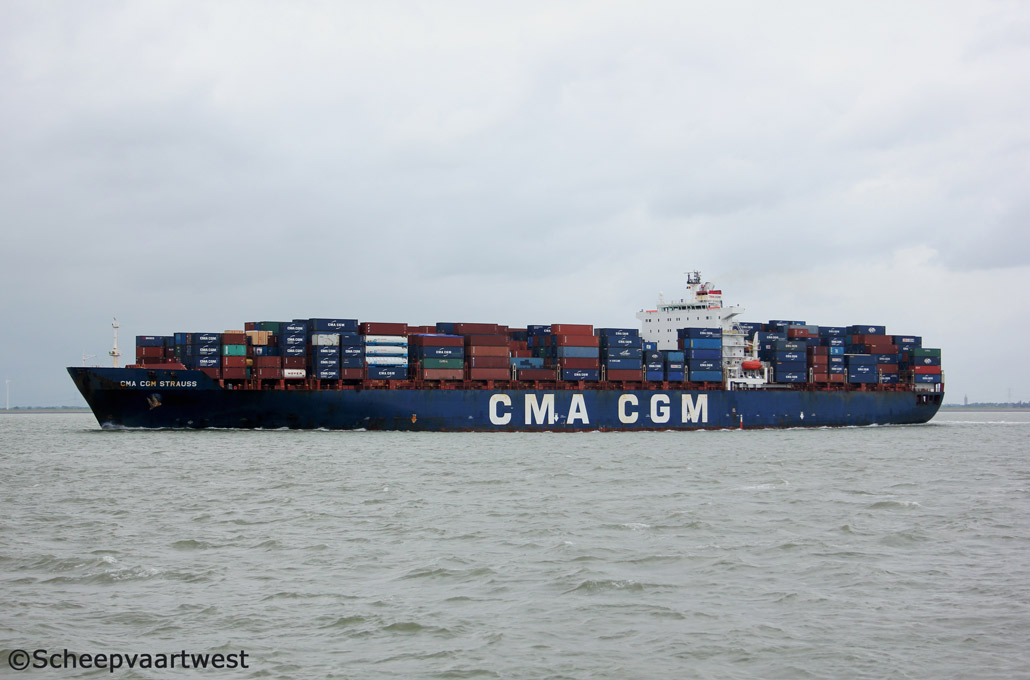

CMA CGM Strauss 06

Westerschelde 17 August 2014

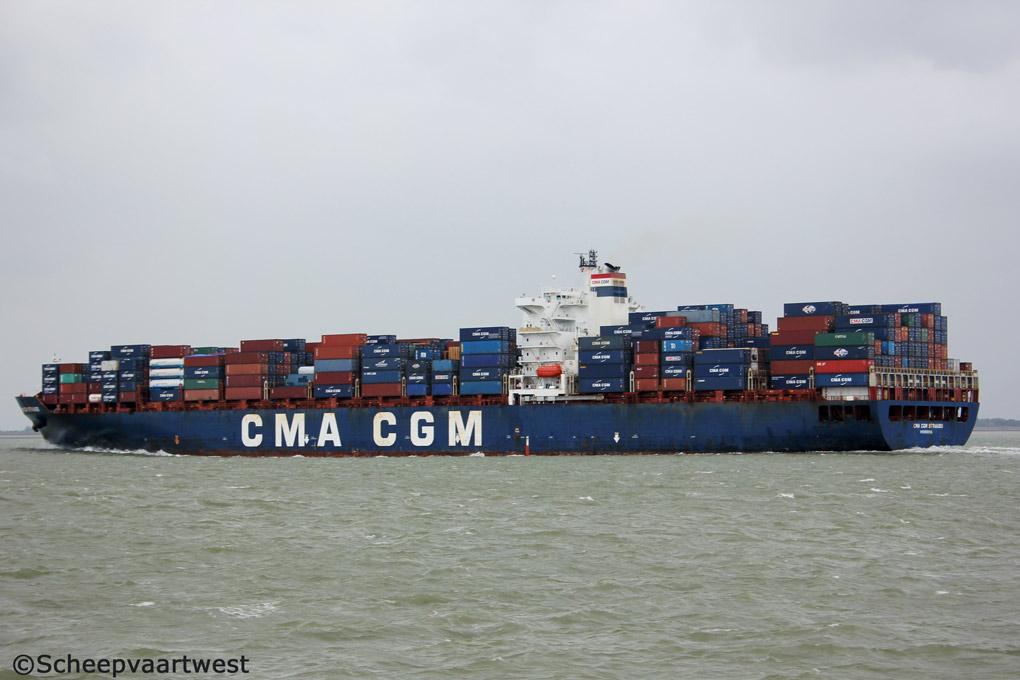

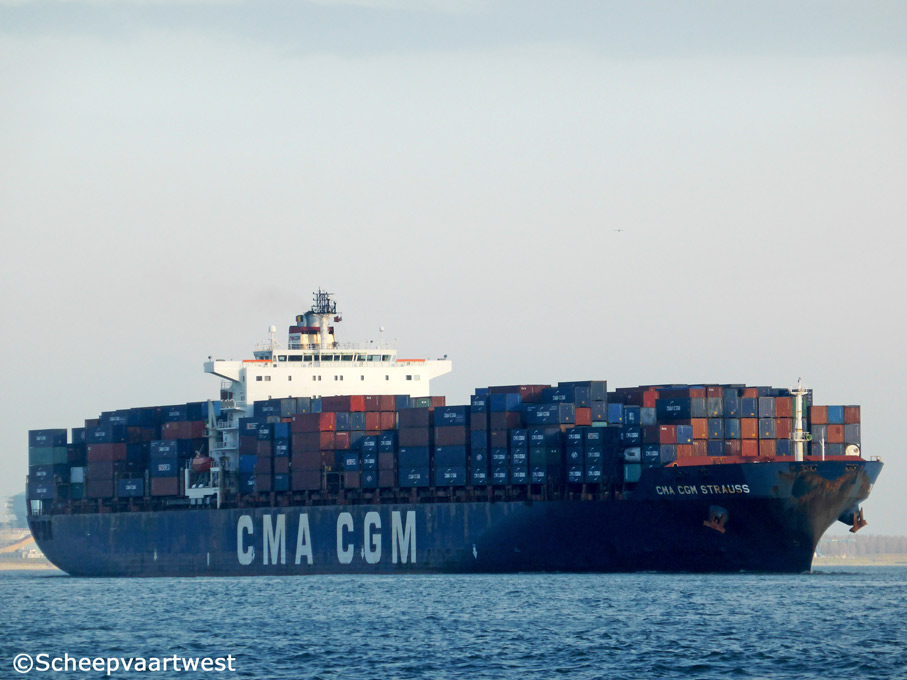

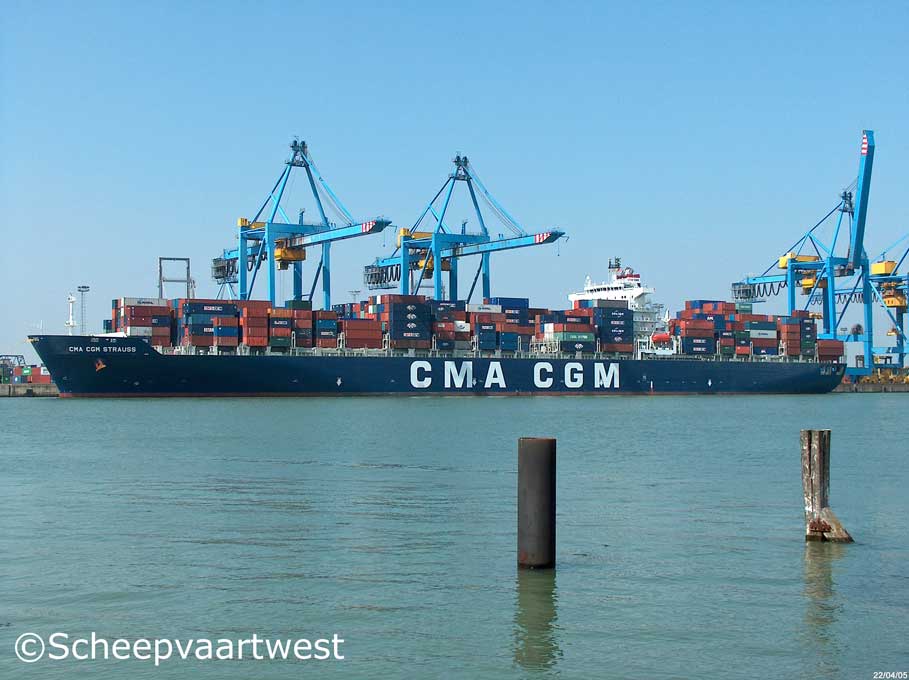

CMA CGM Strauss 07   CMA CGM Strauss   CMA CGM Strauss 08
Westerschelde 17/08/14 Zeebrugge 22/04/05 Westerschelde 11/10/14



Name

CMA CGM STRAUSS

Type

Cellular containership

IMO-number

9280641

Call sign

D5CF5

Flag

Liberia

Port of registry

Monrovia

Previous flags

Bahamas, Nassau - Call sing: C6TH6

GT

65.247 t

Suez: 67.792 t

DWT

Summer: 73.234 t

NT

37.549 t

Suez: 56.516 t

Number of 20ft containers

5.782

Container capacity 14th

4.390

Reefer point

500

Length

277,28 m overall
260,06 m between perpendiculars

Breadth

40,00 m overall

Draught

Summer: 14,50 m

Freeboard

Summer: 6.662 mm

Depth

24,30 m

Speed

24,5 knots

Built

2004

Date of order

01.01.2002

Date of completion

22.09.2004

Builder

Samsung Shipbuilding & Heavy Industries Co., Ltd.
Goeje Shipyard
Goeje (Kyungnam)
South Korea

Yard number

1462

Hull material

Steel

Hull type

Single hull

Watertight compartments

12

Continuous decks

2

Propelling engine

1x MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm internal combustion engine - 57.114 kW / 77.600 hp at 104,0 rpm

Built: 2004

Builder: Hyundai Heavy Industries Co. Ltd., Ulsan - South Korea

Number of screws

1x Screw propeller solid - aft at 104 rpm

Boilers

1x CHO Aalborg 41,40 m² - 9,00 bar
1x CHR Aalborg 714,00 m² - 9,00 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft alternator

1x 2.100 kW / 2.625 kVA

Diesel generators

3x Main diesel generatorsets each 3.375 kVA - 2.700 kW - 3.861 hp

Emergency generators

1x Diesel generatorset 188 kVA - 150 kW - 270 hp

Bow thruster

Yes

Number of holds

8

Hatchways

8

1x 12,60 x 15,50 m

1x 12,60 x 30,60 m

6x 12,60 x 35,70 m

Fuel oil capacity

9.092 m³

Lifting equipment

2x Cranes - SWL 12,5 t each

Cargo gear

Gearless

Managing owners

Technomar Shipping Inc.
Athens
Greece

Previous managers

CMA CGM
Marseille
France

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

Registered owner

Strauss Marine LLC
Greece

Previous owner

A&L CF September (3) Limited

Latest data adjustment

14 September 2014
