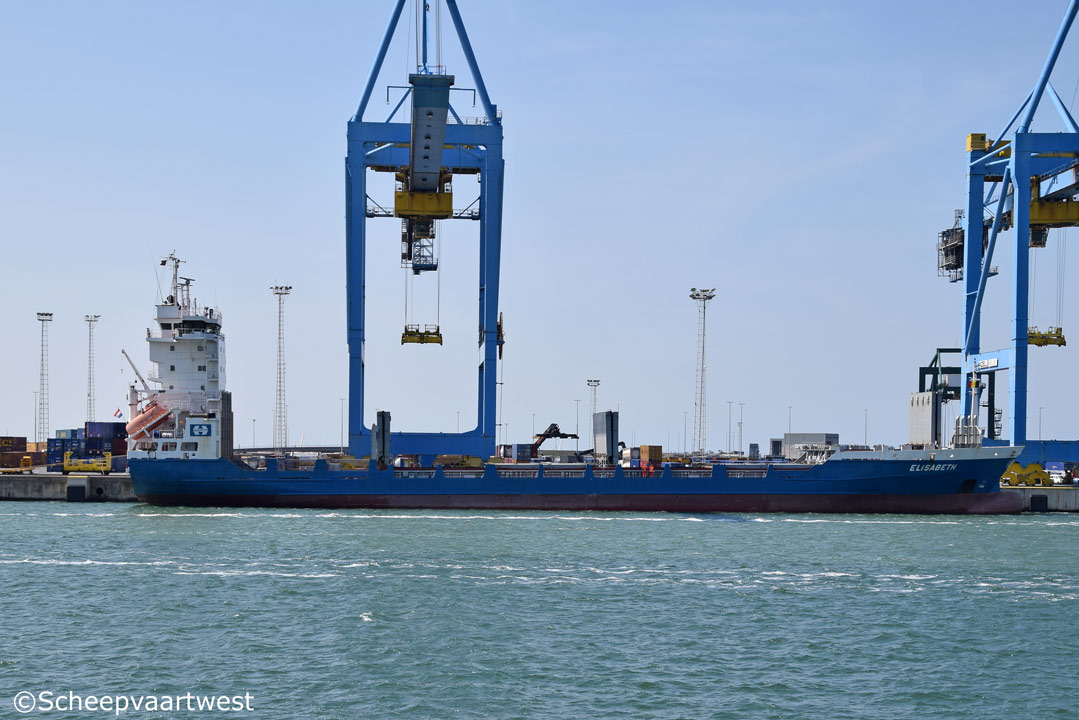

Elisabeth IMO 9219862 01

Zeebrugge 10 May 2017

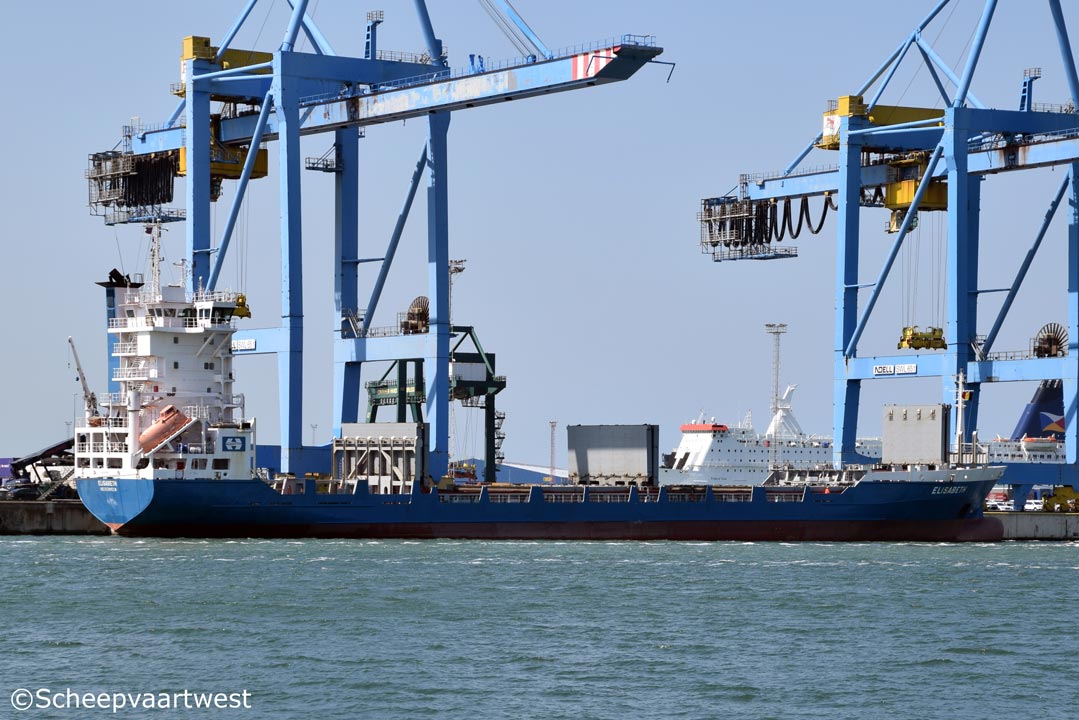

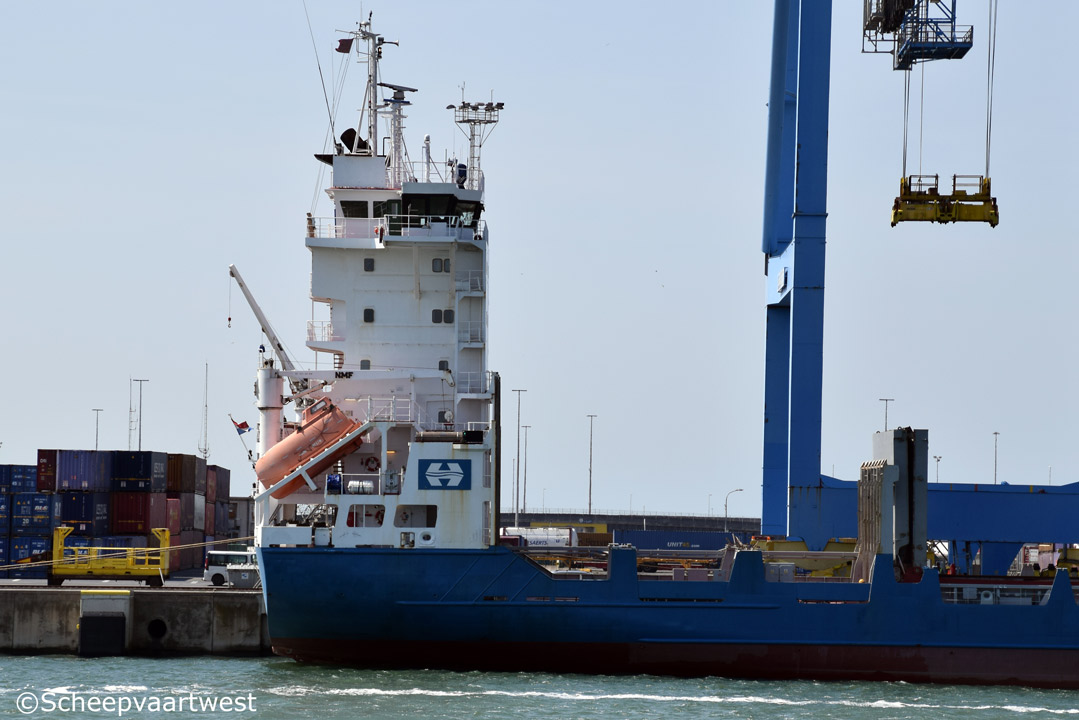

Elisabeth IMO 9219862 05   Elisabeth IMO 9219862 02
10/05/17   10/05/17



Name

ELISABETH

Type

Cellular containership

IMO-number

9219862

Call sign

PECG

Flag

The Netherlands

Port of registry

Heerenveen

GT

5.067 t

DWT

Summer: 6.850 t

NT

2.530 m

Number of 20ft containers

In hold: 162

On deck: 496

Total: 658

Container capacity 14t

336

Reefer points

150 - 380 V/50 Hz 3 phases female

Length

117,90 m overall

108,00 m between perpendiculars

Breadth

18,16 m

Draught

Summer: 7,08 m

Air draft

29,20 m ballast

Depth

9,20 m

Speed

Max.: 17,0 knots

Built

2000

Keel laid

09.12.1998

Launch date

20.03.2000

Date of completion

06.05.2000

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Hamburg
Germany

Yard number

1157

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

6

Continuous decks

2

Main engine

1x MaK 8M43 - 4 stroke single acting 8 cylinder 430 x 610 mm diesel engine 5.995 kW at 514 rpm

Reduced power: 3/266 kW

Manufacturer: Maschinenbau Kiel A.G., Kiel - German Federal Republic

Propellers

1x Controllable pitch propeller

Shaft generator

1x Piller 1.200 kW/ 1.125 kVA - 380 Volt 40 Hz

Generators

2x Caterpillar 3412 DITA diesel engines each 534 kW coupled with Piller generators each 600 kVA

Emergency generator

1x Caterpillar 3304 DITA diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar
1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster JASTRAM 550 kW

Number of holds

3x Box holds, steel floored

Hold 1: 13,10 x 10,42 x 11,20 m

Hold 2&3: 26,20x 15,52 x 8,50 m

Hold ventilation

Electrically 6 air-changes/hr

Cargo hold capacity

Grain: 8.528 m³

Bale: 7.693 m³

Number of hatches

3

Hatch 1: 12,66 x 10,44 m

Hatch 2&3: 25,10 x 15,52 m

Hatch type

Hydraulic folding steel covers

Max. permitted loads

Tanktop: 9,0 t/m²

Hold 2: 14,5 t/m²

Weather deck: 1,7 t/m²

Tank capacities

Gas oil: 135 t

IFO 180: 360 t

Ballast: 2.370 t

Fresh water: 100 t

Anchor equipment

3x Anchors weight each 4.050 kg

Length: 529,10 m

Diameter: 50 mm

Cargo gear

Gearless

Crew

10

Manager

Holwerda Shipmanagement B.V.

Marktweg 77
8444 AC Heerenveen
The Netherlands

Registered owner

Scheepvaartonderneming "ELISABETH" B.V.

Heerenveen
The Netherlands

Latest data adjustment

15 May 2017
