| Zeebrugge 05 August 2011 |
 |

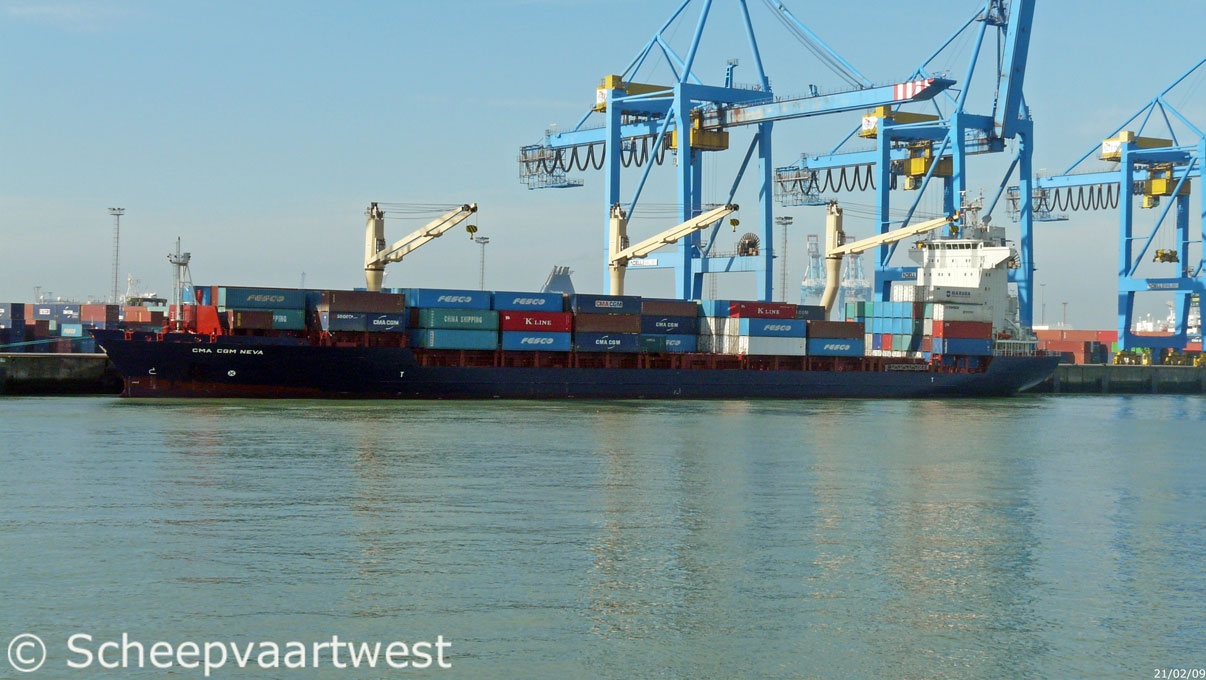

| Zeebrugge 21/02/09 |
|
Name |
CMA CGM NEVA |
|
Previous name |
06.02.2009 Fesco Voronezh |
|
Type |
Cellular Containership |
|
IMO-number |
9322011 |
|
Call sign |
5BNG2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
16.803 t |
|
DWT |
29.946 t |
|
NT |
8.648 t |
|
Number of 20ft containers |
1.730 |
|
Container capacity 14t |
1.094 |
|
Reefer point |
200 plugs - 440 V - 60 Hz |
|
Length |
184,03 m overall 171,94 m between perpendiculars 172,32 m m registered |
|
Breadth |
25,30 m registered |
|
Draught |
9,889 m |
|
Forecastle |
36,819 m |
|
Poop |
15,082 m |
|
Freeboard |
3.633 mm |
|
Depth |
13,50 m moulded |
|
Speed |
19,7 knots |
|
Built |
2009 |
|
Keel laid |
23.04.2008 |
|
Launch date |
20.09.2008 |
|
Date of completion |
23.12.2008 |
|
Builder |
Stocznia Szczecinska Nowa Sp. z o.o. |
|
Yard number |
B170-V/2 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 6 RTA 62 U Cegielski - 2 stroke single acting 6 cylinder 620 x 2.150 mm diesel engine - 13.320 kW at 113,0 rpm Year of manufacture: 2008 Manufacturer: H. Cegielski-Poznan S.A. |
|
Propeller |
1x Solid propeller (keyless) - aft at 113 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 24,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 294,0 m² Year of manufacture: 2008 Manufacturer: Aalborg Industries A/S |
|
Electric Installations |
1x Plant 440/220 V - 4.110 kVA 1x Plant 440 V - 156 kVA 1x Plant 12 V - 50 Ah 1x Plant 24 V - 42 Ah 1x Plant 24 V -h 126 Ah |
|
Generators |
3x Main diesel generatorsets each 1.370 kVA |
|
Emergency generator |
1x Diesel generatorset 156 kVA |
|
Batteries |
1x Battery for automation - 126 Ah 2x Batteries for start emergency engine each 50 Ah 1x Battery for UPS Radio - 42 Ah |
|
Compressed air receivers |
2x Receivers each 6.300 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster - 750 kW, forward |
|
Cargo capacity |
Grain: 29.816 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Cargo gear |
3x Cranes - SWL 45,0 t each |
|
Crew |
17 |
|
Crew size |
25 |
|
Manager |
Fesco Wallem Shipmanagement Ltd. |
|
Operator |
CMA CGM |
|
Owner |
Lightview Shipping Co., Ltd. |
