Westerschelde 11 December 2016 |
 |
|
| Westerschelde 01/10/16 | |
|
Name |

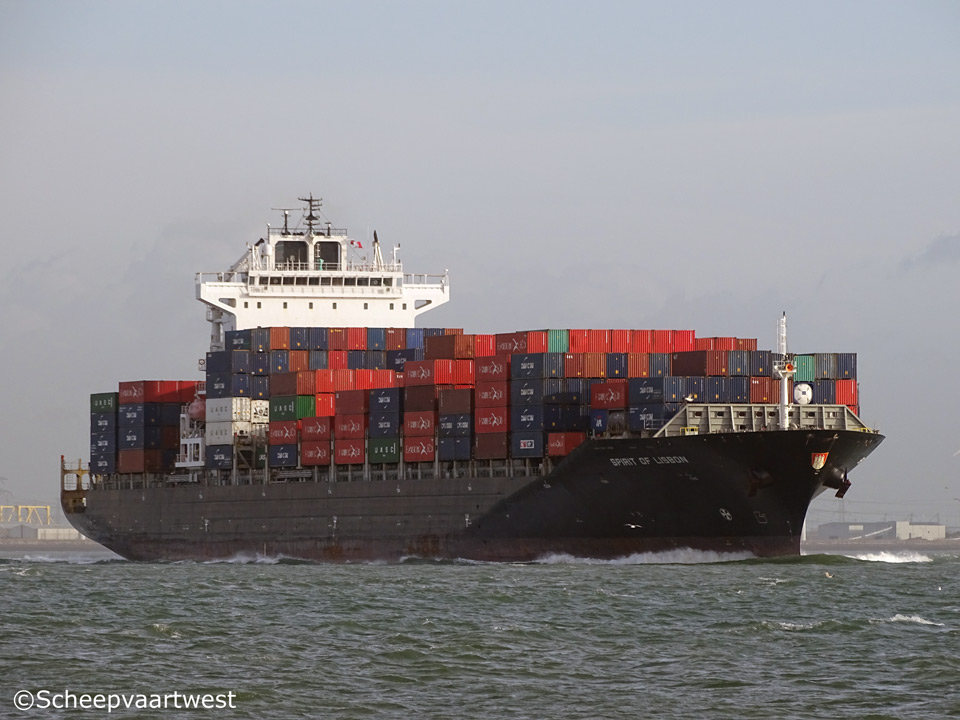

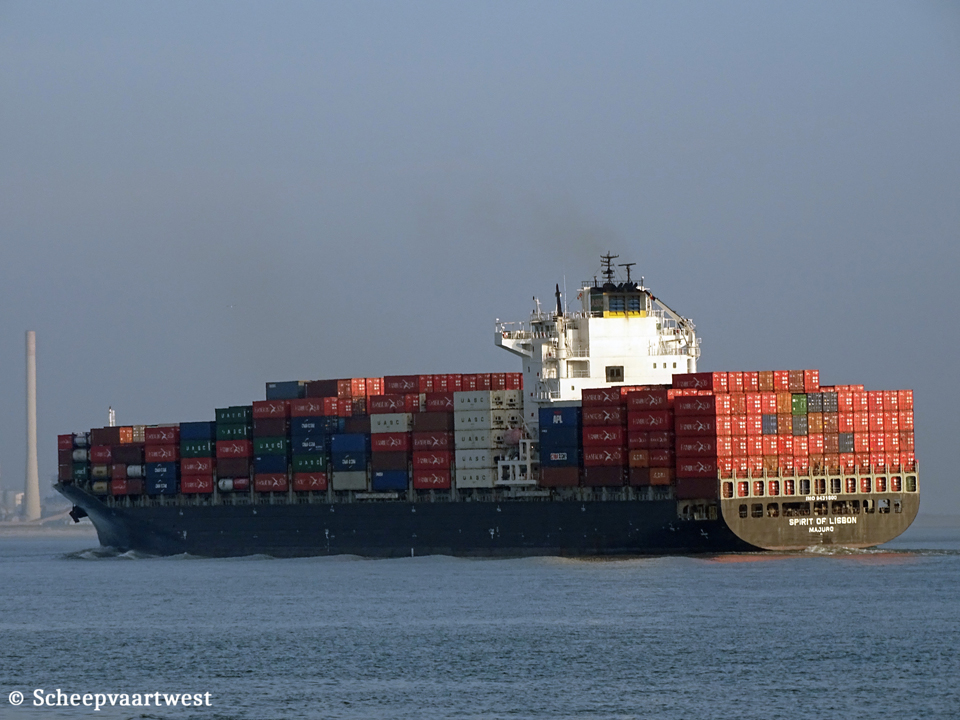

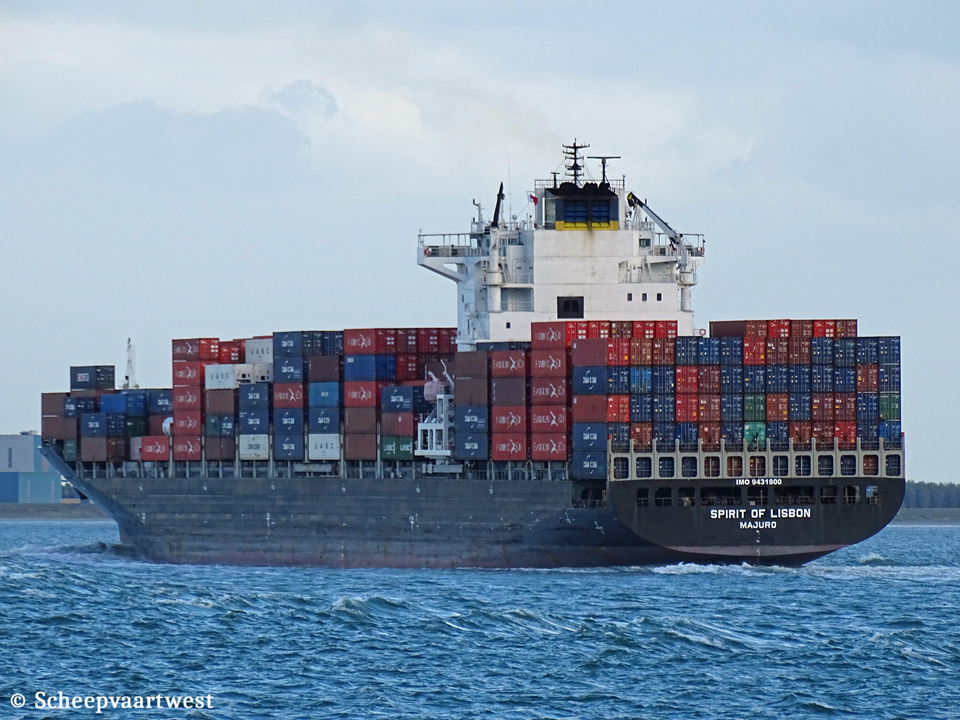

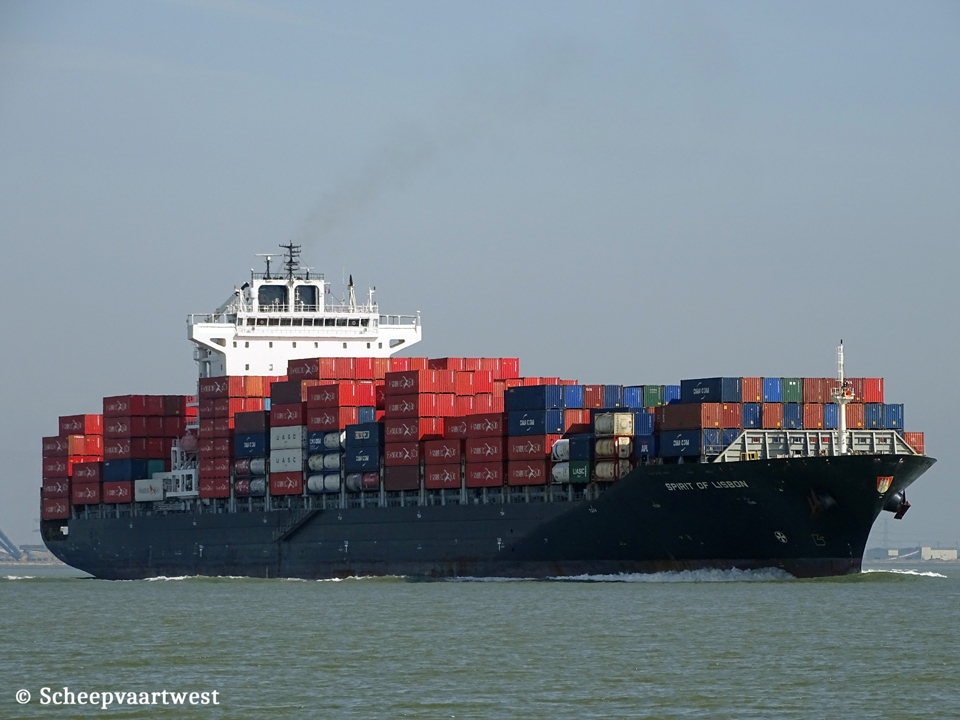

SPIRIT OF LISBON |
|
Previous names |
2009 - 03/2015 CSAV Llanqquihue 03/2015 Joseph Conrad |
|
Type |
Cellular containership |
|
IMO-number |
9431800 |
|
Call sign |
V7RD6 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
Previous flags |
2009 - 03/2015 Liberia, Monrovia - Call sign: A8SN3 |
|
GT |
40.541 t |
|
DWT |
Summer: 50.249 t |
|
NT |
24.472 t |
|
Number of 20ft containers |
4.256 |
|
Containercapacity 14t |
2.800 |
|
Reefer capacity |
698 |
|
Length |
261,04 m overall 248,59 m between perpendiculars |
|
Breadth |
32,34 m extreme 32,26 m moulded |
|
Draught |
12,60 m |
|
Forecastle |
124,72 m |
|
Bridge |
102,22 m |
|
Depth |
19,30 m |
|
Speed |
Max.: 24,4 knots |
|
Built |
2009 |
|
Keel laid |
29/10/2008 |
|
Launch date |
14/06/2009 |
|
Date of completion |
31/12/2009 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. 1 Lianyi Road Jiangyin-Jingjiang Industry Zone Jingjiang City People's Republic of China |
|
Yard number |
YZJ2006-744 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Single hull - Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8K90MC-C - 2 stroke 8 cylinder 900 x 2.300 combustion engine 36.560 kW / 49.707 hp at 104,0 rpm Year of manufacture: 2009 Manufacturer: CSSC-MES Diesel Co., Ltd. 6, Xingyuan Rd. (S) Lingang, Nanhui District Shanghai People's Republic of China |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 11,0 bar Heating surface: 67,2 m² 1x Steam boiler, exhaust gas heated - 11,0 bar Heating surface: 998,2 m² Year of manufacture: 2008 Manufacturer: KangRim Heavy Industries Co., Ltd. 8, KeLe-Lu, XinBei-Qu Changzhou People's Republic of China |
|
Electric installations |
4x Plants each 450 V - 2.750 kVA 1x Plant 450 V - 250 kVA 2x Plants each 24 V - 56 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah 4x Plants each2 4 V - 300 Ah |
|
Generators |
4x Yanmar 8EY26L main diesel generatorsets each 2.200 kW / 2.750 kVA |
|
Emergency generator |
1x 645 DSBAG diesel generatorset 250 kVA |
|
Batteries |
4x Batteries for other purpose each 300 Ah 2x Batteries for start main engine each 200 Ah 2x Batteries for other purpose each 200 Ah 2x Batteries for start emergency engine each 56 Ah |
|
Compressed air receivers |
2x Receivers each 12.500 litres - 30,0 bar 1x Receiver 400 litres - 30,0 bar 1x Receiver 320 litres - 12,0 bar |
|
Bow thruster |
1x Transverse thruster 1.600 kW, forward |
|
Tank capacities |
Ballast: 11.486 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Manager |
Rickmers Shipmanagement GmbH & Cie. KG |
|
Previous managers |
2009 - 03/2015 Reederei Karl Schlüter GmbH & Co. KG - Germany 03/2015 Reederei Karl Schlüter GmbH & Co. KG - Germany |
|
Registered owner |
Spirit of Lisbon GmbH & Cie. KG |
|
Previous names & owners |
2009 - 03/2015 CSAV Llanqquihue Liberia, Monrovia - Calls sgn A8SN3 Owner: Joseph Conrad GmbH & Co KG - Germany 03/2015 - 2016 Joseph Conrad Owner: Joseph Conrad GmbH & Co KG - Germany |
|
Renamed |
2023 CMA CGM Lisbon Malta, Valletta - Call sign: 9HA5881 Owner: CMA CGM S.A. Manager: Nordic Hamburg Shipmanagement (HK) Ltd. |
|
Latest data adjustment |
26 October 2023 |
