| Zeebrugge 23 July 2008 |
 |
 |
 |
||

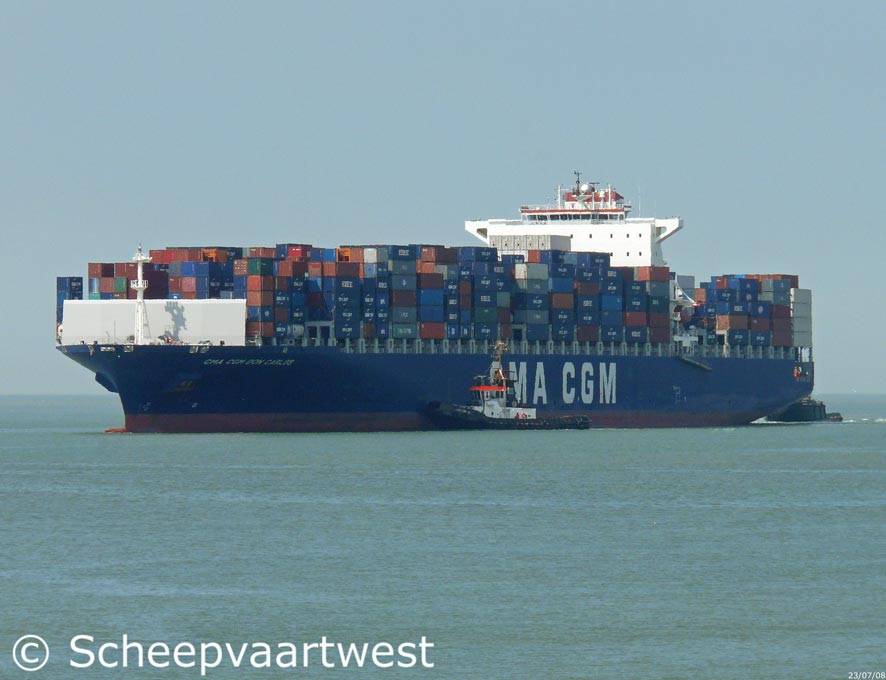

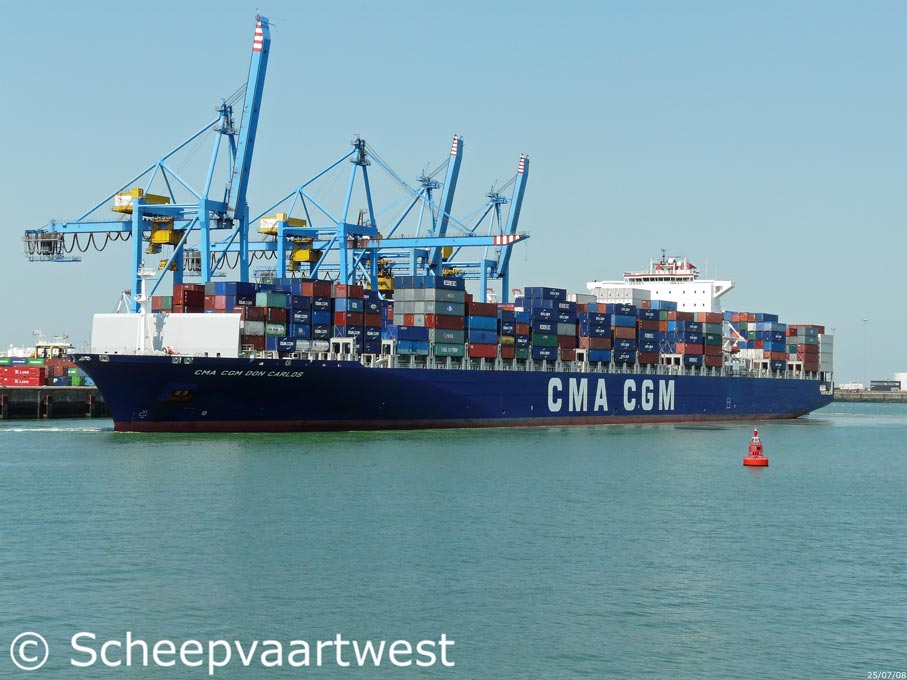

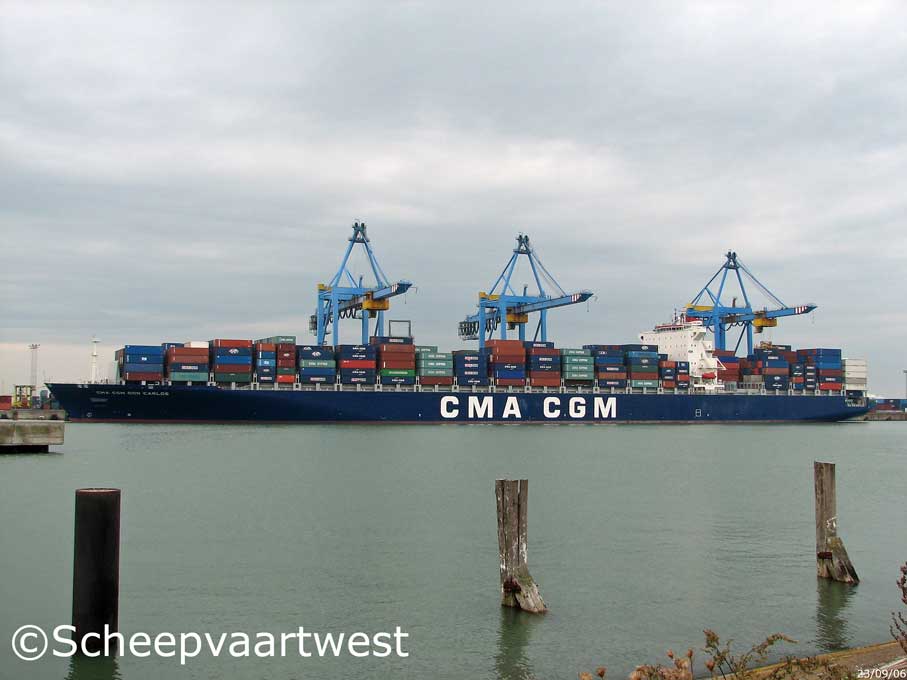

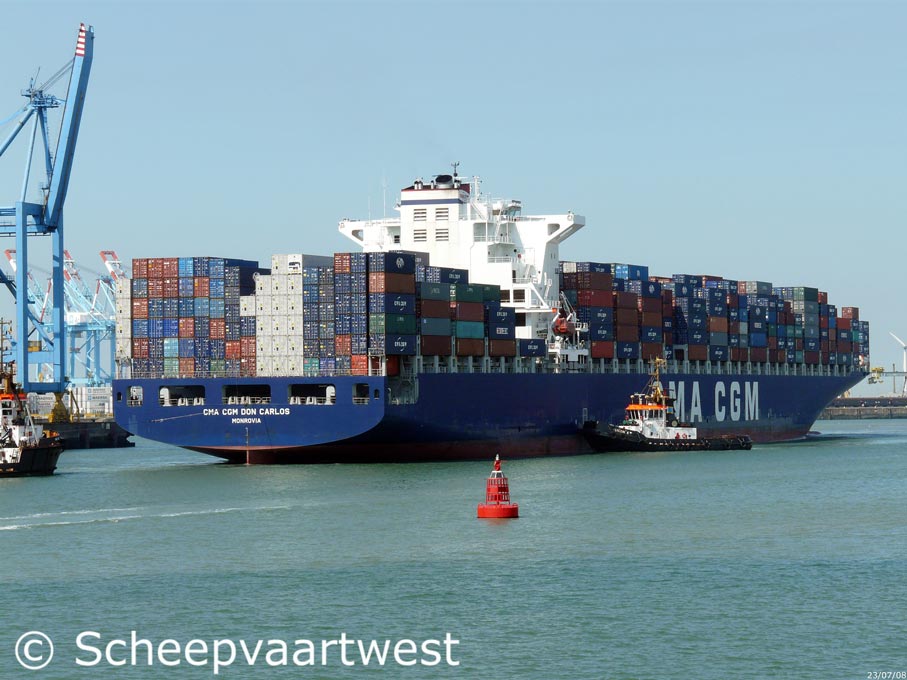

| Zeebrugge 23/07/08 | Zeebrugge 25/07/08 | Zeebrugge 23/09/06 |
|
Name |
CMA CGM DON CARLOS |
|
Previous name |
2006-2006 E.R. Toulouse |
|
Type |
Cellular containership |
|
IMO-number |
9305491 |
|
Official number |
90963 |
|
Call sign |
A8IE6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
91.649 t |
|
DWT |
Summer: 101.496 t |
|
NT |
55.388 t |
|
Number of 20ft containers |
8.204 |
|
Container capacity 14t |
6.090 |
|
Reefer Point |
700 |
|
Length |
334,08 m overall |
|
Breadth |
42,80 m moulded |
|
Draught |
Summer: 14,50 m |
|
Forecastle |
160,47 m |
|
Bridge |
152,47 m |
|
Freeboard |
6.000 mm |
|
Depth |
20,14 m |
|
Speed |
25,4 knots |
|
Built |
2006 |
|
Keel laid |
23.01.2006 |
|
Launch date |
14.04.2006 |
|
Date of completion |
24.06.2006 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. / Yeongam-gun |
|
Yard number |
S260 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Propelling Engine |
1x MAN B&W 12K98MC - 2 stroke single acting 12 cylinder 980 x 2.660 mm diesel engine - 68.640 kW |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, exhaust gas heated - 10,0 bar |
|
Electric installations |
1x Plant 6.600 V - 16.265 kVA |
|
Generators |
2x MAN B&W 9L27/38 main diesel generatorsets each 3.733 kVA / 2.944 kW |
|
Emergency generator |
1x Diesel generatorset 525 kVA |
|
Batteries |
2x Batteries for Emergency lighting each 500 Ah |
|
Bow thruster |
1x Transverse thruster - 2.500 kW, forward |
|
Compressed air receivers |
2x Receivers, each 16.000 litres - 30,0 bar |
|
Anchor equipment |
3x Anchors weight each 18.800 kg |
|
Cargo Gear |
Gearless |
|
Crew size |
31 |
|
Managing Owners |
ER Schiffahrt GmbH & Cie. KG |
|
Operator |
CMA CGM |
|
Owner |
MS "LLOYD DON CARLOS" Schifffahrtsges. mbH & Co. KG |
