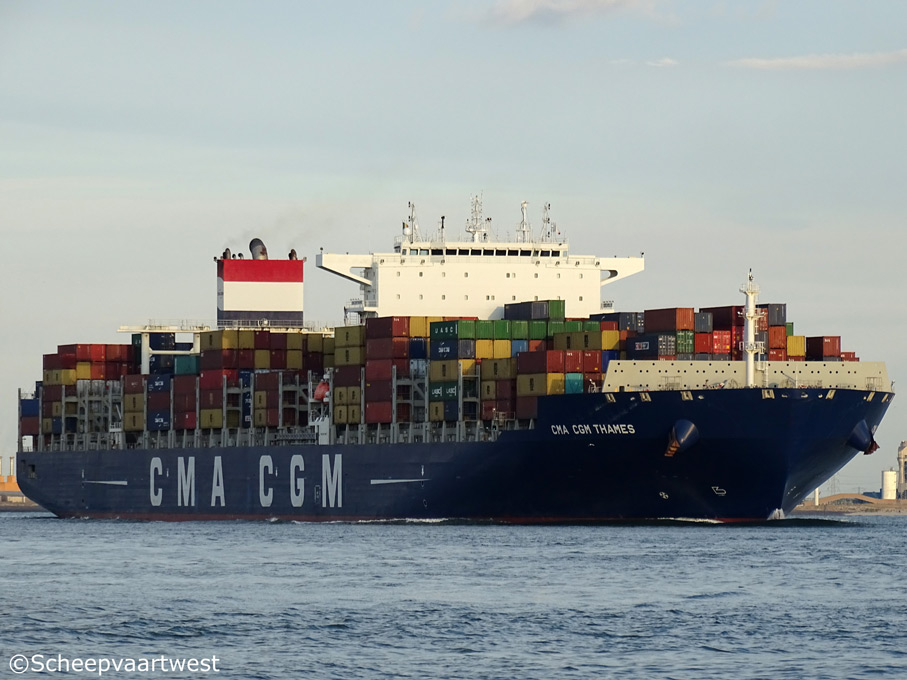

Westerschelde 08 October 2016 |
|
Name |
CMA CGM THAMES |
|
Type |
Cellular containership |
|
IMO-number |
9674567 |
|
Call sign |
9HA3851 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Bahamas, Nassau |
|
GT |
95.263 t |
|
DWT |
Summer: 112.580 t |
|
NT |
37.602 t |
|
Number of 20ft containers |
9.365 |
|
Container capacity 14t |
7.042 |
|
Reefer capacity |
1.458 |
|
Length |
299,95 m overall 286,00 m between perpendiculars |
|
Breadth |
48,20 m |
|
Draught |
14,80 m |
|
Freeboard |
20.175 mm |
|
Depth |
24,60 m |
|
Speed |
22,0 knots |
|
Built |
2015 |
|
Date of completion |
12.06.2015 |
|
Builder |
Dalian Shipbuilding Industry Co. |
|
Yard number |
C9200-6 |
|
Hull material |
Steel |
|
Watertight compartment |
10 |
|
Continuous decks |
1 Machinery aft |
|
Main engine |
1x MAN B&W/Hyundai 9S90ME-C8.2 - 2 stroke 9 cylinder 900 x 3.260 mm diesel engine 47.430 kW / 64.443 hp at 78,0 rpm Built: 27.08.2014 Builder: Hyundai Heavy Ind. Co.,Ltd - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 78,0 rpm |
|
Boilers |
1x CHO 40,14 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 5.431 kVA - 4.345 kW - 6.114 hp 2x Main diesel generatorsets each 4.825 kVA - 3.860 kW - 5.435 hp |
|
Emergency generator |
1x Diesel generatorset 375 kVA - 300 kW - 486 hp |
|
Number of holds |
7 |
|
Total capacity of holds |
184.738 m³ |
|
Tank capacities |
Fuel oil: 11.442,6 m³ |
|
Cargo gear |
Gearless |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime 4 Quai d'Arenc |
|
Registered owner |
Smart Bay Limited |
|
Latest data adjustment |
03 November 2016 |
