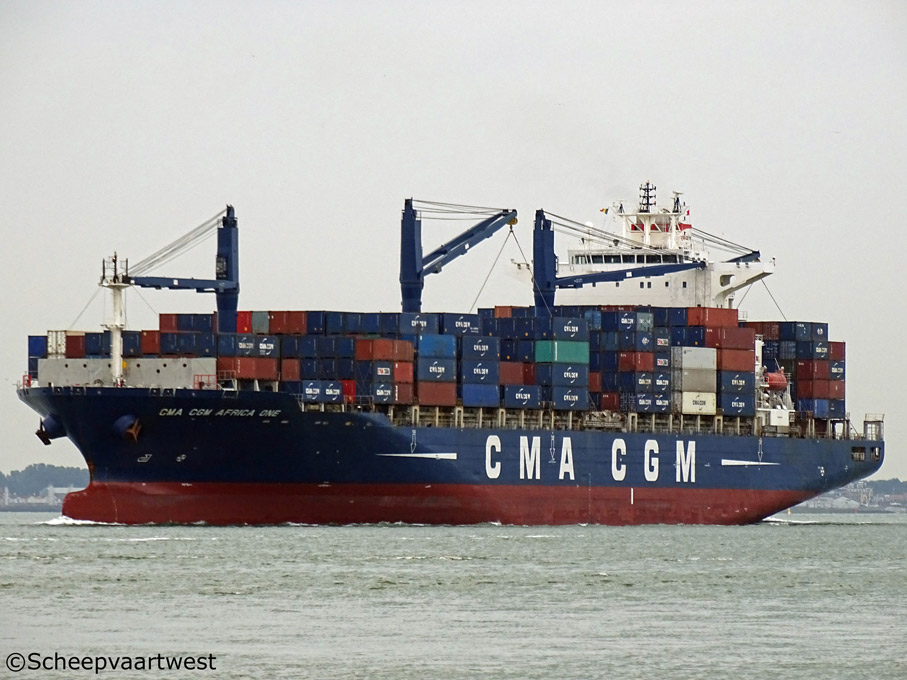

CMA CGM Africa One 01

Westerschelde 28 June 2016



Name

CMA CGM AFRICA ONE

Type

Cellular containership

IMO-number

9451915

Call sign

C6YR8

Flag

Bahamas

Port of registry

Nassau

GT

40.827 t

DWT

Summer: 51.634 t

NT

24.146 t

Number of 20ft containers

3.718

Container capacity 14t

2.966

Reefer capacity

595

Length

228,00 m overall

217,30 m between perpendiculars

Breadth

37,30 m

Draught

12,45 m

Air draft

3.286 mm

Depth

19,34 m

Speed

21,6 knots

Built

2010

Date of completion

20.08.2010

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
Subic Bay
Philippines

Yard number

P0016

Hull material

Steel

Watertight bulkheads

9

Continuous decks

1

Main engine

1x Hyundai-Wärtsilä 7RT-FLEX82C - 2 stroke 7 cylinder 820 x 2.646 mm diesel engine 31.640 kW /42.989 bhp at 102,0 rpm

Built: 12.09.2008

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Screw propeller solid- aft at 102 rpm

Boilers

1x CHO Aalborg-Qingdao 362,00 m² - 10,0 bar

Generators

4x HiMSEN 9H25/33 main diesel generatorsets each 2.625 kVA - 2.100 kW - 3.003 hp

Emergency generator

1x Diesel generatorset 188 kVA - 150 kW - 238 hp

Number of holds

5

Total capacity of holds

79.027,30 m³

Tank capacities

Fuel oil: 6.851,55 m³

Cargo gear

3x Mac Gregor hydraulic cranes - SWL 45 t each

1x Mac Gregor hydraulic crane - SWL 30 t

Manager

Midocean (IOM) Ltd.
Douglas
Isle of Man
United Kingdom

Operator

CMA CGM SA (The French Line)
Marseille
France

Registered owner

Baltic Sea Shipping Corporation

Latest data adjustment

30 August 2016
