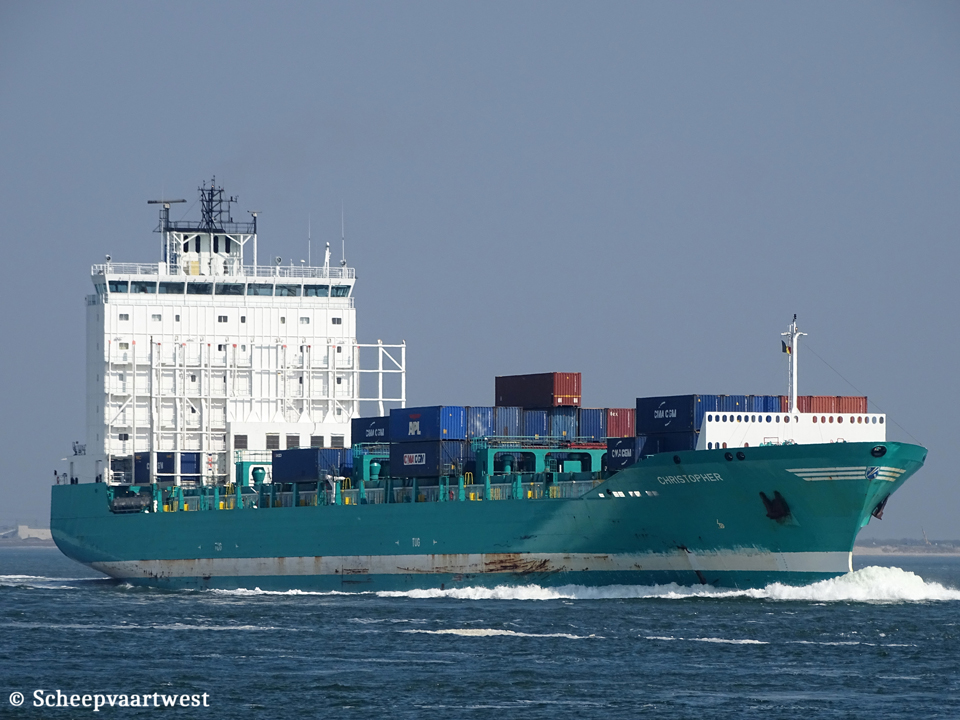

| Westerschelde 30 July 2016 |
 |
 |
 |
 |
 |
 |
|||||

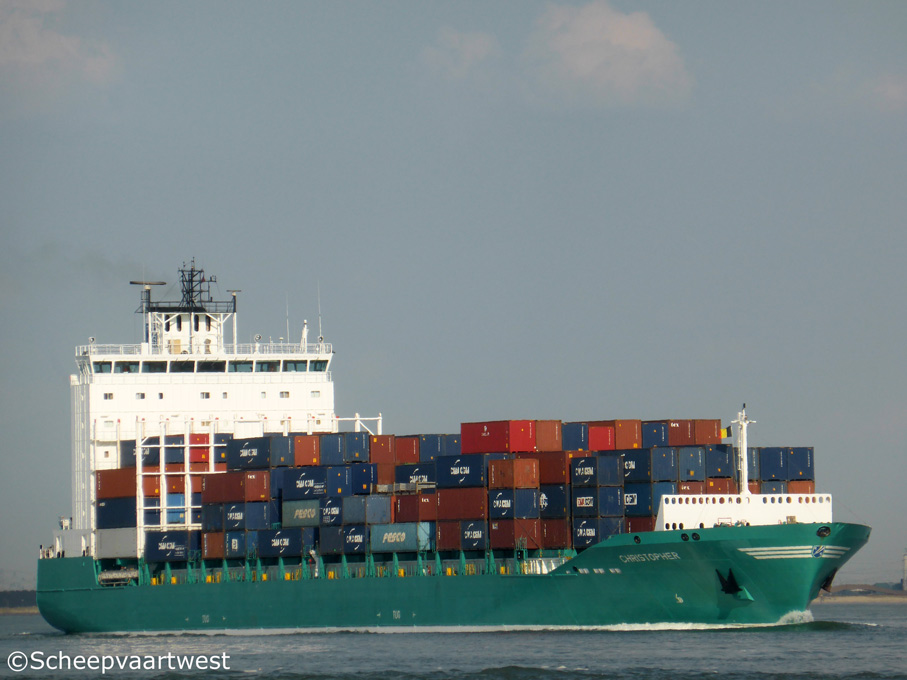

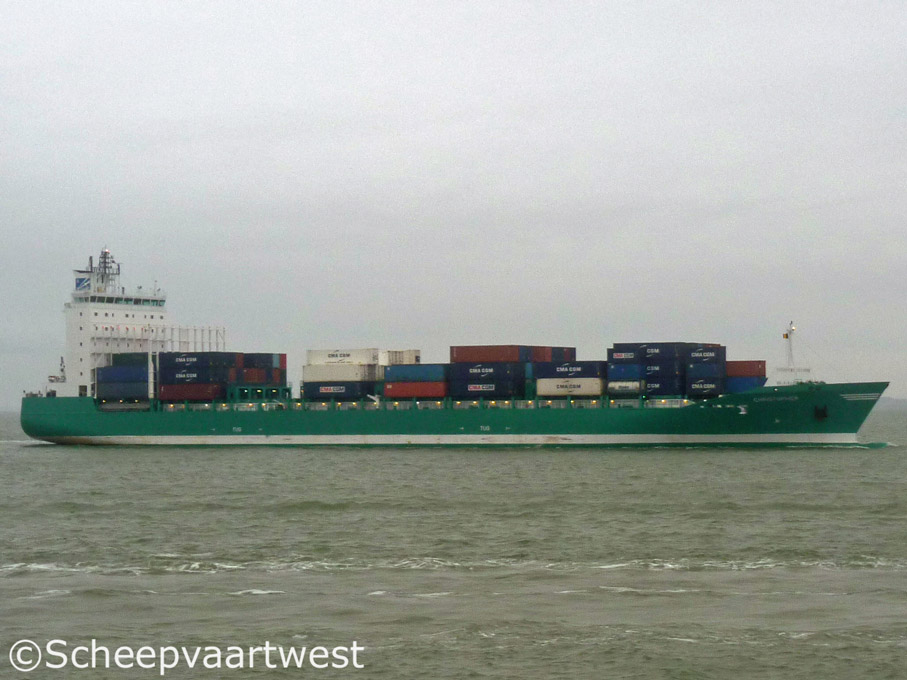

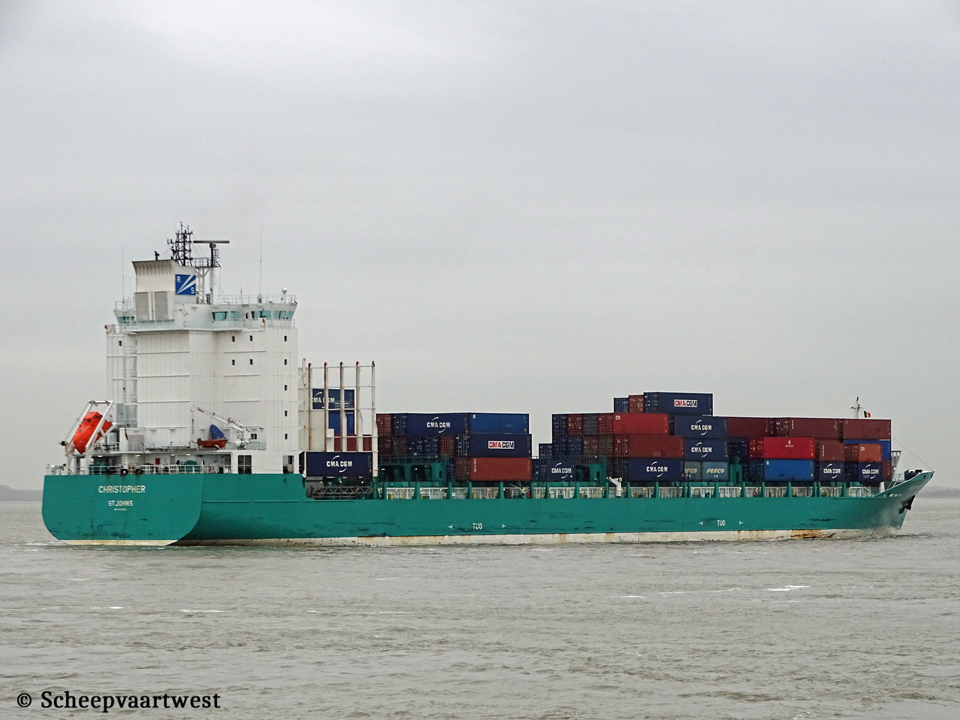

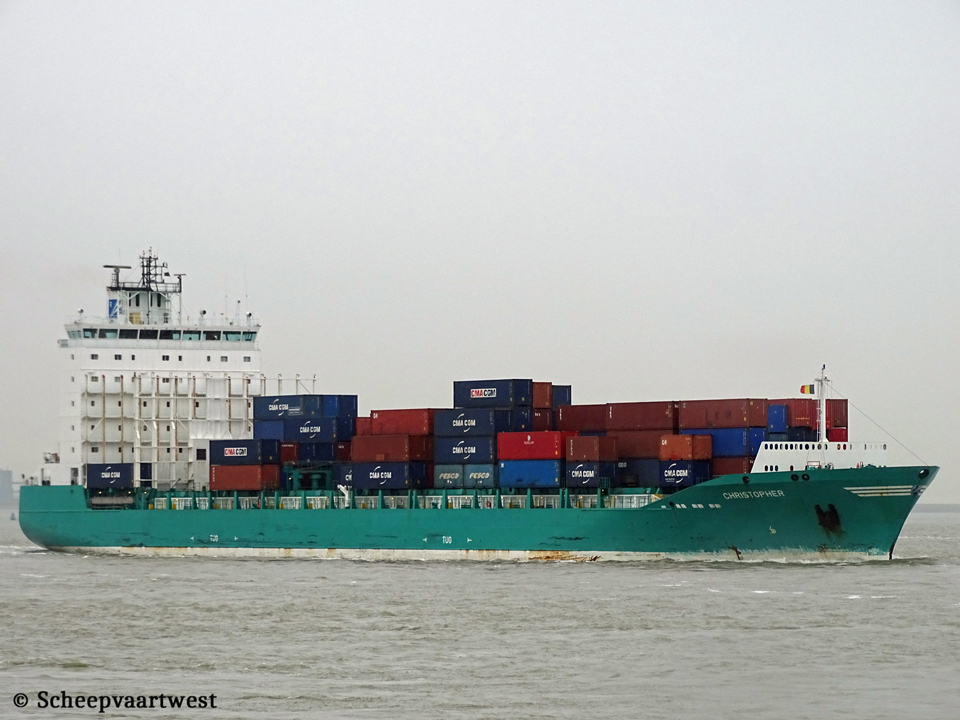

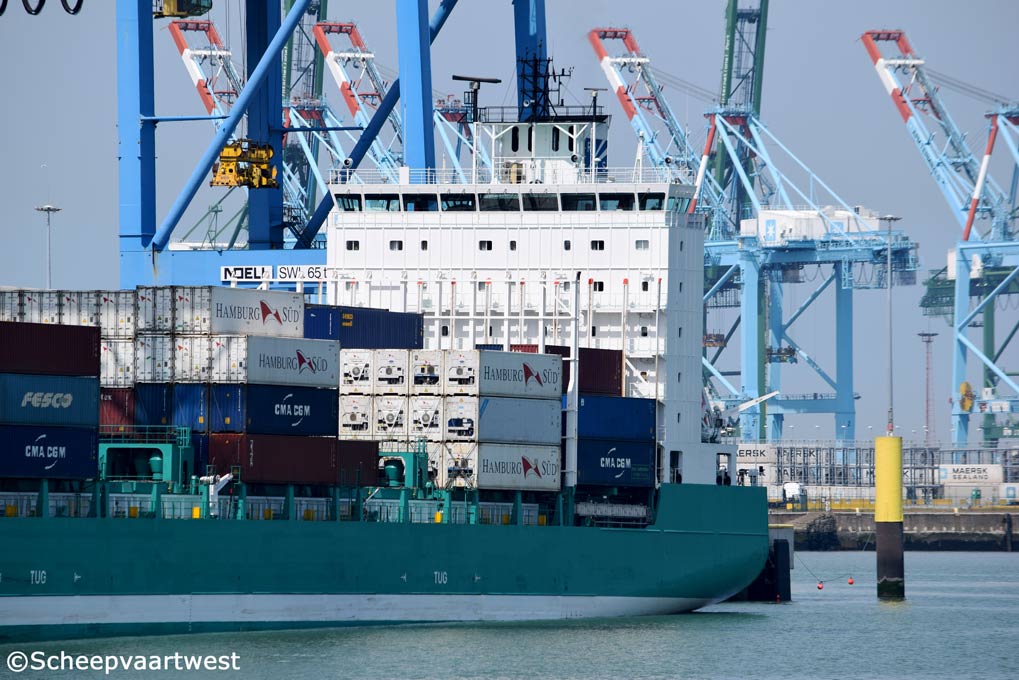

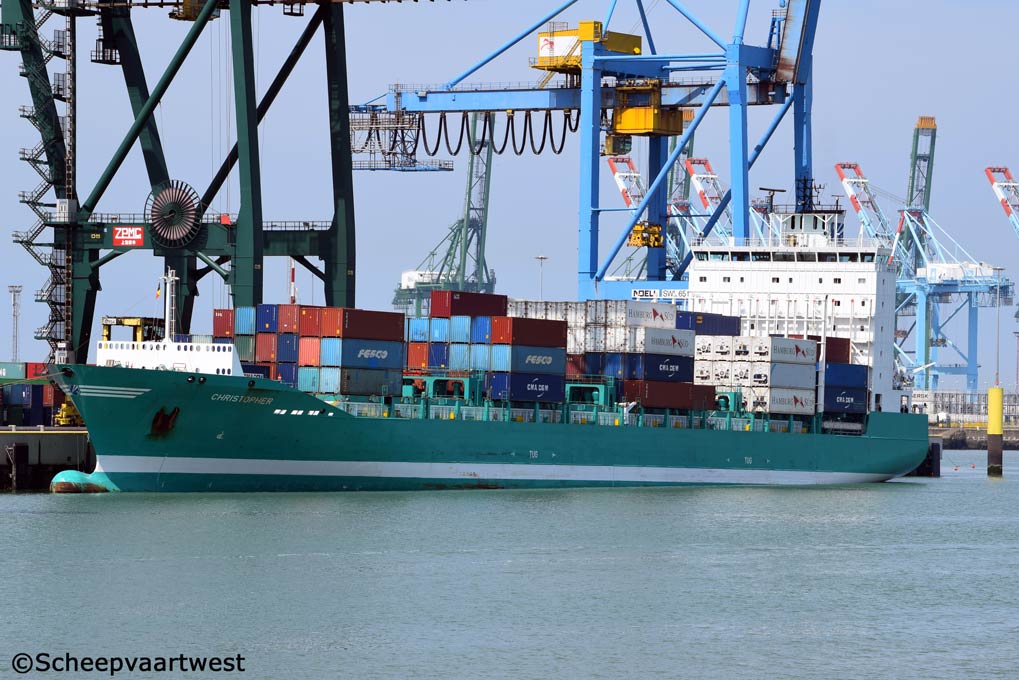

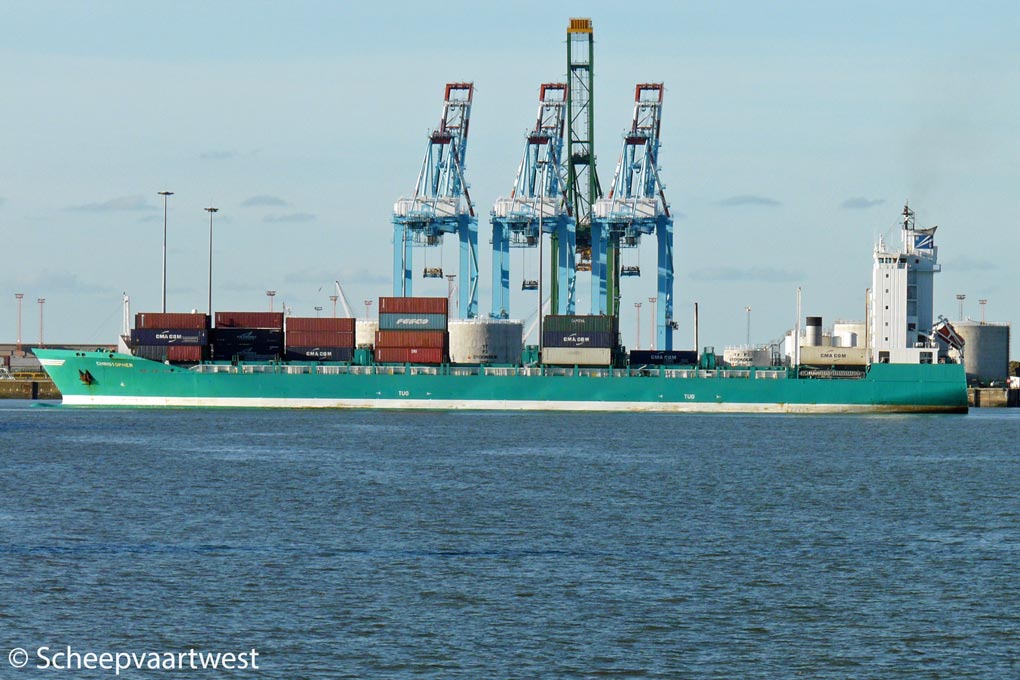

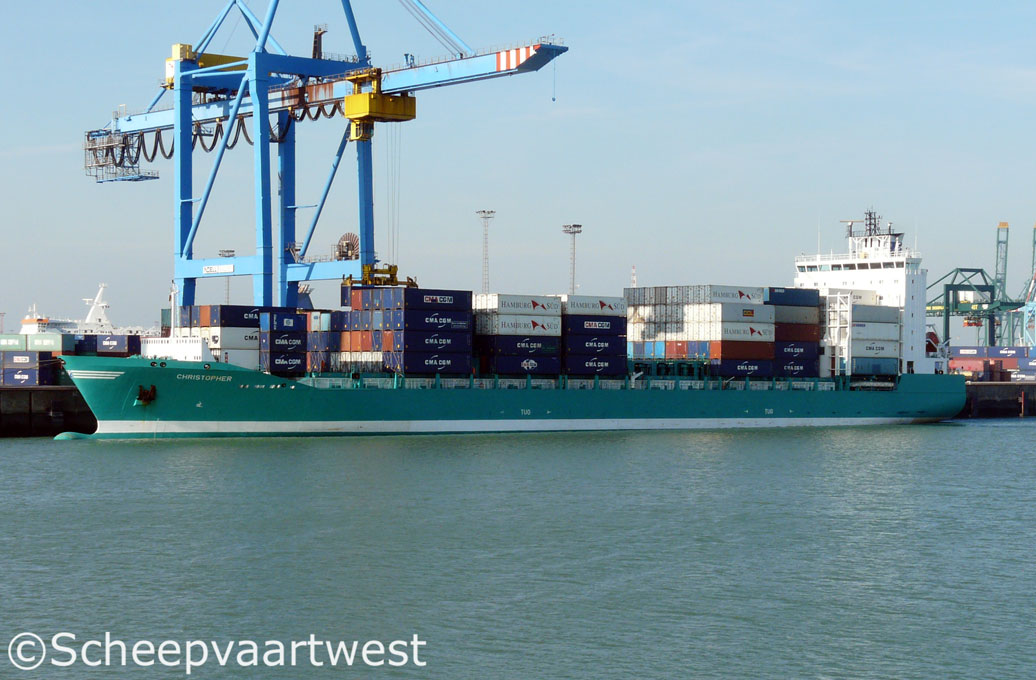

| Westerschelde 09/10/11 | Zeebrugge 22/10/11 | Zeebrugge 17/05/14 | Zeebrugge 17/05/14 | Zeebrugge 18/11/12 | Westerschelde 19/05/14 | |||||
 |
||||||||||

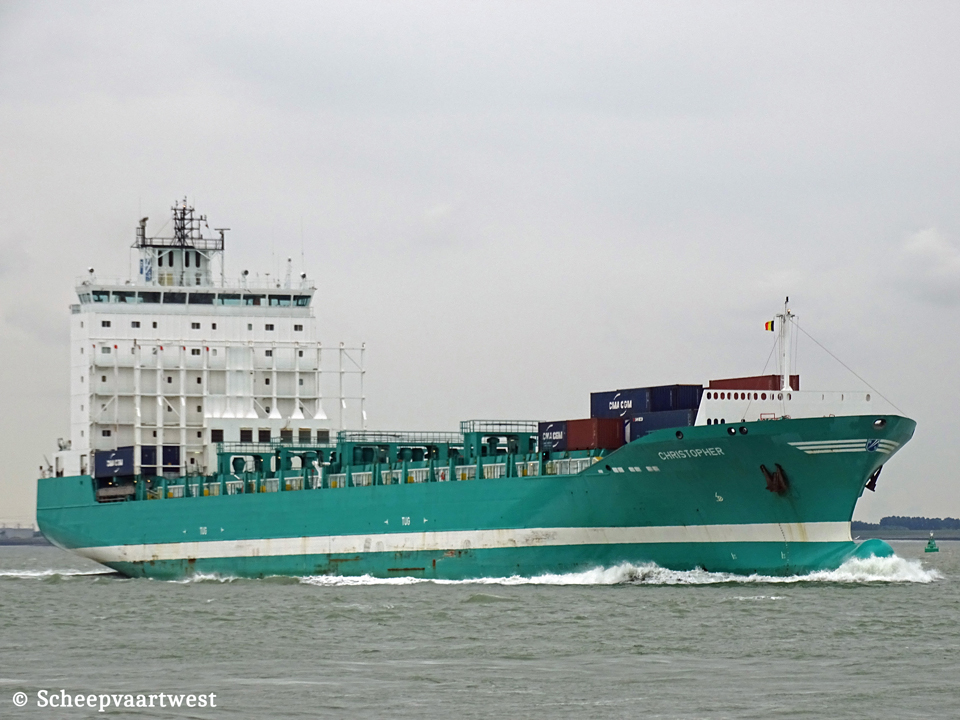

| Westerschelde 06/05/17 | ||||||||||
|
Name |
CHRISTOPHER |
|
Type |
Cellular containership |
|
IMO-number |
9359260 |
|
Call sign |
V2EL5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. Johns |
|
GT |
16.023 t |
|
DWT |
20.073 t |
|
NT |
6.251 t |
|
Number of 20ft containers |
1.440 |
|
Reefer point |
316 |
|
Length |
170,02 m overall 160,59 m between perpendiculars 161,40 m registered |
|
Breadth |
25,19 m extreme 25,00 m moulded |
|
Draught |
Summer: 9,50 m |
|
Forecastle |
12,30 m |
|
Poop |
13,928 m |
|
Freeboard |
4.718 mm |
|
Depth |
14,20 m moulded |
|
Speed |
Max.: 19,8 knots |
|
Built |
2008 |
|
Keel laid |
08/02/2008 |
|
Launch date |
04/07/2008 |
|
Date of completion |
30/09/2008 |
|
Builder |
Peene + S Werften GmbH Schiffbauerdamm 1 17438 Wolgast Federal Republic of Germany |
|
Yard number |
548 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8S50MC-C - 2 Stroke 8 cylinder 500 x 2.000 mm combustion engine 12.640 kW at 127,0 rpm Year of manufacture: 2008 Manufacturer: MAN-B&W Diesel A/S Frederikshavn |
|
Propeller |
1x Solid mono-block propeller (keyless) - aft at 127 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 17,4 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 180,0 m³ Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 450 V - 1.325 kVA 1x Plant 450 V - 1.325 kVA 1x Plant 450 V - 1.325 kVA 1x Plant 450 V - 125 kVA 1x Plant 24 V - 180 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
3x MAN-B&W 7L23/30H main diesel generatorsets each 1.065 kW / 1.325 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Batteries |
1x Battery for automation 200 Ah 2x Batteries for start emergency engine each 180 Ah |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 63 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 900 kW, forward |
|
Tank capacities |
Ballast: 7.730 m³ |
|
Anchor equipment |
3x Anchors weight each 6.900 kg Chain length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
Gearless |
|
Crew |
15 |
|
ISM & commercial manager |
Reederei Rudolf Schepers GmbH & Co. KG Hasenkamp 1 49733 Haren Federal Republic of Germany |
|
Registered owner |
Reederei Rudolf Schepers GmbH & Co. KG MS "NADINE" Hasenkamp 1 49733 Haren Federal Republic of Germany |
|
Renamed |
05/2022 Judith Cyprus, Limassol - Call sign: 5BKY2 Owner: Zweite UFR Schifffahrtsgesellschaft mbH & Co. KG Manager: Rambow Bereederungs GmbH & Co. KG |
|
Latest data adjustment |
16 July 2022 |
