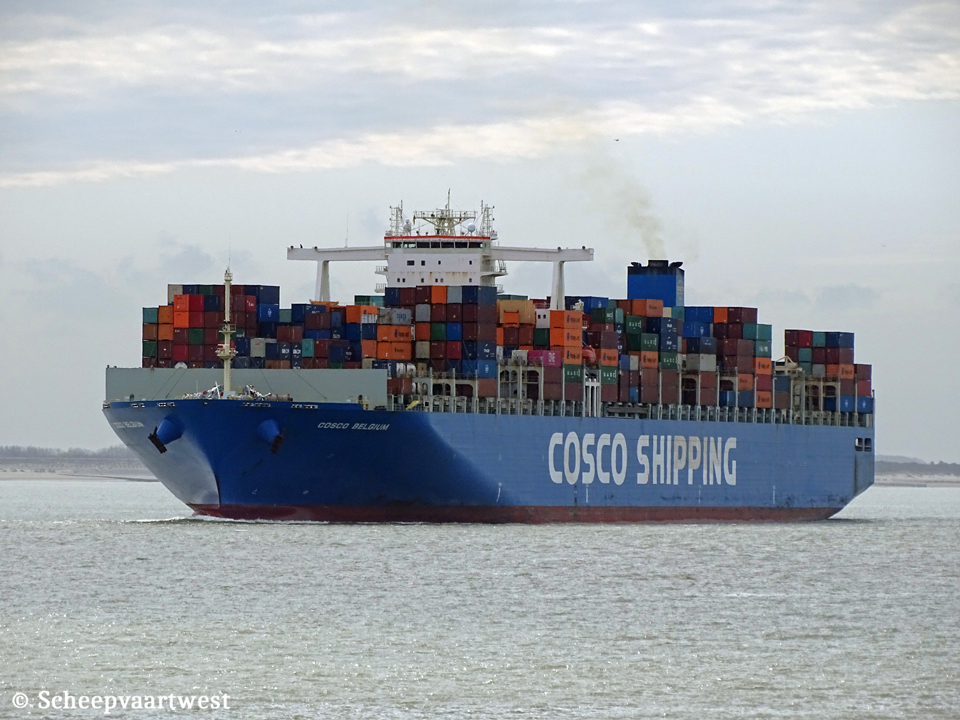

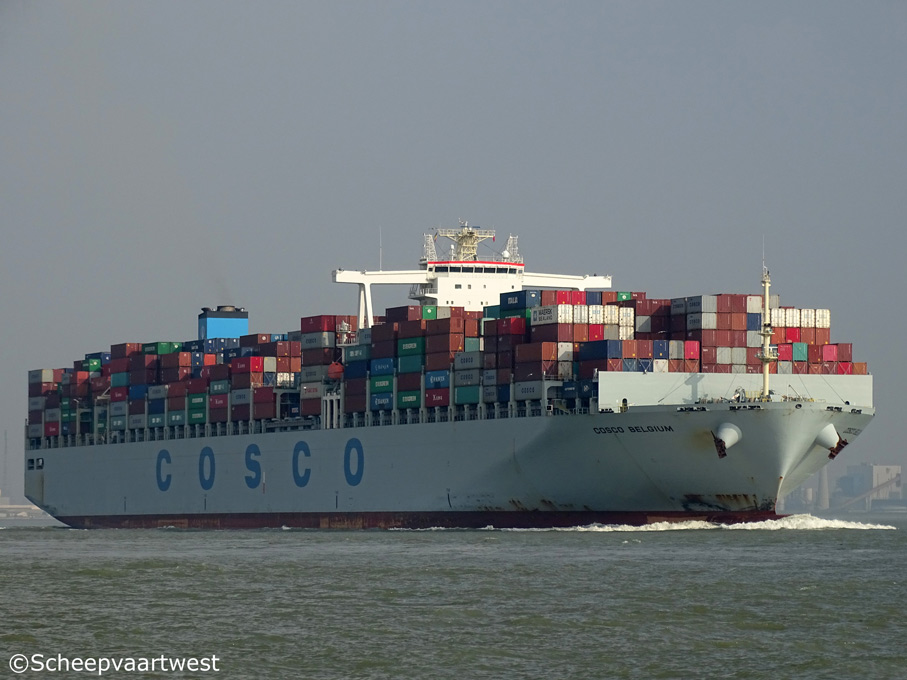

Westerschelde 16 March 2020 |
 |
 |
 |
 |
 |
 |
|||||

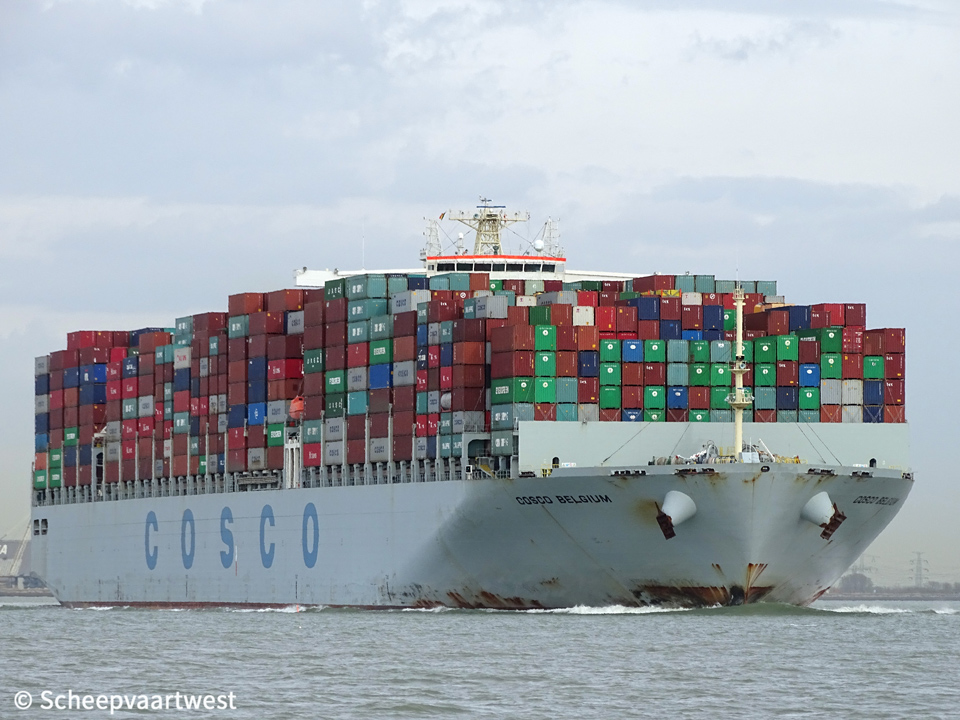

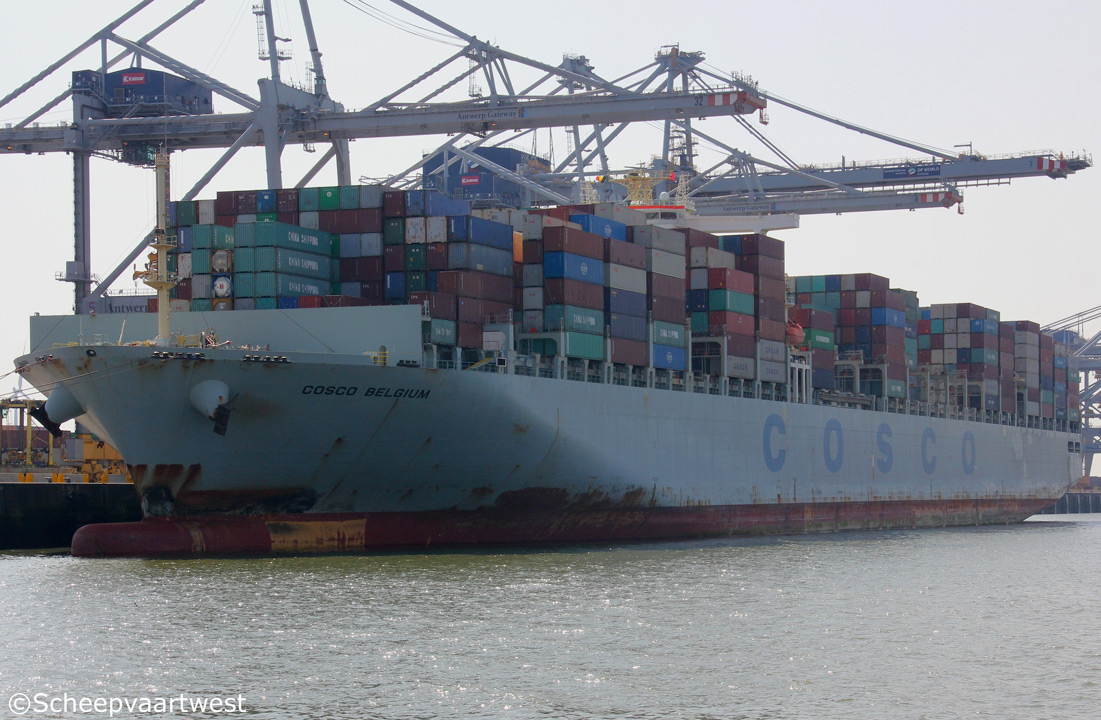

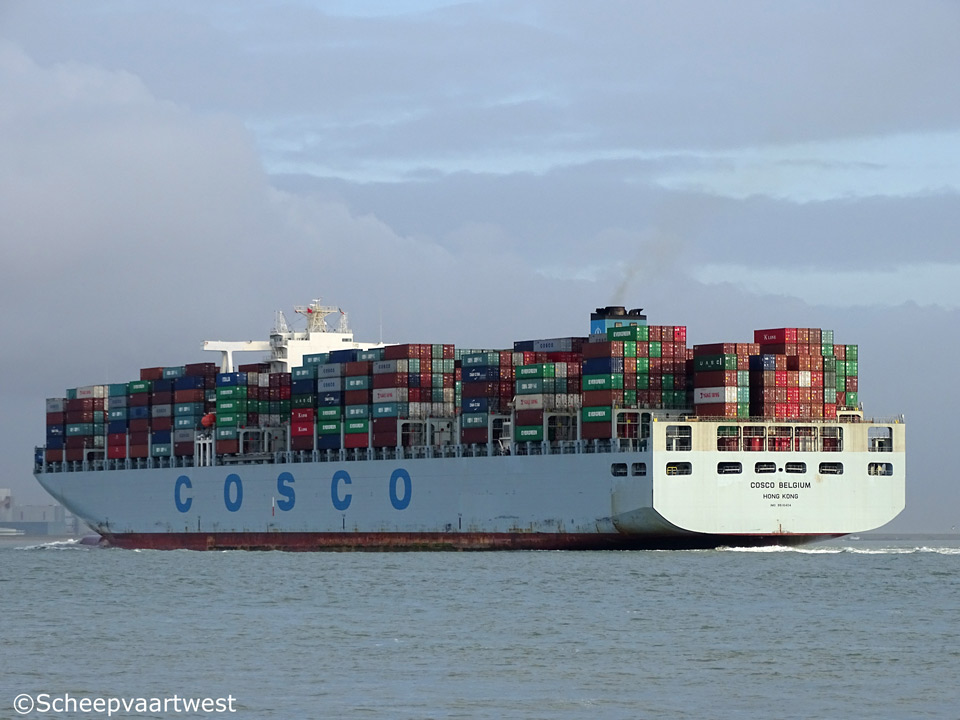

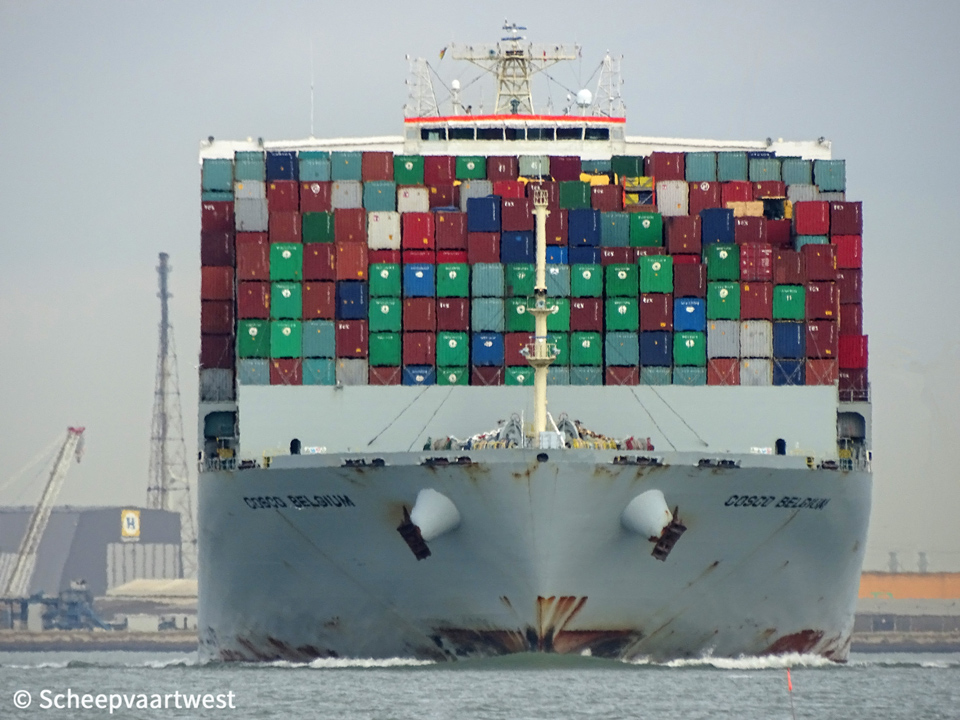

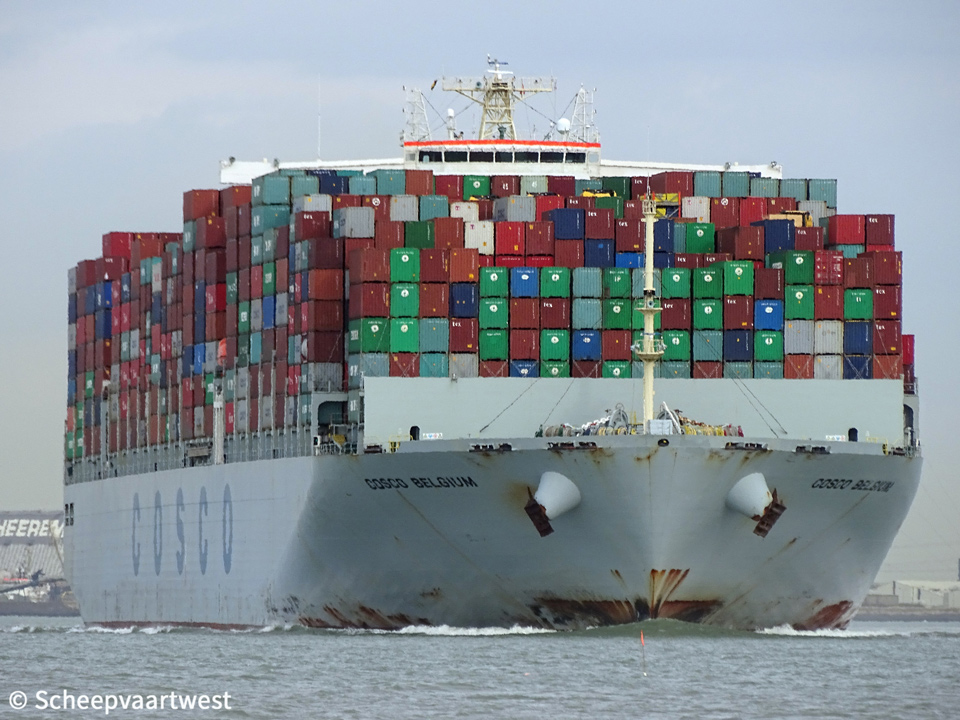

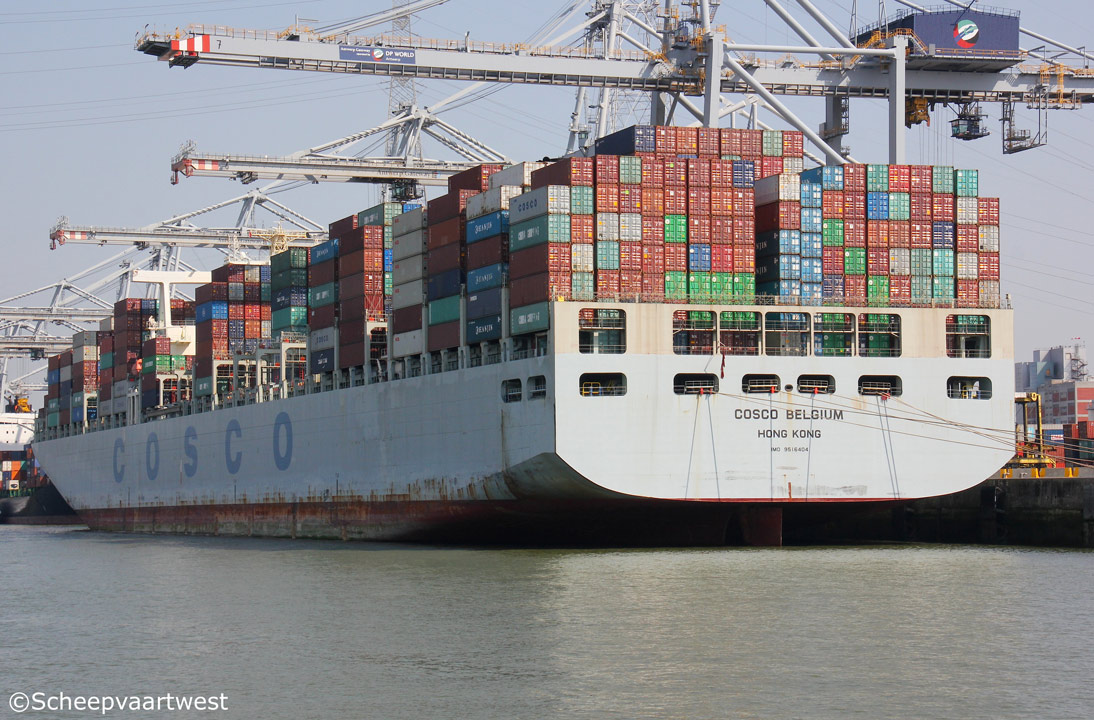

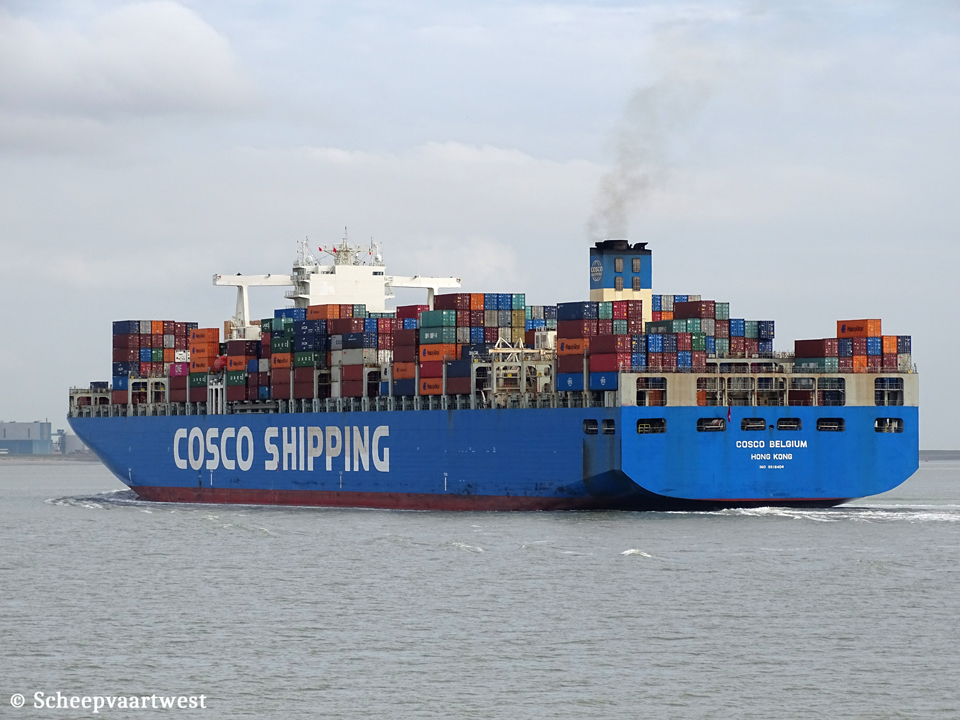

| Westerschelde 16/03/20 | Westerschelde 11/03/16 | Westerschelde 10/01/17 | Doel, Belgium 29/08/17 | Doel, Belgium 29/08/17 | Westerschelde 29/03/17 |
 |
 |
|
| Westerschelde 29/03/17 | Westerschelde 29/03/17 |
|
Name |
COSCO BELGIUM |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9516404 |
|
Call sign |
VRLT8 |
|
Flag |
Hong Kong Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
153.666 t registered Suez: 159.274,75 t |
|
DWT |
Summer: 156.605 t |
|
NT |
65.592 t registered Suez: 144.100,36 t |
|
Number of 20ft containers |
13.386 |
|
Container capacity 14t |
9.830 |
|
Length |
365,90 m overall 348,00 m between perpendiculars |
|
Breadth |
51,20 m moulded |
|
Draught |
Max.: 15,50 m |
|
Freeboard |
7.493 mm |
|
Depth |
29,85 m |
|
Speed |
23,0 knots |
|
Built |
2013 |
|
Keel laid |
30/09/2011 |
|
Launch date |
11/12/2012 |
|
Delivery date |
28/02/2013 |
|
Builder |
Nantong Cosco Khi Ship Engineering Co., Ltd. Nantong China |
|
Yard number |
NE111 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
17 |
|
Main engine |
1x MAN-B&W 12K98ME7 - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine 72.240 kW / 98.218 hp at 94,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller (keyless) Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Fired boiler type Mission OM - 8,0 bar 1x Unfired exhaust gas boiler type Mission XS-7V - 10,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 2.500 kW 2x Main diesel generatorsets each 3.000 kW Manufacturer: HHI Electro Electric System |
|
Number of holds |
10 |
|
Hold capacity |
325.414,3 m³ |
|
Number of tanks |
Ballast: 22 Sea water: 14 Fuel oil: 10 Lubricating oil: 8 Fresh water: 3 Chain: 2 Diesel oil: 1 Hydraulic oil: 1 Waste water: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 8.576,5 m³ Freshwater: 700,2 m³ Fuel Oil: 12.070,1 m³ Hydraulic: 19,4 m³ Lube Oil: 764,6 m³ Tank Ballast: 2.8167,2 m³ |
|
Lifting equipment |
2x Provision crane - SWL 1,5 t Manufacture: South China Marine Machinery Co., Ltd. |
|
Commercial manager |
COSCO Container Lines Co., Ltd. Care of COSCO Shipping Lines Co Ltd , COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
ISM manager |
COSCO - China Ocean Shipping Company COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
Registered owner |
COSCO Belgium Shipping Limited Care of COSCO Shipping Lines Co Ltd , COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
Latest data adjustment |
11 September 2022 |
