Zeebrugge 08 January 2016 |
 |
| Zeebruegge 08/01/16 |
|
Name |

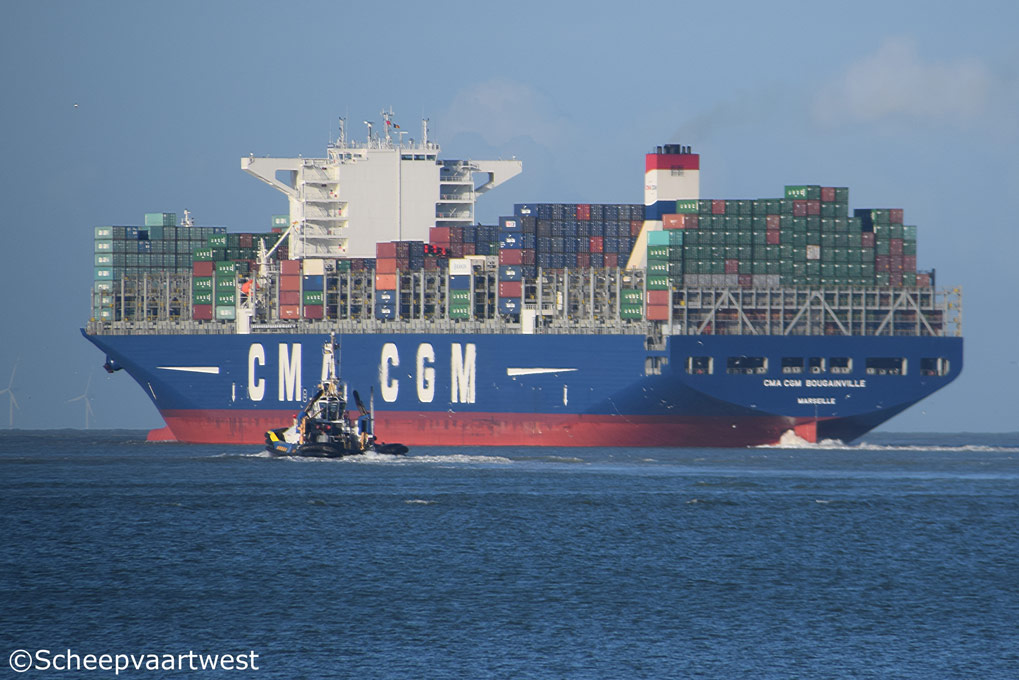

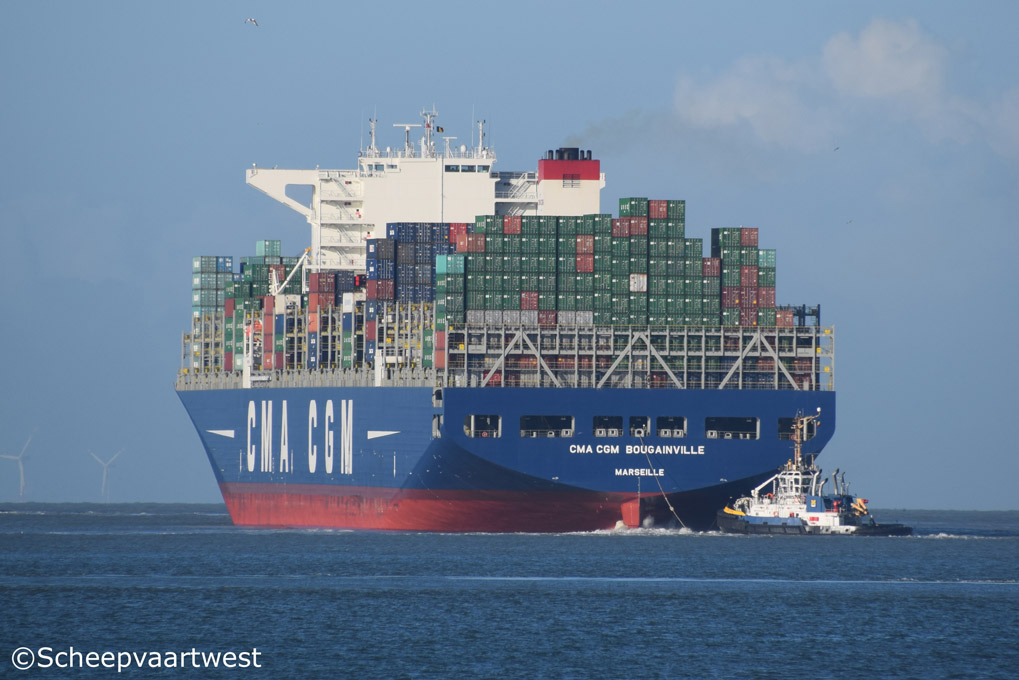

CMA CGM BOUGAINVILLE |
|
Type |
Cellular containership |
|
IMO-number |
9702156 |
|
Call sign |
FIVD |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
175.688 t |
|
DWT |
Summer: 186.528 t |
|
NT |
100.254 t |
|
Number of 20ft containers |
17.722 |
|
Container capacity 14t |
11.980 |
|
Reefer capacity |
1.458 |
|
Length |
398,00 m overall 380,00 m between perpendiculars |
|
Breadth |
54,00 m |
|
Draught |
Summer: 16,00 m |
|
Freeboard |
4.535 mm |
|
Depth |
30,00 m |
|
Speed |
23,5 knots |
|
Built |
2015 |
|
Date of completion |
25.08.2015 |
|
Builder |
Samsung Heavy Industries Co., Ltd. |
|
Yard number |
2094 |
|
Hull material |
Steel |
|
Watertight compartments |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/Doosan 11S90ME-C9.2 - 2 stroke 11 cylinder 900 x 3.260 mm diesel engine 63.910 kW / 86.834 hp at 84 rpm Built: 25.03.2015 Builder: Doosan Engine Co., Ltd., Gyeongnam - South Korea |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHO 40,14 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets 4.750 kVA - 3.800 kW - 5.435 hp 2x Main diesel generatorsets 3.500 kVA - 2.800 kW - 4.076 hp |
|
Emergency generator |
1x Diesel generatorset 438 kVA - 350 kW - 628 hp |
|
Number of holds |
10 |
|
Total capacity of holds |
337.708,1 m³ |
|
Tank capacities |
Fuel oil: 13.423 m³ |
|
Crew |
28 |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Général |
|
Owner |
SNC Pytheas 2094 |
|
Latest data adjustment |
18 February 2016 |
