Westerschelde 25 November 2015 |
 |
 |
 |
||
| Westerschelde 25/11/15 | Westerschelde 25/11/15 | Westerschelde 25/11/15 |
|
Name |

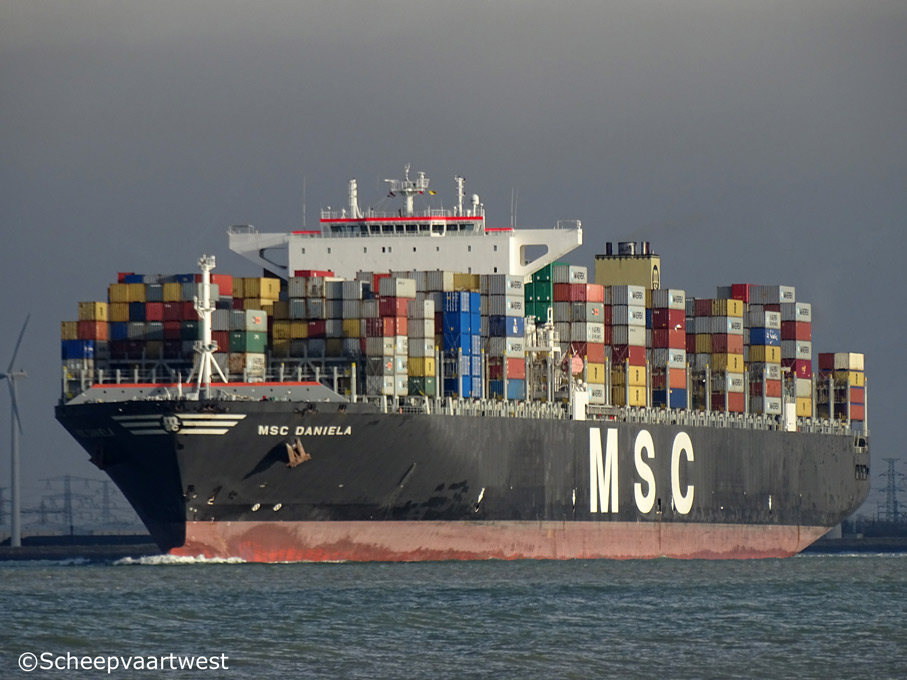

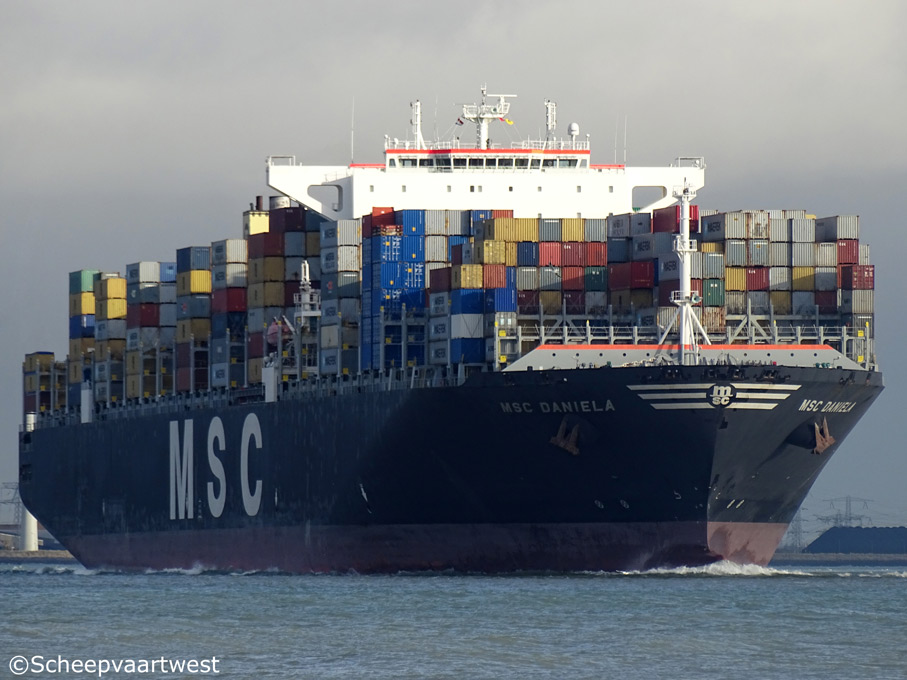

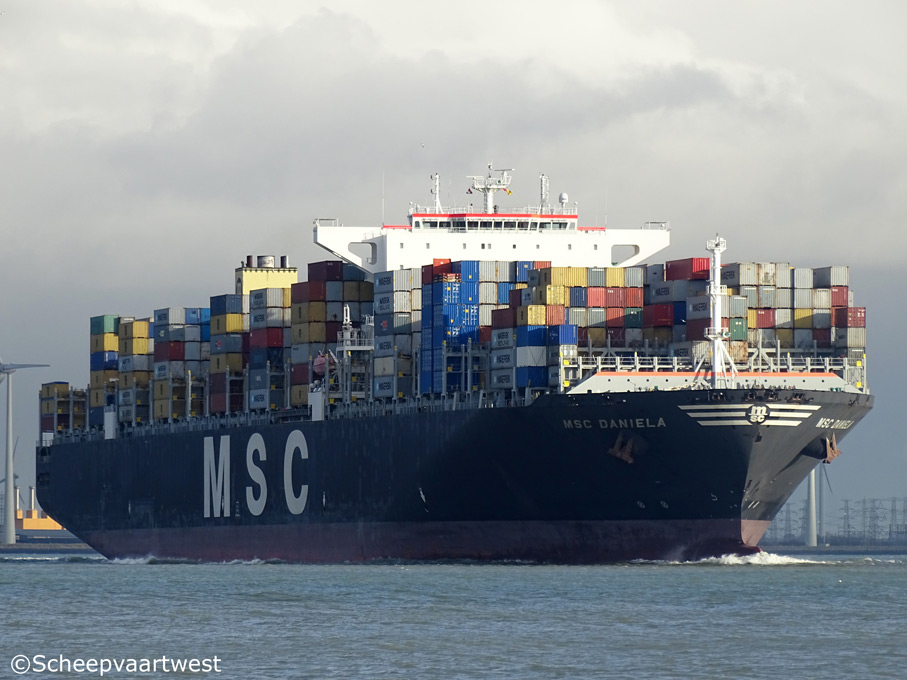

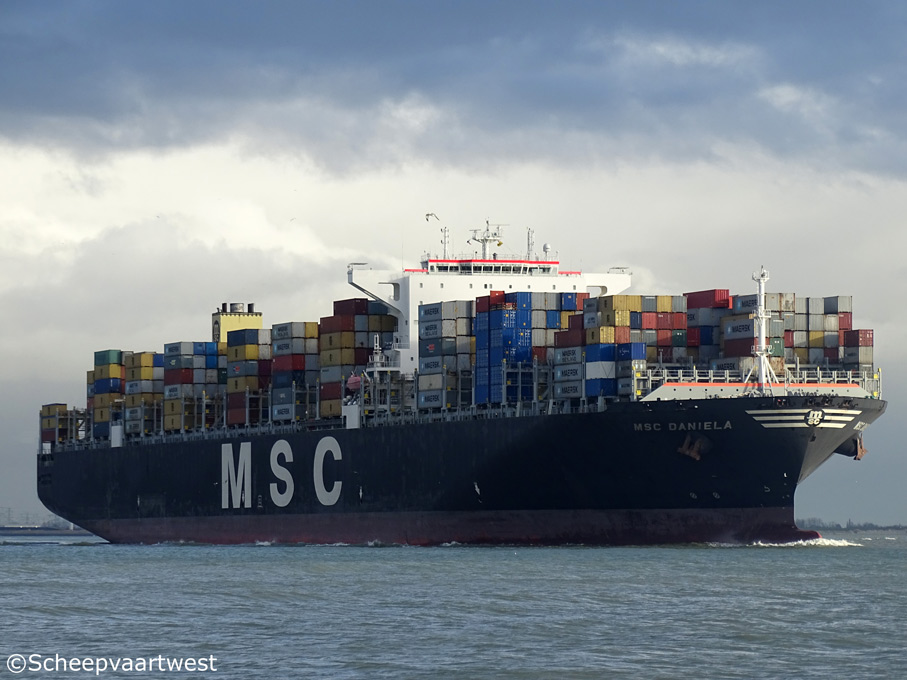

MSC DANIELA |
|
Type |
Cellular containership |
|
IMO-number |
9399002 |
|
Call sign |
3FIA2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
151.559 t |
|
DWT |
Summer: 162.867 t |
|
NT |
83.151 t |
|
Number of 20ft containers |
13.798 |
|
Container capacity 14t |
10.500 |
|
Reefer capacity |
1.000 |
|
Length |
366,07 m overall 350,00 m between perpendiculars 351,60 m registered |
|
Breadth |
51,24 m extreme |
|
Draught |
15,60 m |
|
Air draft |
164,84 m |
|
Forecastle |
175,04 m |
|
Poop |
20,02 m |
|
Depth |
29,90 m |
|
Speed |
Max.: 24,1 knots |
|
Built |
2008 |
|
Keel laid |
04.08.2008 |
|
Launch date |
15.10.2008 |
|
Date of completion |
15.12.2008 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard |
|
Yard number |
1708 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 12K98MC-C Mk7 - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW at 104,0 rpm Year of manufacture: 2009 Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (Keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,81 bat Heating surface: 76,0 m² 1x Steam boiler, exhaust gas heated - 9,81 bat Heating surface: 1.204,0 m² Year of manufacture: 2009 Manufacturer: KangRim Heavy Industries Co., Ltd. |
|
Electric installations |
4x Plants each 6.600 V - 4.225 kVA 1x Plant 450 V - 625 kVA 3x Plants each24 V - 36 Ah 1x Plant 24 V - 92 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 215 Ah 1x Plant 24 V - 300 Ah 2x Plants each110 V - 360 Ah |
|
Generators |
4x MAN-B&W 7L32/40 main diesel generatorsets each 4.225 kVA / 3.380 kW |
|
Emergency generator |
1x Cummins VTA 28-D-M diesel generatorset 625 kVA |
|
Batteries |
2x Batteries for automation each 360 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for start emergency engine 215 Ah 1x Battery for UPS radio 200 Ah 1x Battery for automation 92 Ah 3x Batteries for automation each 36 Ah |
|
Bow thruster |
2x Transverse thruster each 1.700 kW, forward |
|
Tank capacities |
46.569,5 m³ |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Length: 770,00 m Diameter: 122 mm |
|
Cargo gear |
Gearless |
|
Manager |
MSC Mediterranean Shipping Company S.r.l. |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Compania Naviera Daniela S.A. Calle 50, Edificio Universal 50 Planta Baja |
|
Latest data adjustment |
20 January 2016 |
