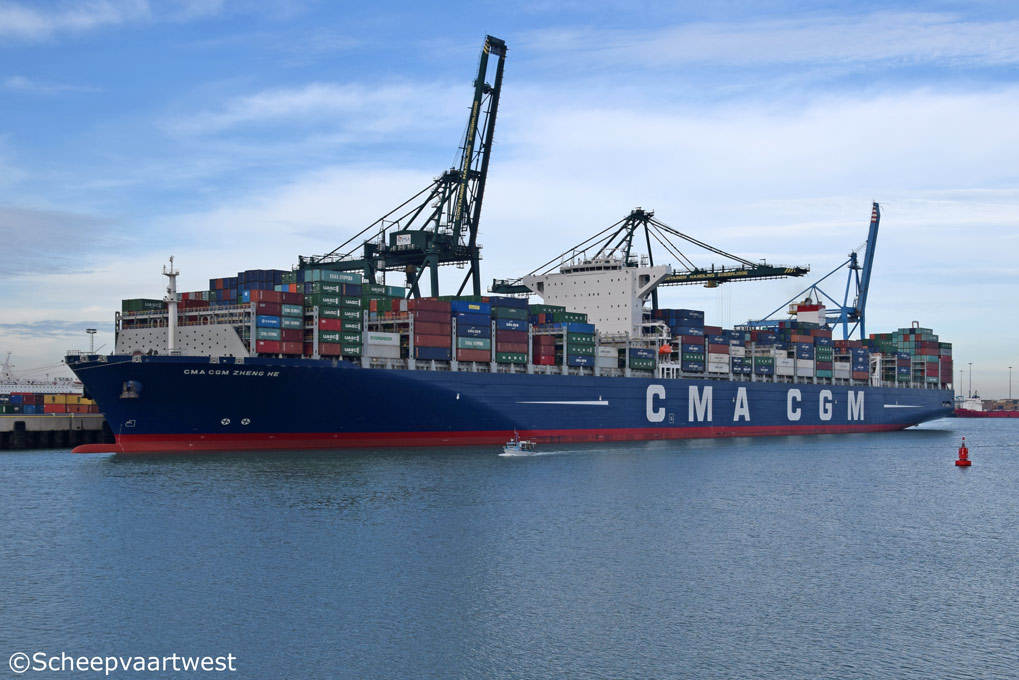

Zeebrugge 03 November 2015 |
|
Name |
CMA CGM ZHENG HE |
|
Type |
Cellular containership ULCS - Ultra Large Container Ships |
|
IMO-number |
9706906 |
|
Call sign |
2IQU8 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
178.228 t |
|
DWT |
185.000 t |
|
NT |
116.356 t |
|
Number of 20ft containers |
17.859 |
|
Reefer capacity |
1.100 |
|
Length |
399,20 m overall 381,40 m between perpendiculars |
|
Breadth |
54,00 m |
|
Draught |
Summer: 16,00 m |
|
Freeboard |
4.450 mm |
|
Depth |
30,20 m |
|
Speed |
22,9 knots |
|
Built |
2015 |
|
Date of completion |
11.09.2015 |
|
Builder |
Jiangnan Changxing Shipbuilding Co. Ltd.. |
|
Yard number |
H6001 |
|
Hull material |
Steel |
|
Watertight compartments |
15 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 11S90ME-C9.2 - 2 stroke 11 cylinder 900 x 3.260 mm diesel engine 63.910 kW / 86.834 hp at 84,0 rpm Built: 12.12.2014 Builder: Cssc-Mes Diesel Co.Ltd., Shanghai - China |
|
Propellers |
1x Screw propeller solid- aft at 84 rpm |
|
Boilers |
1x CHO Alfa Laval 40,14 m² - 10.,bar |
|
Generators |
4x Main diesel generatorsets each 5.400 kVA - 4.320 kW - 5.870 hp |
|
Emergency generator |
1x Diesel generatorset 375 kVA - 300 kW - 486 hp |
|
Number of holds |
12 |
|
Total capacity of holds |
366.223,9 m³ |
|
Tank capacities |
Fuel oil: 16.038,5 m³ |
|
Crew |
32 |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Owner |
CSSC (Hong Kong) Shipping Company Limited |
|
Latest data adjustment |
18 December 2015 |
