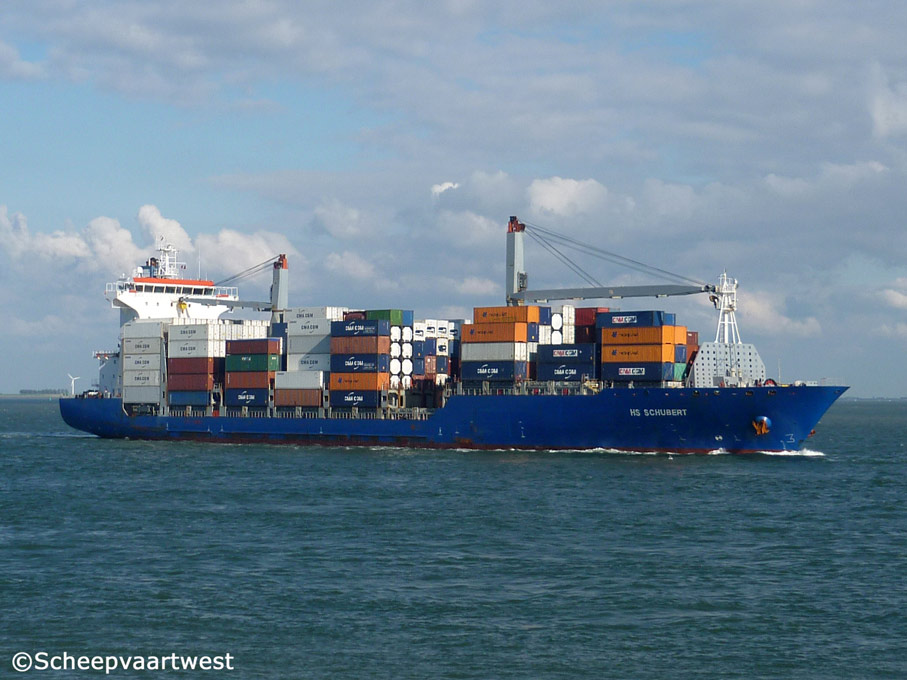

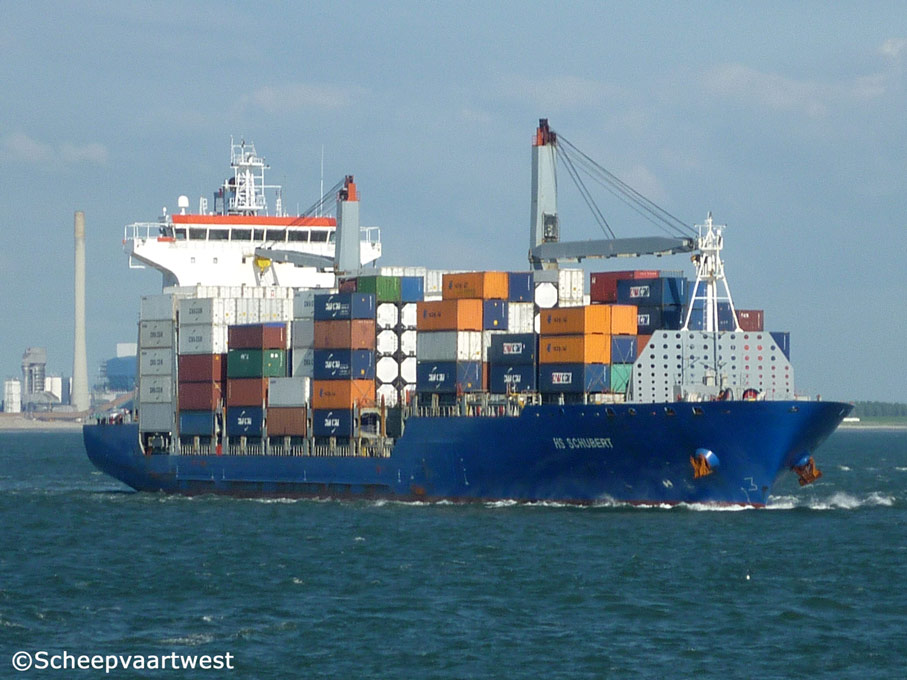

HS Schubert - IMO 9337597

Westerschelde 18 June 2012

Name

HS SCHUBERT

Previous names

11.2006 - 01.2009 Viking Osprey

Type

Cellular containership

IMO-number

9337597

Call sign

A8IC3

Flag

Liberia

Port of registry

Monrovia

GT

18.480 t

DWT

Summer: 23.689 t

NT

10.277 t

Number of 20ft containers

1.732

Container capacity 14t

1.330

Reefer capacity

320

Length

176,93 m overall

167,45 m registered

Breadth

27,40 m registered

Draught

10,90 m

Depth

14,30 m moulded

Speed

Service: 19,5 knots

Built

2006

Keel laid

24.07.2006

Launch date

11.10.2006

Date of completion

28.11.2006

Builder

Guangzhou Wenchong Shipyard Co., Ltd.
1, Wenchuan Road Hongshan Street, Huangpu District
Guangzhou
People's Republic of China

Yard number

GWS328

Hull material

Shipbuilding steel (standard)
Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W 7S60MC-C Mk8 - 2 sttroke 7 cylinder 600 x 2.400 mm diesel engine 16.660 kW / 22.651 bhp at 105,0 rpm

Year of manufacture: 2006

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
Shanghai ,200129
People's Republic of China

Propellers

1x Solid propeller (Keyless) - aft at 105,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 61,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 380,0 m²

Year of manufacture: 2006

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

3x Plants each 450/230 V - 1.900 kVA

1x Plant 450 V - 210 kVA

1x Plant 24 V - 56 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 195 Ah

Generators

3x Main diesel generatorsets each 1.900 kVA

Emergency generator

1x Diesel generatorset 210 kVA

Batteries

1x Battery for UPS navigation 195 Ah

1x Battery for automation 180 Ah

1x Battery for start emergency engine 56 Ah

Compressed air receivers

2x Receivers each 6.000 litres - 30,0 bar

1x Receiver 40 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Cargo gear

2x Cranes - SWL 45,0 t

Crew

30

Manager

Hansa Shipping GmbH & Co.
An der Alster 9
20099 Hamburg
Germany

Renamed

05.2014 Galani - Malta, Valletta - Call sign: 9HA3640

Latest data adjustment

18 October 2015
