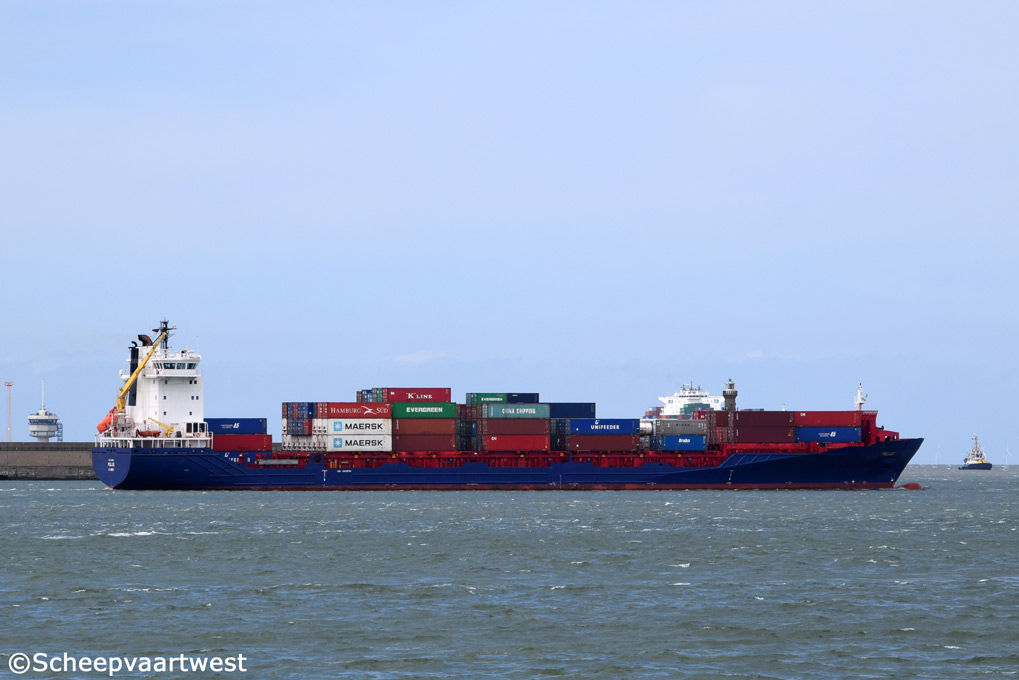

Pollux 04

Zeebrugge 01 May 2015

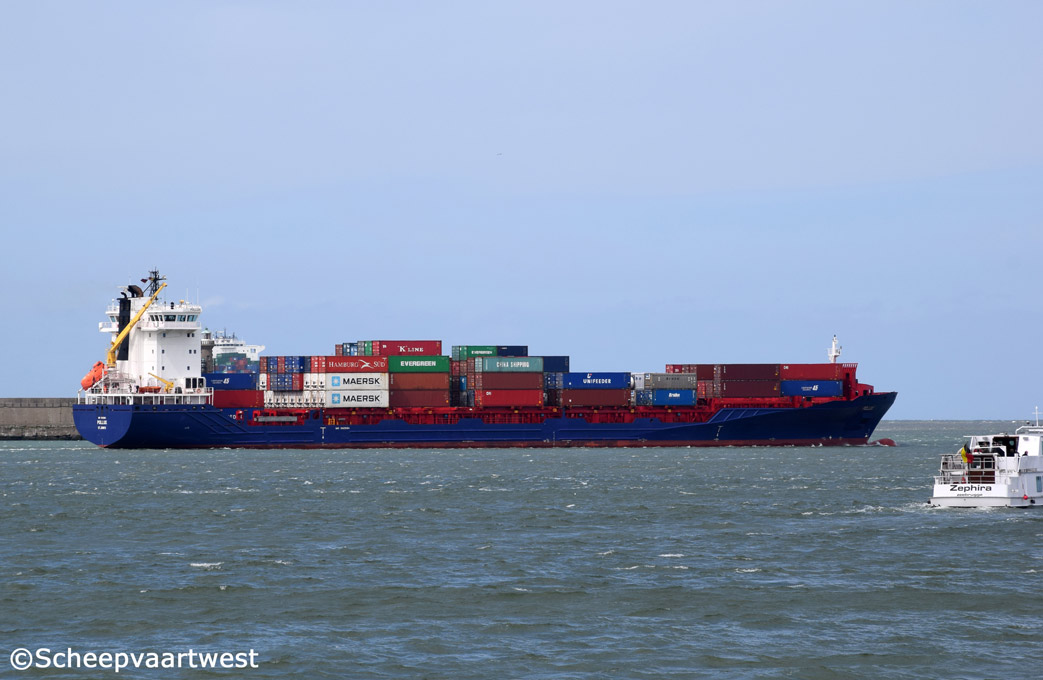

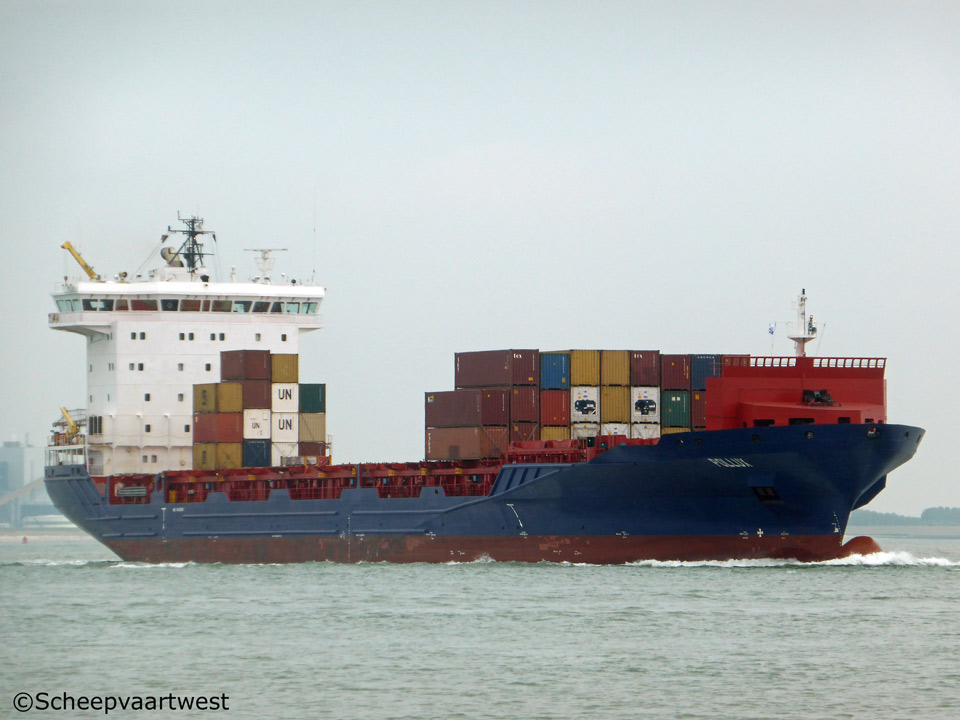

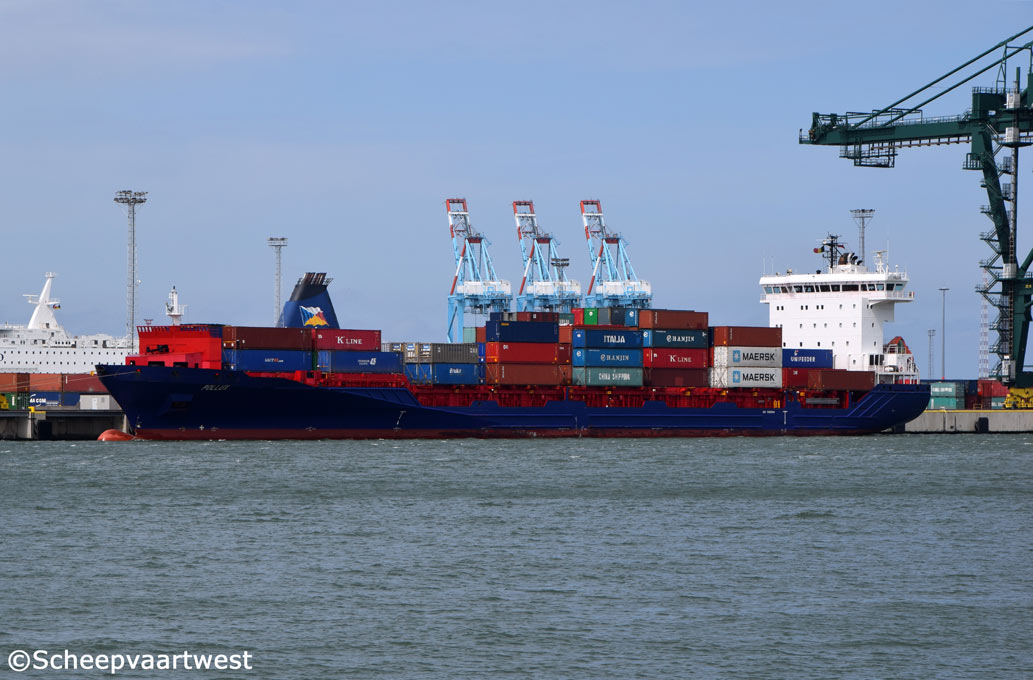

Pollux 05   Pollux 01   Pollux 06
Zeebrugge 01/05/2015 Zeebrugge 01/05/2015   Westerschelde 10/08/15



Name

POLLUX

Previous names

2009 Launch as: JRS Pollux

07.2009 - 07.2013 JRS Brisbane

Type

Cellular containership

IMO-number

9429194

Call sign

V2GK9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

11.550 t

DWT

Summer: 14.669 t

NT

5.839 t

Number of 20ft containers

877

Container capacity 14t

610

Reefer capacity

231

Length

157,64 m overall

148,82 m registered

Breadth

23,20m registered

Draught

Summer: 8,60 m

Forecastle

38,18 m

Poop

10,00 m

Depth

11,50 m moulded

Speed

18,3 knots

Built

2009

01.2014 Ship lengthened

Keel laid

06.09.2008

Launch date

01.03.2009

Date of completion

10.07.2009

Builder

Fujian Mawei Shipbuilding Ltd.
3, Chuan Zheng Road Mawei District
Fuzhou
People's Republic of China

Yard number

MW431-2

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engine 9.000 kW at 500 rpm

Year of manufacture: 2008

Manufacturer: Caterpillar Motoren Rostock GmbH
Werftallee 13
18119 Rostock
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 113 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 37,0 m²

Year of manufacture: 2008

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 183,0 m²

Year of manufacture: 2008

Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
Qingdao
People's Republic of China

Electric installations

2x Plants each 450 V - 1.712,5 kVA

1x Plant 450 V - 1.800 kVA

1x Plant 450 V - 687,5 kVA

2x Plants each 24 V - 85 Ah

2x Plants each 24 V - 102 Ah

2x Plants each 24 V - 390 Ah

Shaft generator

1x 1.800 kVA

Generators

3x Main diesel generatorsets each 1.712,5 kVA

Emergency generator

1x Diesel generatorset 687,5 kVA

Batteries

2x Batteries for start emergency engine each 390 Ah

2x Batteries for automation each 102 Ah

2x Batteries for UPS radio each 85 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver 20 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

Anchor equipment

3x Anchors weight each 5.250 kg

Chain length: 577,50 m

Cargo gear

Gearless

Crew

15

Crew size

17

Manager

Buss Shipping GmbH & Co. KG
Am Sandtorkai 48
20457 Hamburg
Federal Republic of Germany

Registered owner

MS "POLLUX" Feeder Schifffahrts GmbH & Co. KG
Am Sandtorkai 48
20457 Hamburg
Federal Republic of Germany

Latest data adjustment

12 May 2015
