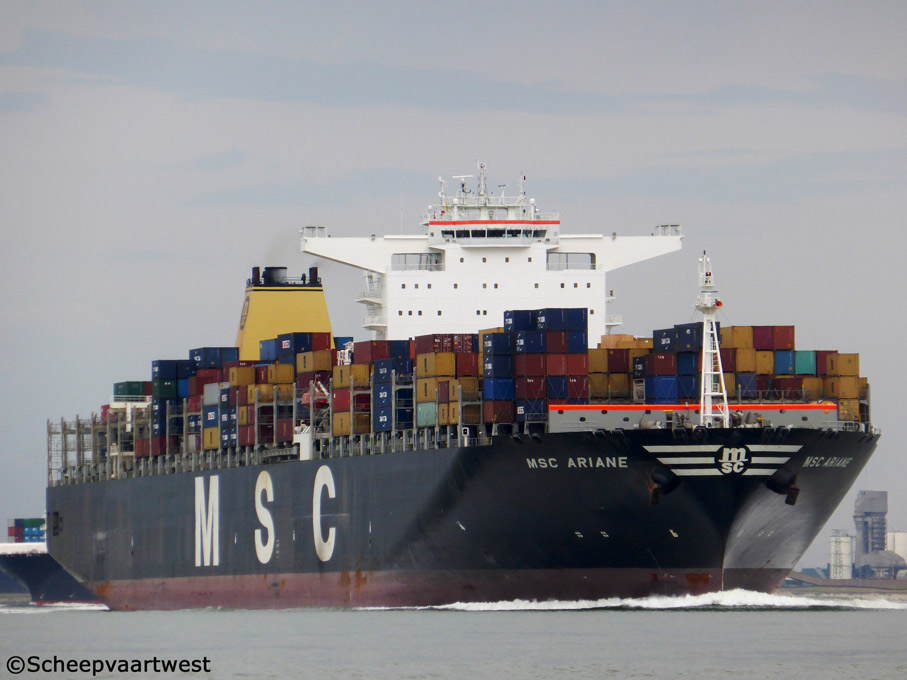

MSC Ariane 02

Westerschelde 03 August 2014

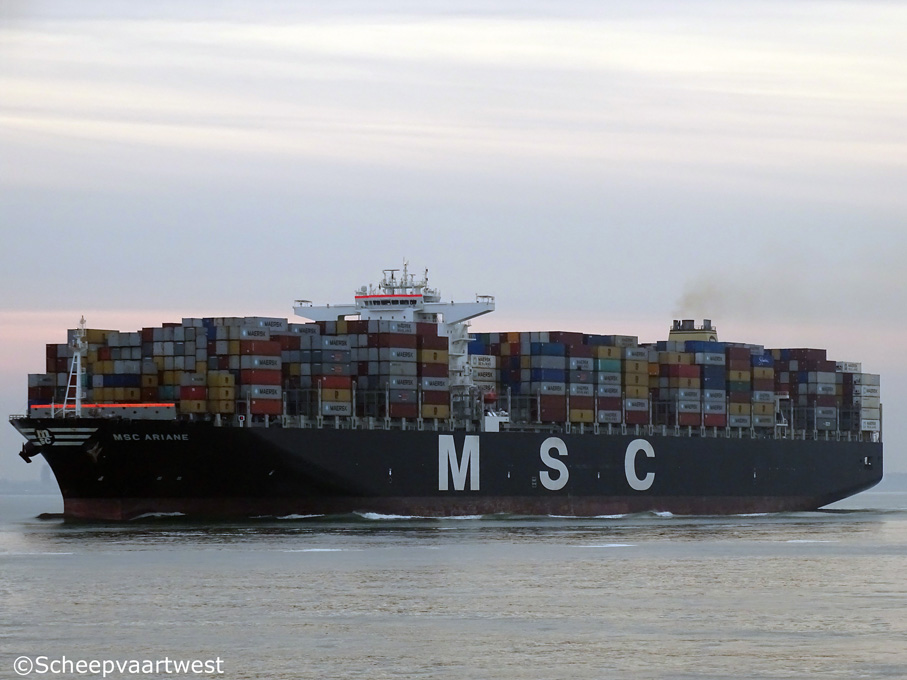

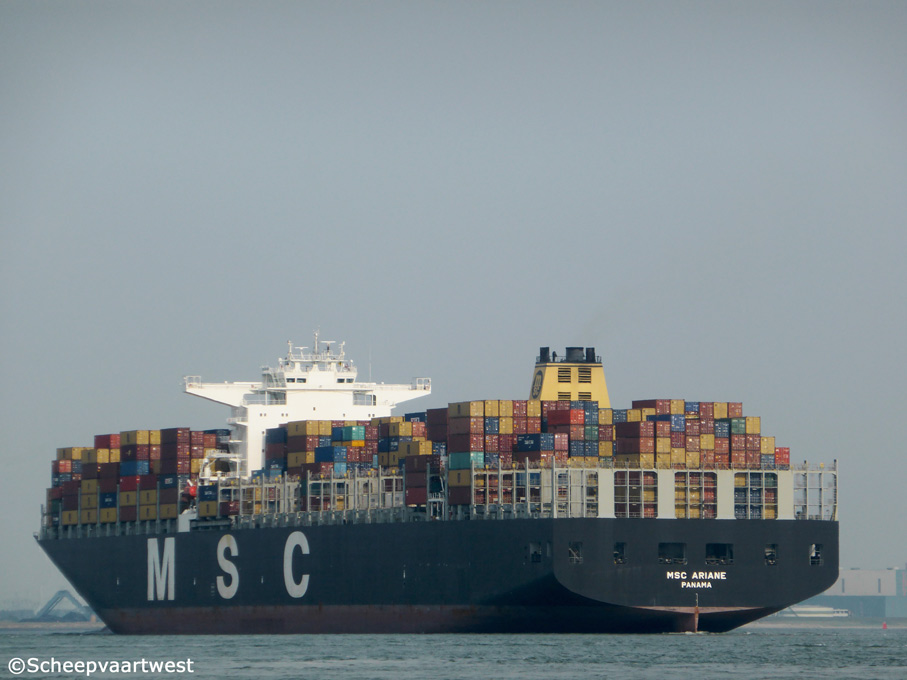

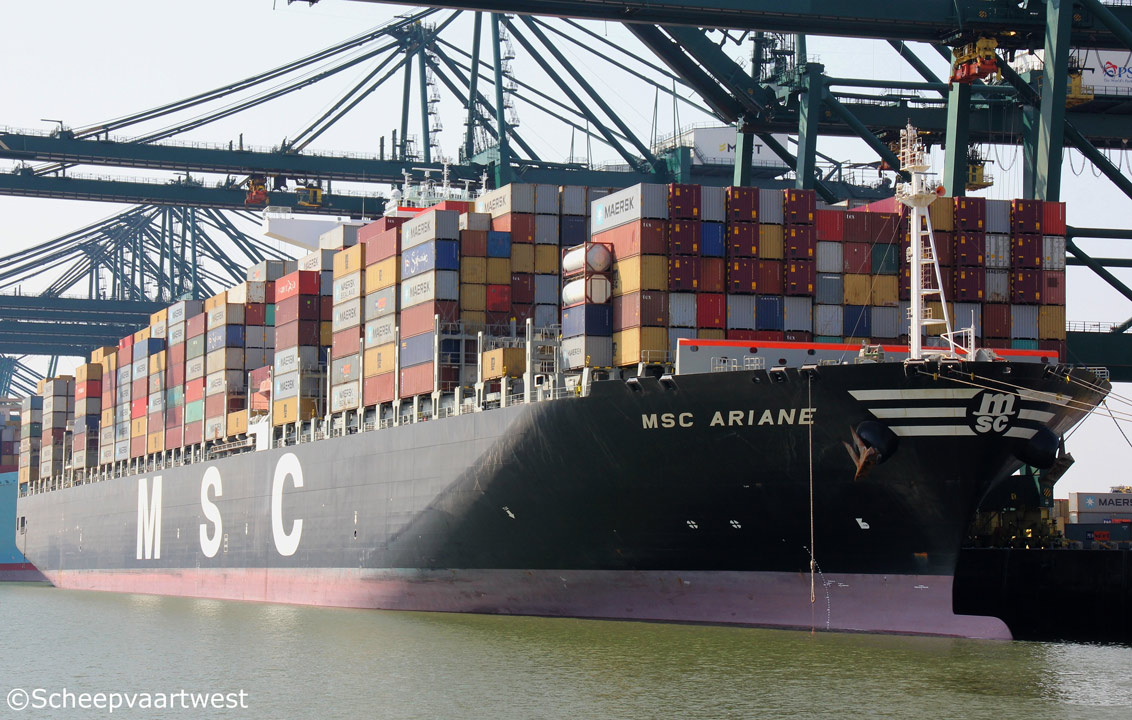

MSC Ariane 01   MSC Ariane 03   MSC Ariane 04   MSC Ariane 05
Westerschelde 01/08/14 Westerschelde 30/10/16 Doel, Belgium 29/08/17 Doel, Belgium 29/08/17



Name

MSC ARIANE

Type

Cellular containership

IMO-number

9484443

Call sign

3FDA3

Flag

Republic of Panama

Port of registry

Panama City

GT

143.521 t

DWT

154.503 t

NT

83.512 t

Number of 20ft containers

13.050

Container capacity 14t

9.400

Reefer capacity

2.000

Length

365,81 m overall

351,80 m registered

Breadth

48,40 m registered

Draught

16,00 m

Depth

29,90 m moulded

Speed

24,0 knoys

Built

2012

Keel laid

11.08.2011

Launch date

05.10.2011

Date of completion

18.01.2012

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard
3370, Geoje-daero
Geoje-si, Kyongsang-namdo
Republic of Korea

Yard number

4199

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC-C - 4 stroke 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW at 104,0 rpm

Year of manufacture: 2011

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 104,0 rpm

Boilers

Steam boiler, oil fired - 10,0 bar

Heating surface: 46,2 m²

Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 679,0 m²

Year of manufacture: 2011

Manufacturer: Aalborg Industries Ltd.
86, Guangzhou Road North Jiaozhou
Qingdao, Shandong
People's Republic of China

Electric installations

4x Plants each 6.600 V - 5.120 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 63 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 300 Ah

2x Plants each 108 V - 40 Ah

Generators

4x Main diesel generatorsets each 5.120 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Batteries

1x Battery for UPS radio 300 Ah

1x Battery for UPS navigation 300 Ah

1x Battery for automation 92 Ah

1x Battery for diesel control 63 Ah

2x Batteries for automation each 40 Ah

1x Battery for diesel control 15 Ah

Compressed air receivers

2x Receivers each 16.500 litres - 33,0 bar

1x Receiver 540 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 2000 litres - 7,7 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Chain length: 770,00 m

Cargo gear

Gearless

Crew size

30

Manager

MSC Mediterranean Shipping Company S.r.l.
Via Francesco Ciampa, 29
80063 Piano di Sorrento
Naples
Italy

Operator

MSC - Mediterranean Shipping Company

Registered owner

Ainara Commercial S.A.
102, Edificio Universal, Planta Baja Calle 50
Panama City
Republic of Panama

Latest data adjustment

25 December 2014
