Piraeus, Greece 18 June 2014 |
 |
| Piraeus, Greece 18/06/14 |
|
Name |

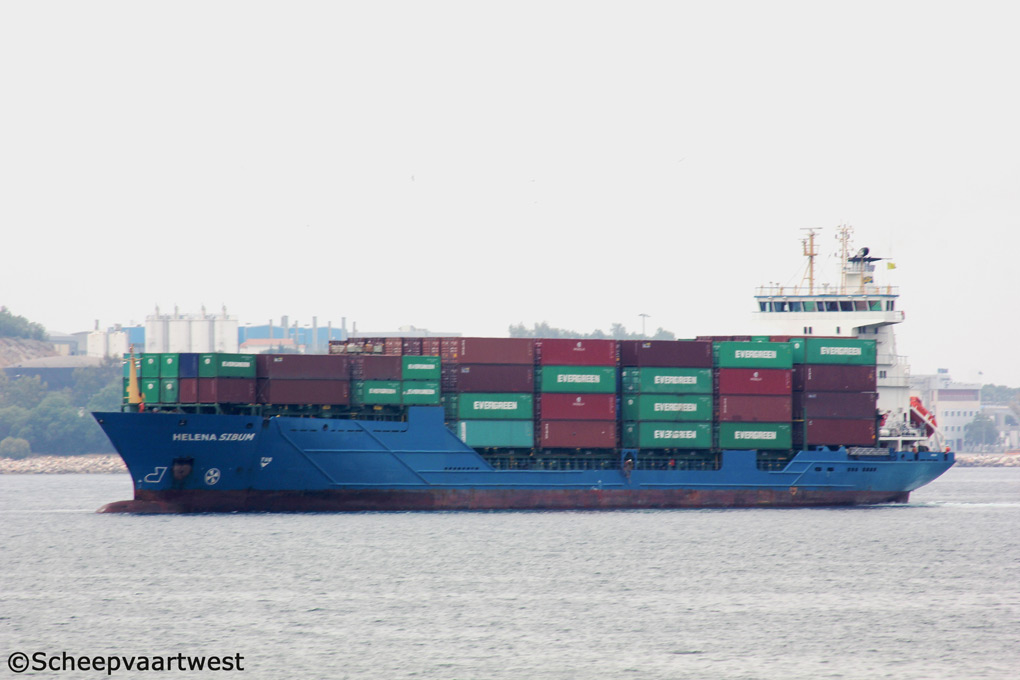

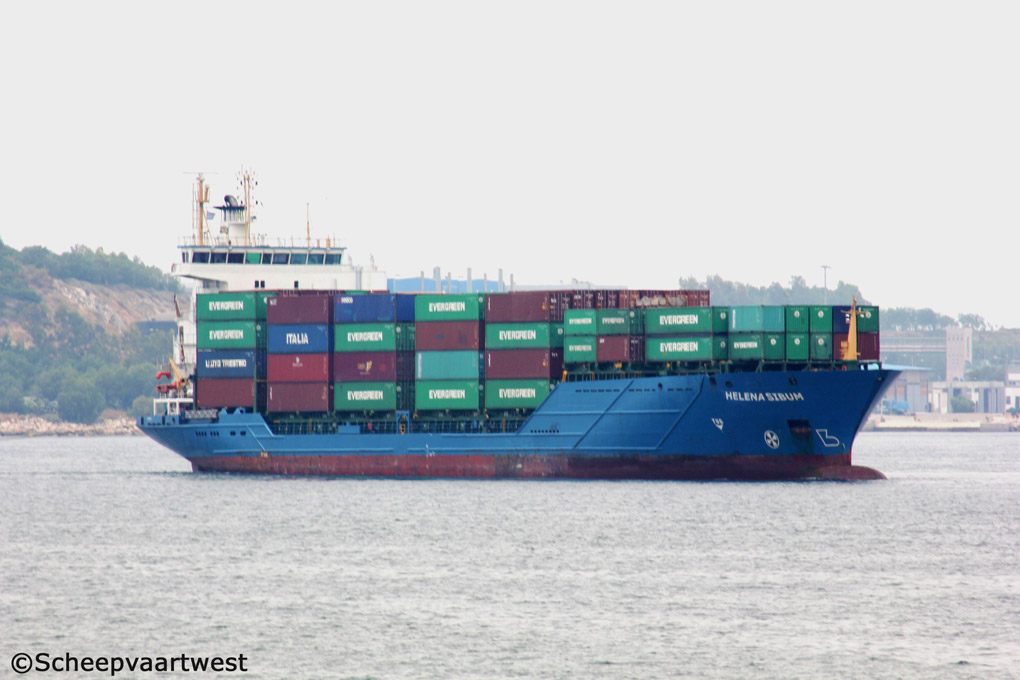

HELENA SIBUM |
|
Previous names |
2006 - 06.2008 Asia Star |
|
Type |
Containership - Feedervessel |
|
IMO-number |
9390824 |
|
Call sign |
V2CK9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.701 t |
|
DWT |
Summer: 8.238 t |
|
NT |
3.557 t |
|
Number of 20ft containers |
672 (alternatively 314 FEU + 32 TEU) |
|
Container capacity 14t |
408 |
|
Reefer capacity |
116 FEU (36 FEU in Holds and 80 FEU on Deck) |
|
Length |
132,60 m overall 123,40 m between perpendicular |
|
Breadth |
19,20 m |
|
Draught |
Summer: 7,21 m |
|
Freeboard |
2.004 mm |
|
Depth |
9,20 m to maindeck |
|
Speed |
Service: 17,5 knots |
|
Built |
2006 |
|
Date of completion |
24.08.2006 |
|
Builder |
Yangfan Group Co.,Ltd. |
|
Yard number |
2056 |
|
Hull material |
Steel |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43 - 4 stroke 7 cylinder 430 x 610 diesel engine - output 6.300 kW / 8.560 hp at 500 rpm Built: 2006 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Screw propeller controllable pitch Builder: Wärtsilä/Lips |
|
Boilers |
1x CHO 17,00 m² - 5,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 200 V Frequency: 50 Hz |
|
Shaft generator |
1x 1.500 kVA - 1.200 KW |
|
Generators |
2x VOLVO PENTA TAMD 165A main diesel generatorsets each 453 kVA - 362 kW - 516 hp |
|
Emergency generator |
1x VOLVO PENTA TAMD 165A diesel generatorset 453 kVA - 362 kW - 516 hp |
|
Bow thruster |
1x Output 410 kW |
|
Number of holds |
3 Hold 1: 25,20 x 16,00 m / 13,24 m Hlod 2: 25,20 x 16,00 m Hold 3:25,20 x 16,00 m |
|
Cargo hatchways |
3 Dimension: 2x 25,20 x 16,00 m 1x 12,30 x 16,00 m |
|
Tank capacities |
Fuel oil: 495,2 m³ / 576 t Ballast: 3.300 t Fresh water: 110 t Gasoil: 213 t |
|
Manager |
Reederei Bernd Sibum GmbH & Co. KG |
|
Registered owner |
MS Helena Sibum Schiffahrts GmbH & Co. |
|
Latest data adjustment |
18 August 2014 |
