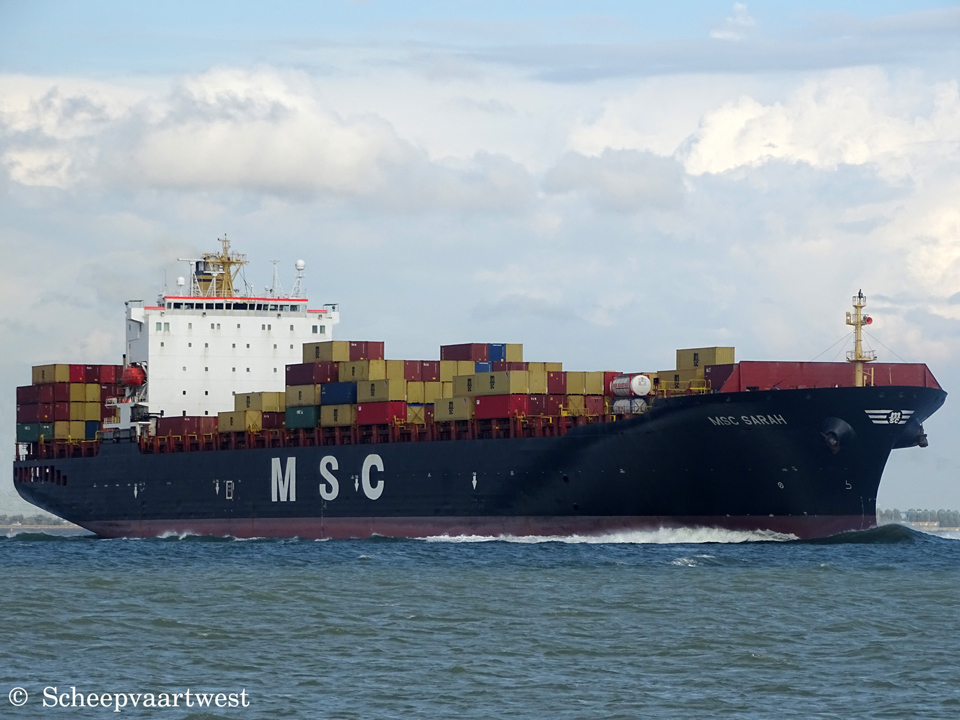

MSC Sarah 05

Westerschelde 12 August 2017

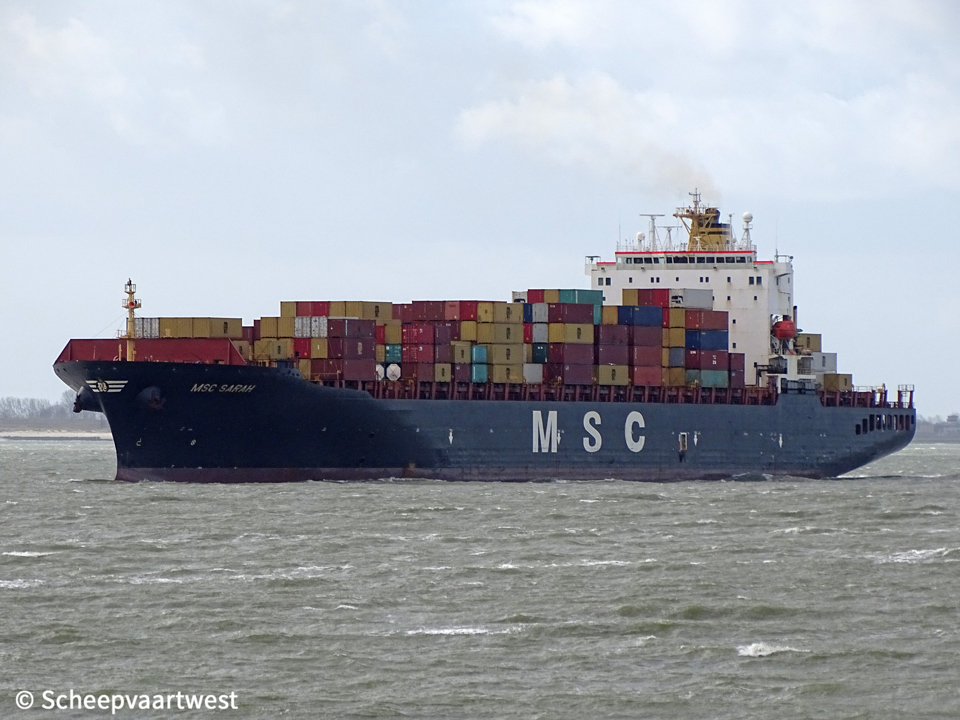

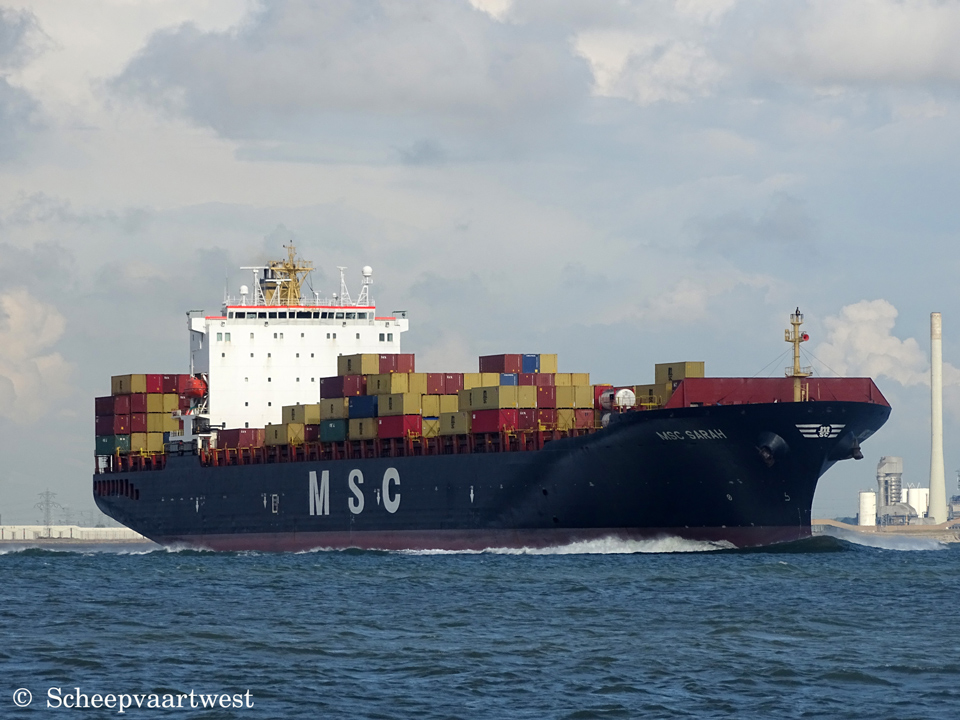

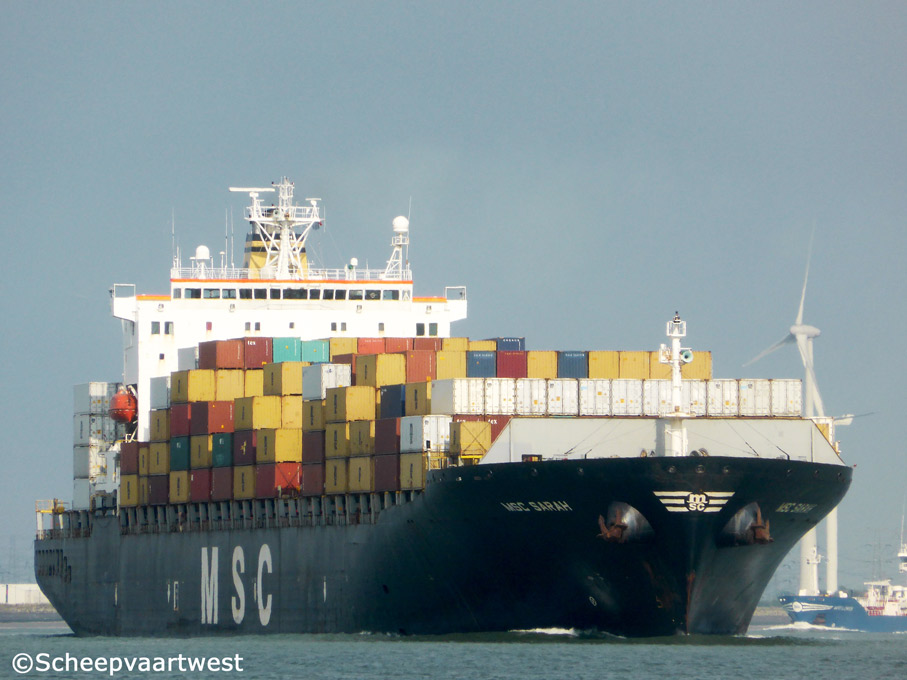

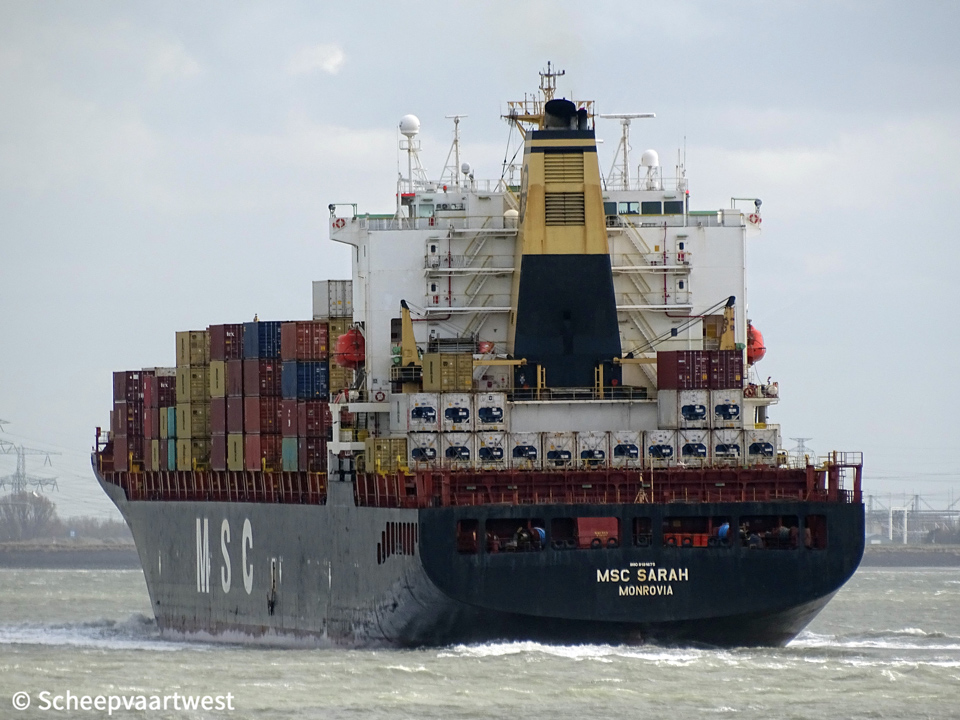

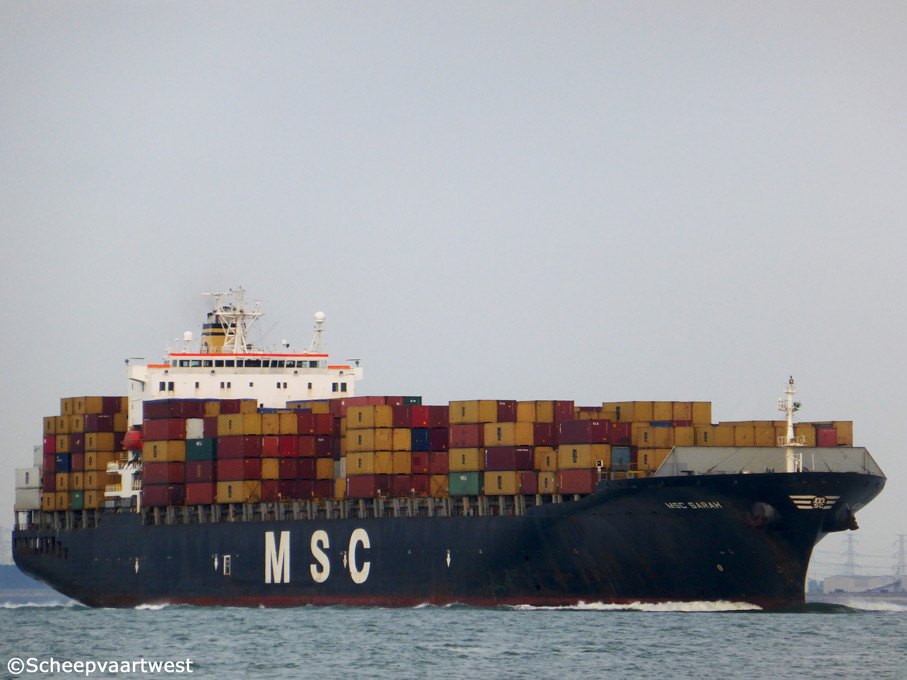

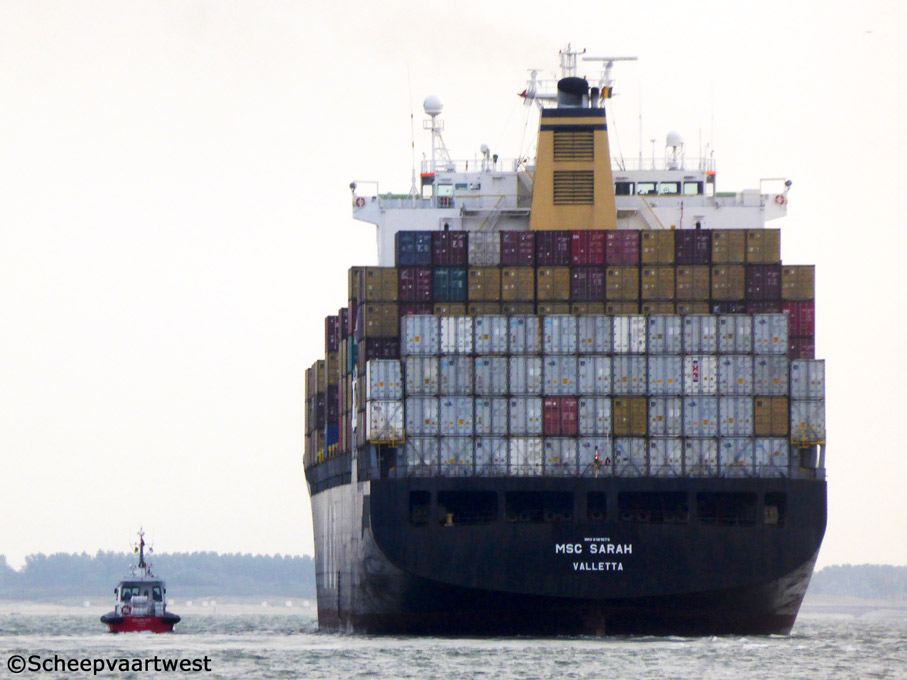

MSC Sarah 04   MSC Sarah 01   MSC Sarah 02   MSC Sarah 03   MSC Sarah 06   MSC Sarah 07
Westerschelde 13/08/17 Westerschelde 20/07/14 Westerschelde 31/07/14 Westerschelde 31/07/14   Westerschelde 25/02/20   Westerschelde 25/02/20

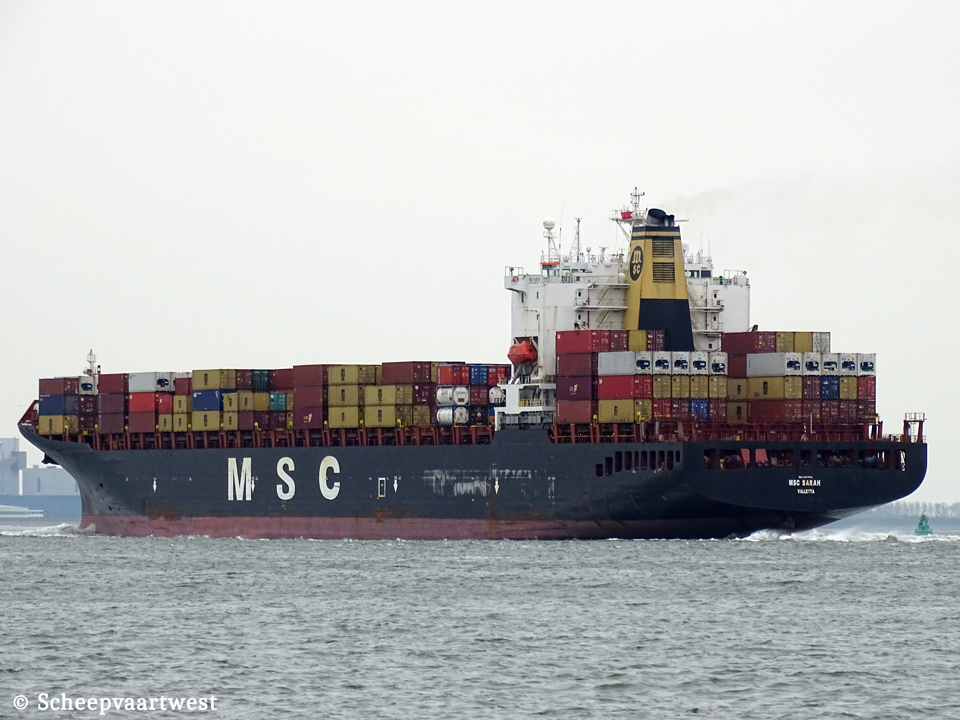

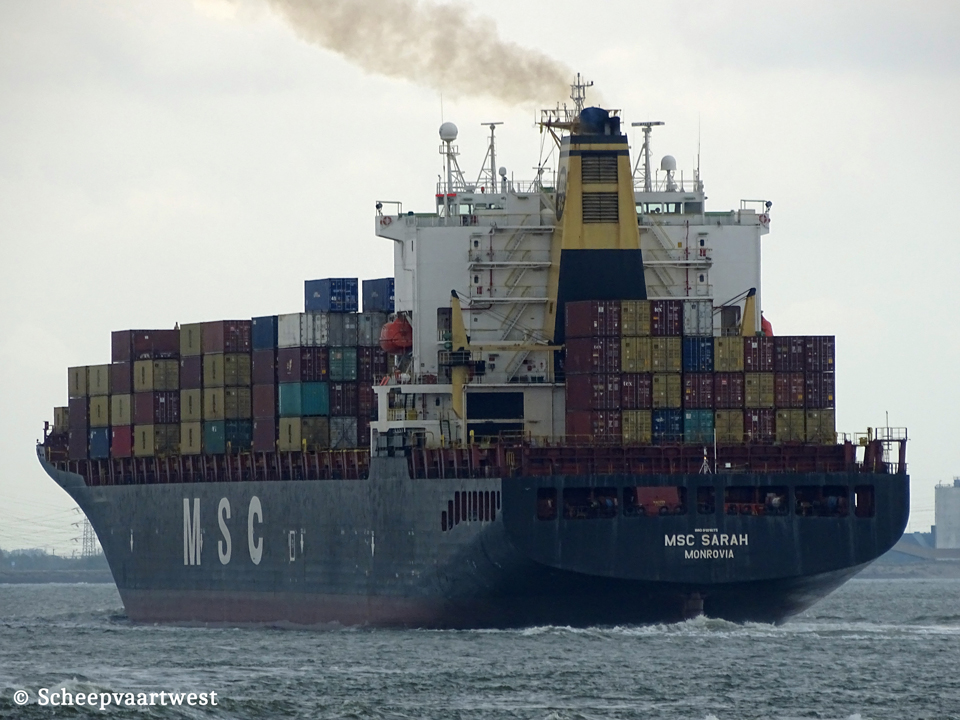

MSC Sarah IMO 9181675 08   MSC Sarah IMO 9181675 09
Westerschelde 18/04/16    Westerschelde 28/04/18


Name

MSC SARAH

Previous names

2002 - 2017 Saudi Yanbu

Type

Cellular containership - Panamax

IMO-number

9181675

Call sign

D5PE8

Flag

Liberia

Port of registry

Monrovia

Previous flags

07/2002 - 03/2008 Liberia, Monrovia - Call sign: A8EU9

03/2008 - 05/2013 Republic of Panama

2013 - 2017 Malta, Valletta - Call sign: 9HA3329

GT

53.208 t

DWT

Summer: 67.795 t

NT

35.277 t

Number of 20ft containers

4.400

Container capacity 14t

3.720

Reefer capacity

300

Length

294,00 m overall

281,90 m between perpendiculars

282,08 m registered

Breadth

32,25 m registered

Draught

13,52 m

Freeboard

7.961 mm

Depth

17,28 m

Speed

24,0 knots

Built

2000

Keel laid

07/06/1999

Launch date

19/09/1999

Date of completion

04/01/2000

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

530, Jangpyeong-ri, Sinhyeon-eup

Geoje, Kyongsang-namdo

Republic of Korea

Yard number

1262

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 9K90MC - 2 stroke single acting 9 cylinder 900 x 2.550 mm combustion engine 41.145 kW / 55.941 hp at 94,0 rpm

Year of manufacture: 1999

Manufacturer: HSD Engine Co., Ltd. - South Korea

Propellers

1x Solid propeller (Keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 99,0 m²

1x Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 1.000,0 m²

Year of manufacture: 1999

Manufacturer: Thyssen Krupp Marine Systems GmbH

Werftstr. 112-114

24143 Kiel

Federal Republic of Germany

Electric installations

1x Plant 440/220 V - 1.875 kVA

2x Plants each 440/220 V - 2.500 kVA

1x Plant 440 V - 250 kVA

Generators

1x Daihatsu 6DK-28 - 4 stroke 6 cylinder 280 x 390 mm diesel engine 1.597 kW connected with generator 1.500 ekW / 1.875 kVA - 450 Volt 60 Hz

2x Daihatsu 8DK-28 - 4 stroke 8 cylinder 280 x 390 mm diesel engine each 2.170 kW connected with generators each 2.000 ekW / 2.500 kVA - 450 Volt 60 Hz

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 12.500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 1.500 litres - 7,0 bar

Bow thruster

1x Transverse thruster 2.000 kW / 2.719 bhp, forward

Number holds

8

Tank capacities

Fuel oil: 6.650 m³

Ballast water: 17.500 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Diameter: 87 mm

Cargo gear

Gearless

Crew size

35

Crew

26

ISM & commercial manager

MSC Shipmanagement Limited

MSC House 8, Spyrou Kyprianou Avenue

3070 Limassol

Republic of Cyprus

Operator

MSC - Mediterranean Shipping Company S.A.

chemin Rieu, 12-14

1208 Geneva

Switzerland

Registered owner

Sarah Oceanic Inc.

Latest data adjustment

21 August 2022
