MSC Mia Summer - IMO 9169067

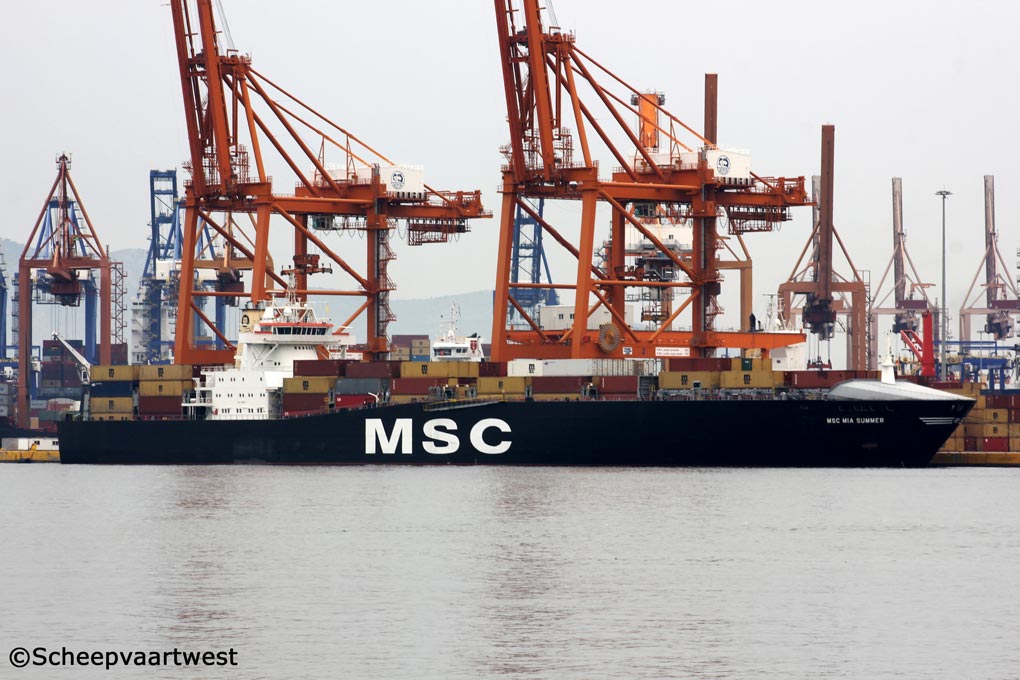

Piraeus - Greece 18 June 2014

Name

MSC MIA SUMMER

Previous names

1999 - 08.2000 Norasia Scarlet

2000 - 07.2001 ADCL Scarlet

2001 - 03.2005 Buckinghamshire

Type

Cellular containership

IMO-number

9169067

Call sign

9HA2638

Flag

Malta

Port of registry

Valletta

GT

25.219 t

DWT

23.487 t

NT

8.602 t

Number of 20ft containers

1.388

Container capacity 14t

821

Reefer capacity

200

Length

215,98 m overall

201,86 m registered

Breadth

26,66 m registered

Draught

11,40 m

Freeboard

4.712 mm

Depth

18,95 m moulded

Speed

Max.: 25,3 knots

Built

1999

Keel laid

29.06.1998

Launch date

04.12.1998

Date of completion

29.01.1999

Builder

HDW Howaldswerke Deutsche Werft AG
Germany

Yard number

340

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W 9L58/64 - 4 stroke 9 cylinder 580 x 640 mm diesel engine each 12.510 kW total 25.020 kW / 34.018 hp at 428 rpm

Year of manufacture: 1998

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 95,0 rpm

Boilers

Steam boiler, oil fired - 10,0 bar

Heating surface: 70,0 m²

Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 186,0 m²

Year of manufacture: 1998

Manufacturer: ThyssenKrupp Marine Systems GmbH
Werftstr. 112-114
24143 Kiel
Federal Republic of Germany

Electric installations

2x Plants each 440/220 V - 1.500 kVA

1x Plant 440 V - 2.500 kVA

1x Plant 440 V - 213 kVA

Shaft generator

1x 2.500 kVA

Generators

2x Main diesel generatorsets each 1.500 kVA

Emergency generator

1x Diesel generatorset 213 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 40 litres - 10,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 1.000 kW, forward

Cargo capacity

Grain: 45.310 m³

Tank capacities

Fuel oil: 2.001 m³

Water ballast: 4.877 m³

Anchor equipment

3x Anchors weight each 7.350 kg

Chain length: 605,00 m

Cargo gear

Gearless

Manager

MSC Shipmanagement Ltd.
MSC House 8, Spyrou Kyprianou Avenue
3070 Limassol
Republic of Cyprus

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Compania Naviera Mia Summer S.A.
c/o MSC Shipmanagement Ltd.
MSC House 8, Spyrou Kyprianou Avenue
3070 Limassol
Republic of Cyprus

Latest data adjustment

07 August 2014
