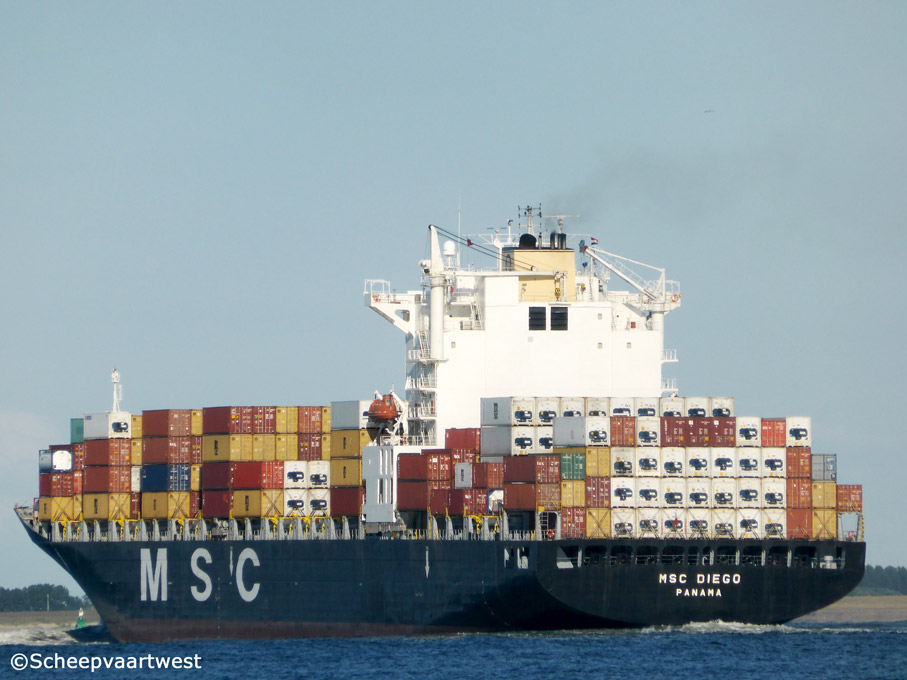

MSC Diego 01

Westerschelde 30 June 2014

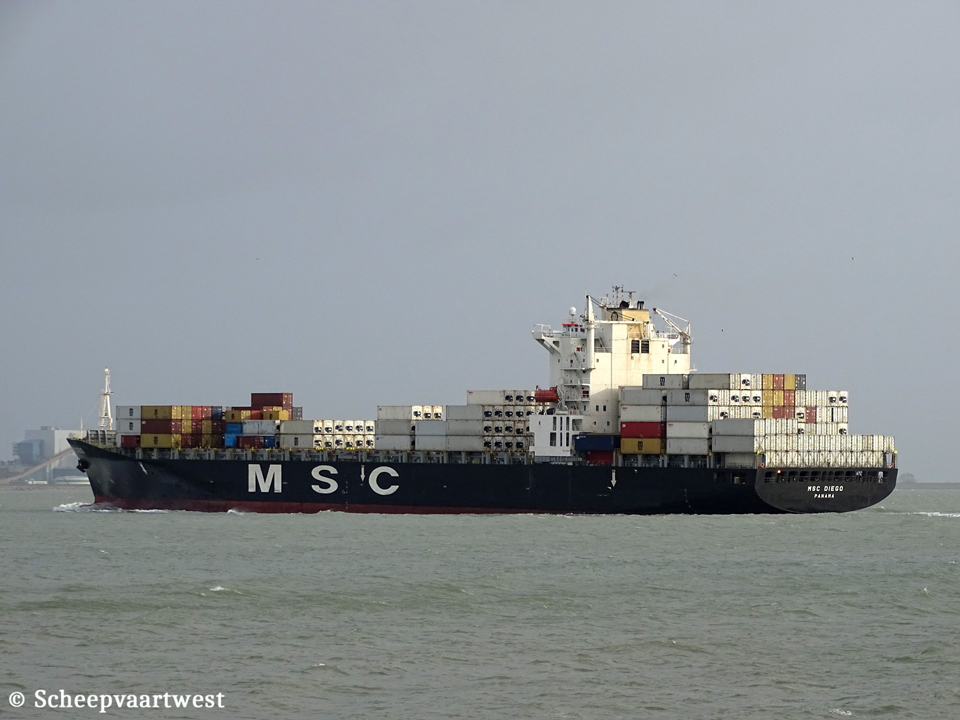

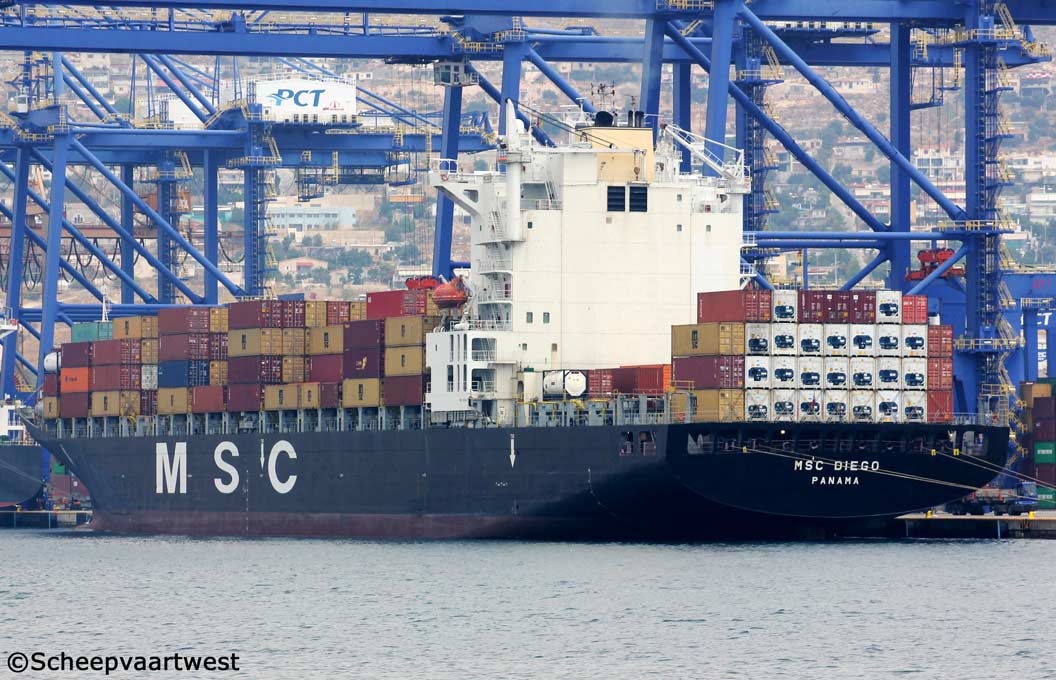

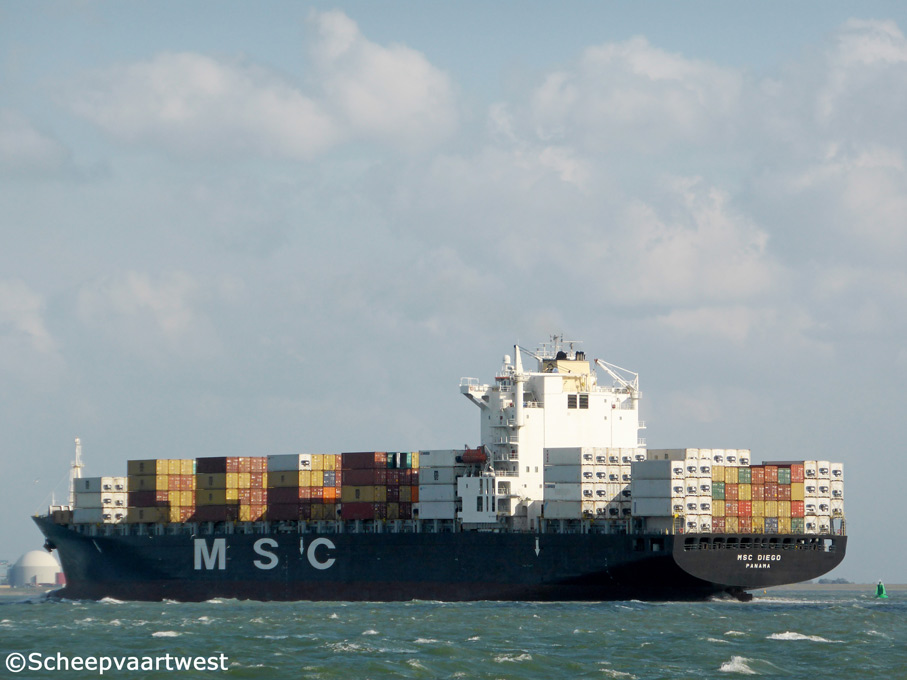

MSC Diego 02   MSC Diego 03   MSC Diego IMO 9202649 04
Piraeus, Greece 17/06/14 Westerschelde 09/10/14   Westerschelde 08/01/19



Name

MSC DIEGO

Type

Cellular containership

IMO-number

9202649

Call sign

3FZP8

Flag

Republic of Panama

Port of registry

Panama City

GT

40.631 t

DWT

Summer: 56.889 t

NT

23.676 t

Number of 20ft containers

4.056

Container capacity 14t

3.350

Reefer capacity

150

Length

259,60 m overall

245,99 m registered

Breadth

32,20 m registered

Draught

13,00 m

Keel to mast end

52,80 m

Forecastle

17,79 m

Freeboard

6.050 mm

Depth

19,00 m

Speed

Max.: 23,7 knots

Built

1999

Keel laid

01/09/1998

Launch date

28/11/1998

Date of completion

28/01/1999

Builder

Hanjin Heavy Industries Co., Ltd.

29, 5-Ka, Pongnae-dong Yongdo-gu

Busan

Republic of Korea

Yard number

063

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Continuous decks

2

Main engine

1x Sulzer 8RTA48C - 2 stroke 8 cylinder 840 x 2.400 mm combustion engine 32.420 kW at 102,0 rpm

Year of manufacture: 1998

Manufacturer: Korea Heavy Industries & Construction Co., Ltd.

555, Kyuigok-dong

Changwon 641-792

Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 6,9 bar

Heating surface: 35,0 m²

1x Steam boiler, exhaust gas heated - 6,9 bar

Heating surface: 277,0 m²

Year of manufacture: 1998

Manufacturer: KangRim Industries Co., Ltd. (1st Factory)

505 Shinpyung-dong, Saha-gu

Busan

South Korea

Electric installations

4x Plants each 440/220 V - 1.325 kVA

1x Plant 440 V - 188 kVA

Generators

4x Main diesel generatorsets each 1.325 kVA / 1.060 kW

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 8.300 litres - 32,4 bar

1x Receiver 500 litres - 32,4 bar

1x Receiver 200 litres - 8,8 bar

1x Receiver 800 litres - 8,6 bar

2x Receivers each 15 litres - 7,0 bar

Bow thruster

1x Variable pitch propeller KAMEWA - 1.600 kW, forward

Number of holds

7

Number of hatches

14

Tank capacities

Fuel oil: 6.411 m³

Water ballast: 13.219 m³

Anchor equipment

3x Anchors weight each 11.700 kg

Chain length: 687,50 m

Cargo gear

Gearless

Commercial manager

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

MSC Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa, 29

80063 Piano di Sorrento

Naples

Italy

Registered owner

Med Delta S.A. - Republic of Panama

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

16 August 2022
