Westerschelde 18 June 2020 |
 |
 |
 |
 |
|||
| Westerschelde 04/07/18 | Westerschelde 04/07/18 | Westerschelde 19/05/14 | Westerschelde 13/05/20 | |||
|
Name |

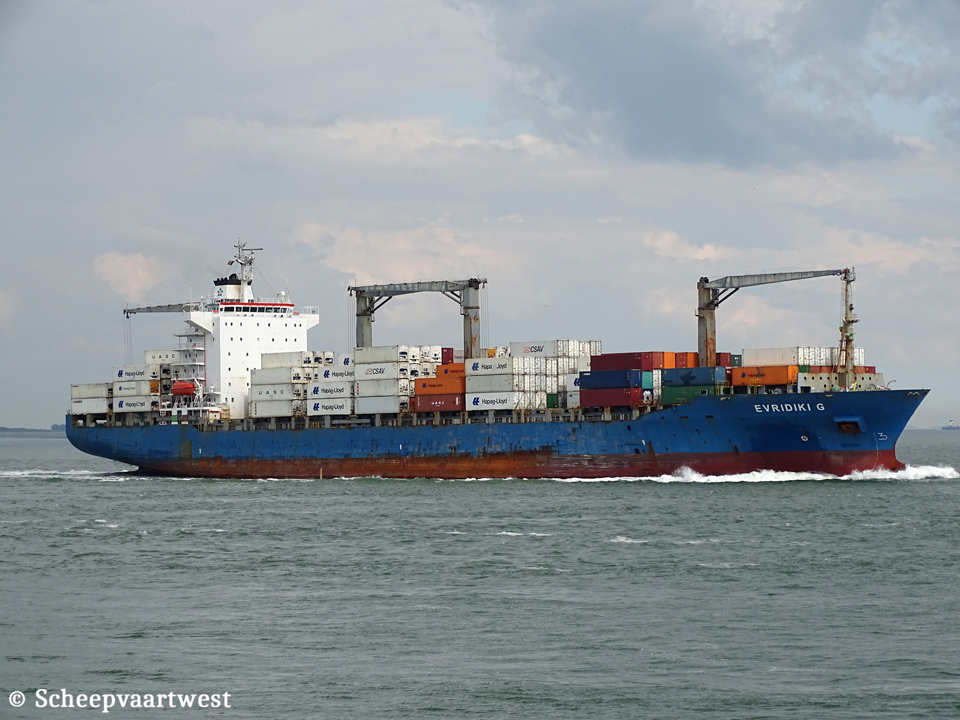

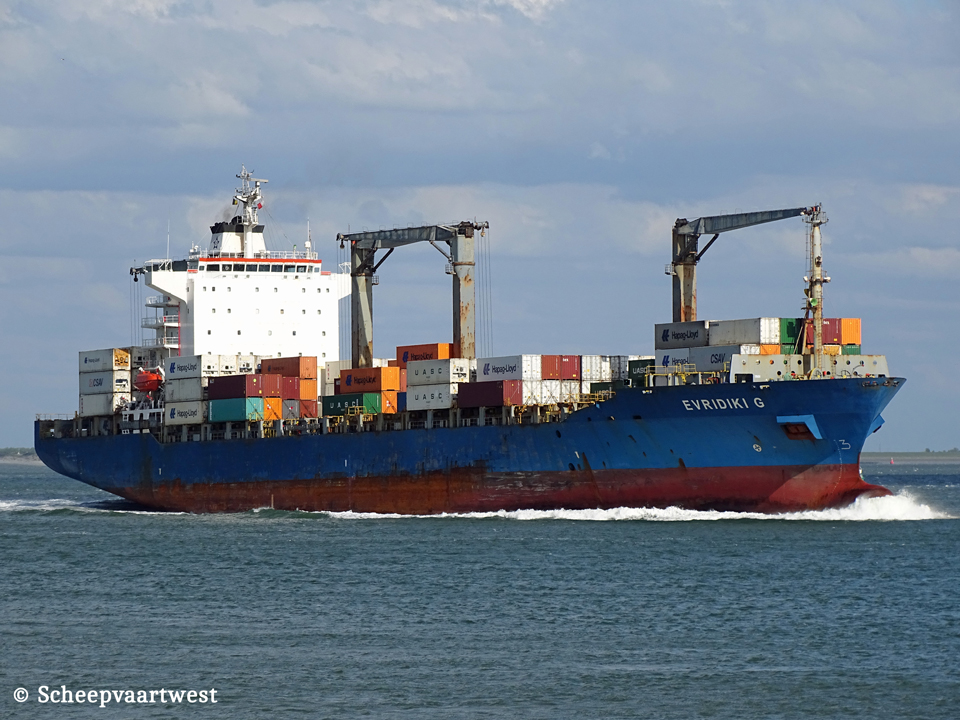

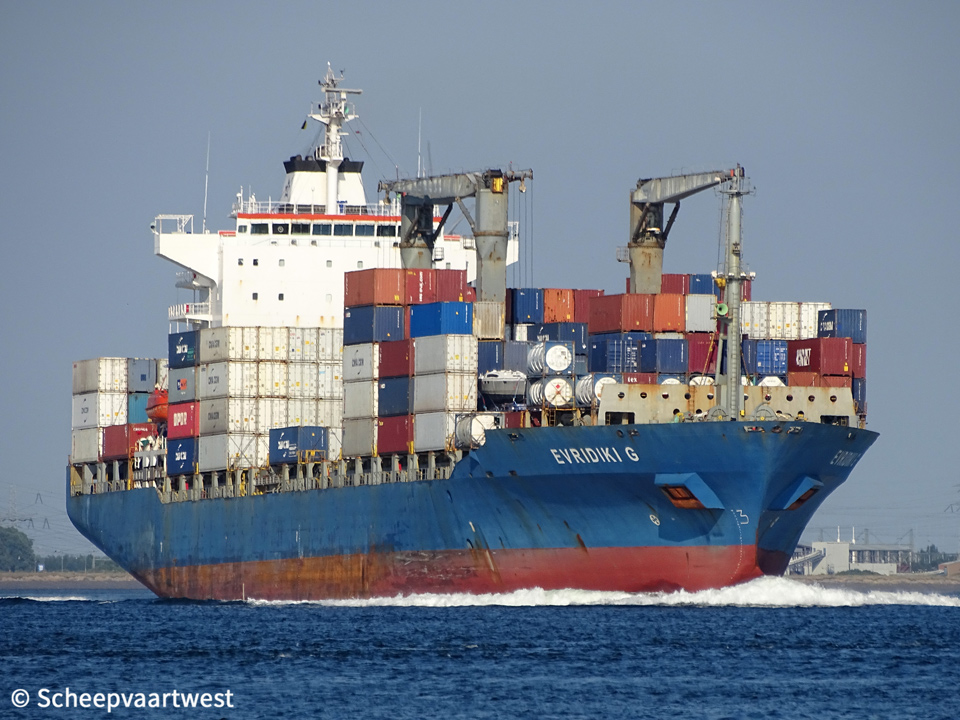

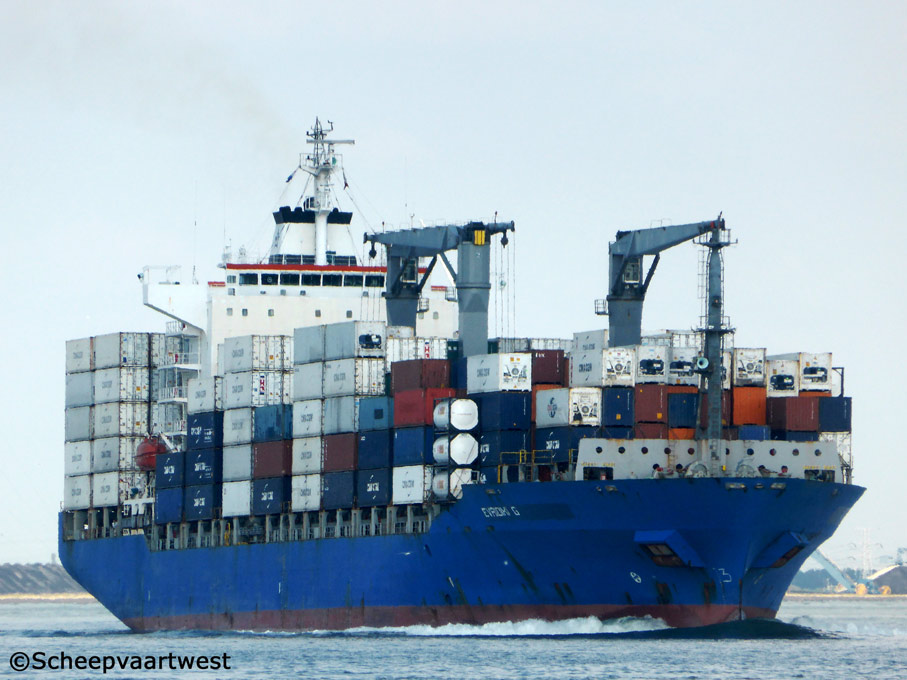

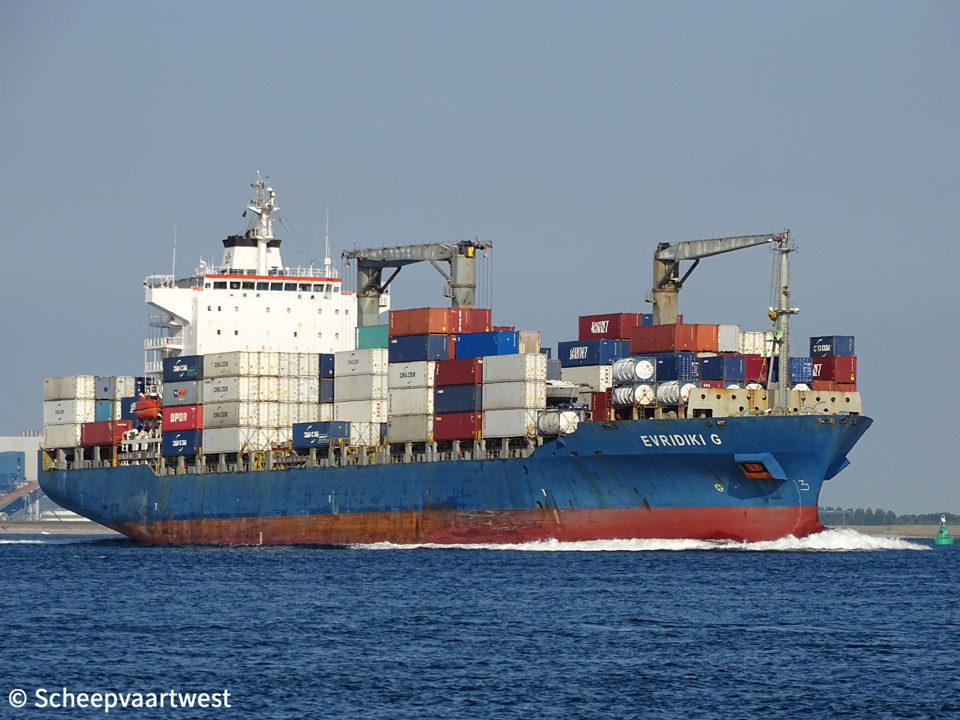

EVRIDIKI G |
|
Previous names |
2001 - 08.2006 Elisabeth Schulte 2006 - 06.2013 Maersk Noumea |
|
Type |
Self-sustained cellular container vessel |
|
IMO-number |
9231482 |
|
Call sign |
A8QD8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
26.582 t registered Suez: 27.589,96 t |
|
DWT |
Summer: 34.654 t |
|
NT |
12.715 t registered Suez: 22.566,89 t Panama: 23.521 t |
|
Light ship |
11.071 t |
|
Displacement |
45.725 t |
|
Number of 20ft containers |
In hold: 944 On deck: 1.612 Total: 2.556 |
|
Container capacity 14t |
1.850 |
|
Reefer capacity |
600 |
|
Length |
210,07 m overall 199,00 m between perpendiculars 200,55 m registered |
|
Breadth |
30,20 m registered |
|
Draught |
11,50 m |
|
Forecastle |
26,37 m |
|
Poop |
38,50 m |
|
Freeboard |
5.240 mm |
|
Depth |
16,70 m moulded |
|
Speed |
Max.: 21,9 knots |
|
Built |
2001 |
|
Keel laid |
05/02/2001 |
|
Launch date |
07/04/2001 |
|
Date of completion |
01/06/2001 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Yard number |
1305 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai/Sulzer 7RTA 72U-B - 4 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm Year of manufacture: 2001 Manufacturer: Hyundai Engine & Machinery Co., Ltd. Ulsan Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft at 99,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,9 bar Heating surface: 30,0 m² 1x Steam boiler, exhaust gas heated - 7,9 bar Heating surface:304,0 m² Year of manufacture: 2001 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) 505 Shinpyung-dong, Saha-gu Busan Republic of Korea |
|
Electric installations |
4x Plants each 440/220 V - 2.000 kVA 1x Plant 440 V - 188 kVA |
|
Generators |
4x Hyundai/MAN-B&W main diesel generatorsets each 2.000 kVA / 1.680 kW |
|
Emergency generator |
1x Diesel generatorset 188 kVA |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 8,8 bar 1x Receiver 200 litres - 8,8 bar |
|
Bow thruster |
1x Transverse thruster KAWASAKI - 1000 kW, forward |
|
Number of holds |
5 |
|
Hatch covers |
29 - Pontoon type |
|
Ventilation |
Electrically ventilated 6 air-changes/hour basis empty hold |
|
Tank capacities |
Fuel: 3.918 m³ Water ballast: 10.220 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
4x Single cranes - SWL 40,0 t each Outreach 14,40 m |
|
Crew size |
27 |
|
Manager |
Eurobulk Ltd. 4, Messogiou & Evropis Street 151 24 Maroussi Greece |
|
Registered owner |
Noumea Shipping Ltd. 80, Broad Street 1000 Monrovia Republic of Liberia |
|
Latest data adjustment |
06 May 2021 |
