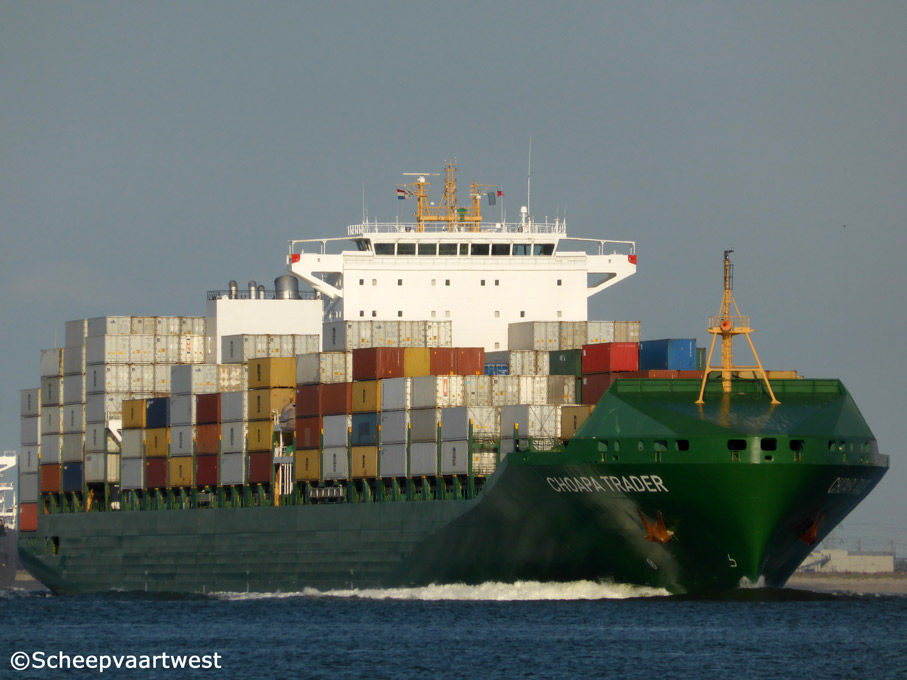

Westerschelde 03 May 2014 |
|
Name |
CHOAPA TRADER |
|
Previous names |
2009 Launch as: Medondra 2009 - 04.2014 CSAV Rio De Janeiro |
|
Type |
Cellular Panamax container vessel |
|
IMO-number |
9407885 |
|
Call sign |
A8ST8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
52.726 t |
|
DWT |
Summer: 65.549 t |
|
NT |
32.613 t |
|
Number of 20ft containers |
5.303 |
|
Number of 40ft containers |
1.025 |
|
Container capacity 14t |
3.360 |
|
Reefer capacity |
1.200 |
|
Length |
294,13 m overall 283,19 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
13,61 m |
|
Forecastle |
141,60 m |
|
Bridge |
119,13 m |
|
Freeboard |
3.837 mm |
|
Depth |
21,60 m moulded |
|
Speed |
24,10 knots |
|
Built |
2009 |
|
Keel laid |
30.06.2008 |
|
Launch date |
28.11.2008 |
|
Date of completion |
04.06.2009 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co., Ltd. |
|
Yard number |
515 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 7RT-flex96C - 2 stroke 7 cylinder 960 x 2.500 mm diesel engine - 40.040 kW at 102,0 rpm Year of manufacture: 2008 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon ,642-370 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless), aft at 102,0 rpm |
|
Boilers |
Steam boiler, oil fired - 9,0 bar Heating surface: 115,0 m² Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 570,0 m² Year of manufacture: 2008 Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. Machinery Industry Park Qingdao Development Area Qingdao, Shandong People's Republic of China |
|
Electric installations |
1x Plant 6.600 V - 5.130 kVA 3x Plants each 6.600 V - 5.760 kVA 1x Plant 2.200 V - 3.223 kVA 1x Plant 450 V - 475 kW 1x Plant 24 V - 12 Ah 2x Plants each 24 V - 90 Ah 2x Plants each 24 V - 100 Ah 1x Plant 24 V - 180 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 3.223 kVA |
|
Generators |
3x MAN-B&W 9L32/40 main diesel generators each 5.760 kVA 1x MAN-B&W 8L32/40 main diesel generator 5.130 kVA |
|
Emergency generator |
1x Diesel generatorsets 475 kVA |
|
Batteries |
2x Batteries for Aa 1x Battery for UPS navigation 180 Ah 2x Batteries for other purpose each 100 Ah 2x Batteries for start emergency engine each 90 Ah 1x Battery for automation 12 A |
|
Compressed air receivers |
2x Receivers each 14.000 litres - 30,0 bar 1x Receiver 710 litres - 30,0 bar 1x Receiver 160 litres - 10,0 bar 1x Receiver 2.500 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Manager |
Hermann Buss GmbH & Cie KG Hafenstr. 2 26789 Leer Federal Republic of Germany |
|
Operator |
GB Shipping & Chartering Palmaille 71 22767 Hamburg Germany |
|
Registered owner |
MS "CHOAPA TRADER" Schiffahrts UG (haftungsbeschränkt) & Co. KG Hafenstr. 2 26789 Leer Federal Republic of Germany |
|
Latest data adjustment |
29 May 2014 |
